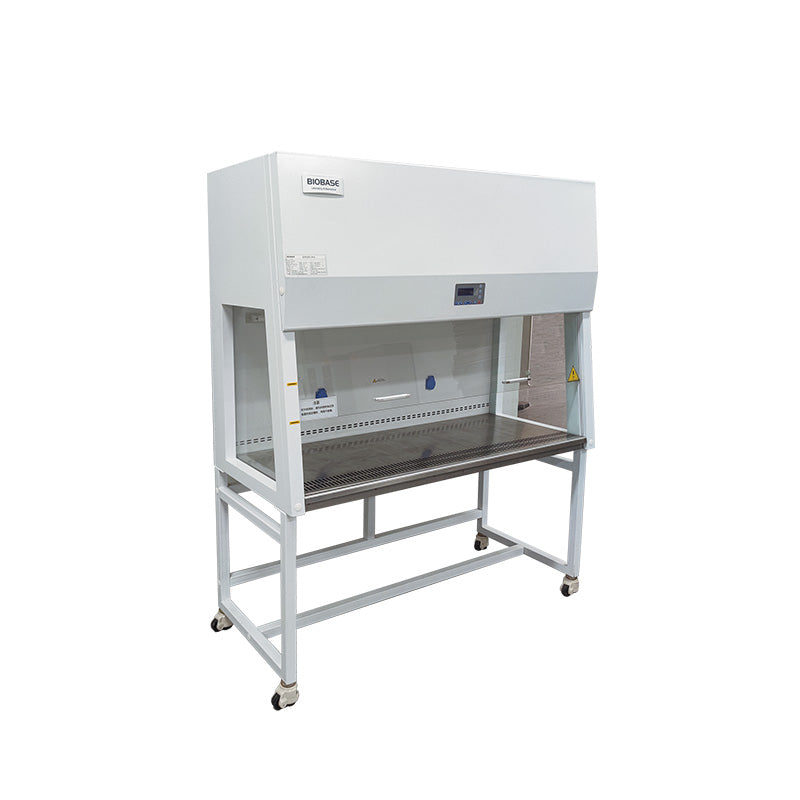

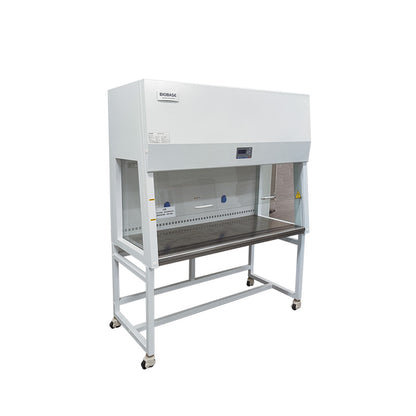

Laminar Flow Cabinet BBS-V1100-XF BBS-V1500-XF BBS-V1800-XF
ADVANTAGE：
1. Air return type structure design: Part of the clean air is recycled to reduce the operator's blowing feeling and prolong the life of the filter.
2. Product safety: the number of colonies is less than or equal to 0.5CFU/30min.
3. Filtration efficiency: For 0.3 u m particles, the filtration efficiency can reach 99.995%.
TECHNICAL PARAMETERS:
|
Model
|
BBS-V1100-XF
|
BBS-V1500-XF
|
BBS-V1800-XF
|
|
Airflow Pattern
|
Vertical laminar flow, return air
|
|
Applicable number of people
|
1
|
2
|
3
|
|
External Size(W*D*H)
|
1100*710*1850mm
|
1500*710*1850mm
|
1800*710*1850mm
|
|
Instrument Size(W*D*H)
|
1000*575*625mm
|
1400*575*625mm
|
1700*575*625mm
|
|
Work Surface Height
|
750mm
|
|
Max Opening
|
400mm
|
|
Air Velocity
|
0.3～0.45m/s
|
|
Airflow Volume
|
750m³/h
|
|
Noise
|
≤65dB(A)
|
|
LED Lamp
|
12W*1
|
16W*1
|
16W*1
|
|
UV Lamp
|
20W*1
|
40W*1
|
40W*1
|
|
Power Supply
|
220V±10%，50/60Hz; 110V±10%，60Hz
|
|
Consumption
|
700W
|
750W
|
900W
|
|
HEPA Filter
|
1 pcs
|
|
Gross Weight
|
190kg
|
240kg
|
280kg
|
|
Package Size
|
1240*980*1350mm
|
1640*980*1350mm
|
1940*980*1350mm
|
Air return type structure design: Part of the clean air is recycled to reduce the operator’s blowing feeling and prolong the life of the filter.
