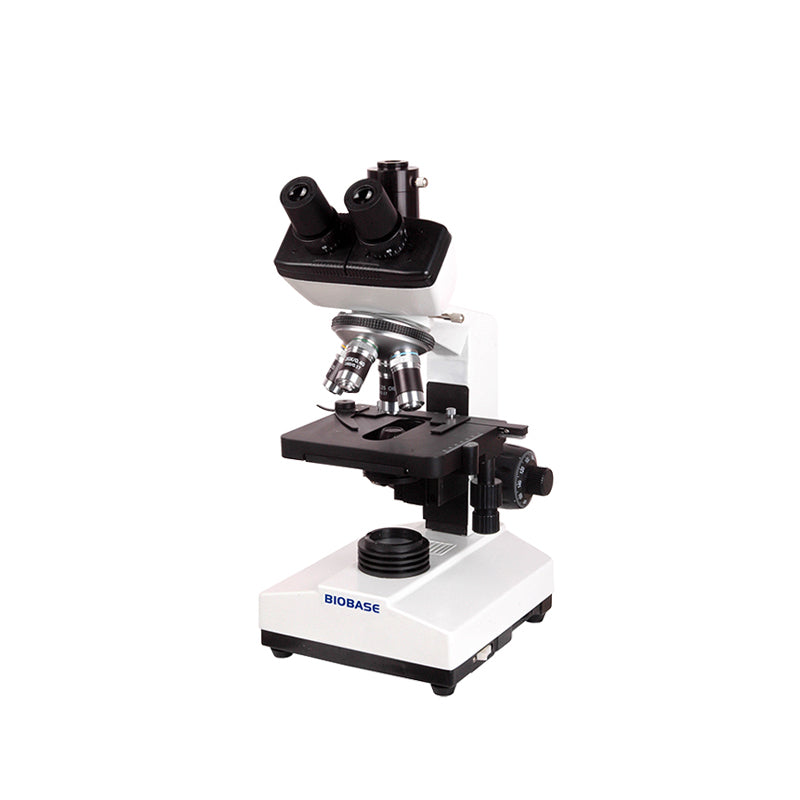

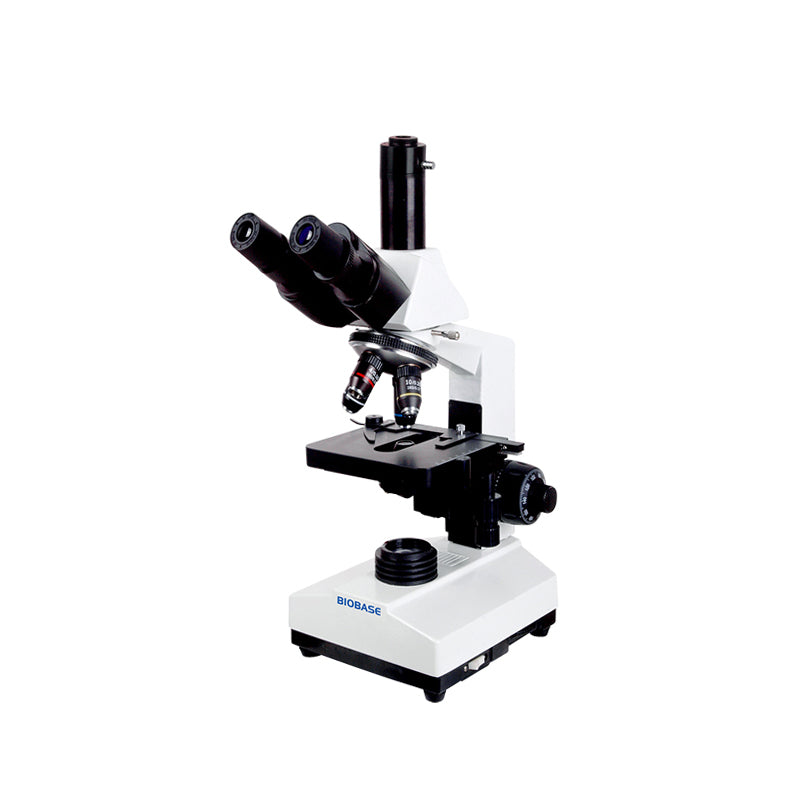

Laboratory Biological Microscope XSB-Series
Model:
|
Specification |
Model
XSB-301P
|
XSB-301B |
XSB-102B |
XSB-301A |
| Viewing Head |
Compensation Free Binocular Head inclined at 30° |
|
|
|
|
| Compensation Free Trinocular Head inclined at 30° |
√ |
√ |
|
|
| Sliding Binocular Head inclined at 45° |
|
|
√ |
|
| Sliding Trinocular Head inclined at 45° |
|
|
|
√ |
| Nosepiece |
Ball Beating Quadruple Nosepiece |
√ |
√ |
√ |
√ |
| Eyepiece |
Wide Field Plane-scope Eyepiece：
WF10X18mm
|
√ |
√ |
√ |
√ |
| Objective |
Plan Achromatic 4X, 10X, 40X(Spring)100X(Spring, Oil) |
√ |
|
|
|
| Achromatic 4X, 10X, 40X(Spring)100X(Spring, Oil) |
|
√ |
|
√ |
| Achromatic 10X, 20X, 40X(Spring)100X(Spring, Oil) |
|
|
√ |
|
| Stage |
Double Layer Mechanical Stage
135*140mm
|
√ |
√ |
√ |
√ |
| Condenser |
Abbe NA1.25 condenser with Iris
Diaphragm & filter, rack&pinion adjustment
|
√ |
√ |
√ |
√ |
| Illumination |
Build-in Illumination, Halogen lamp 6V/20W. Power Suooly 220V |
√ |
√ |
√ |
√ |
| Power Supply |
AC110/220V±10%, 50/60HZ |
√ |
√ |
√ |
√ |
| Optional
Accessories
|
Dark field condenser, Phase contrast kit,Constant temperature platform |
√ |
√ |
√ |
√ |
| Package |
Each set in styrofoam, to carton for safety |
√ |
√ |
√ |
√ |
| Package |
Carton with foam |
√ |
√ |
√ |
√ |
| Package Size |
240*340*400mm |
√ |
√ |
√ |
√ |
| Gross Weight |
7kg |
√ |
√ |
√ |
√ |
Laboratory Biological Microscope
