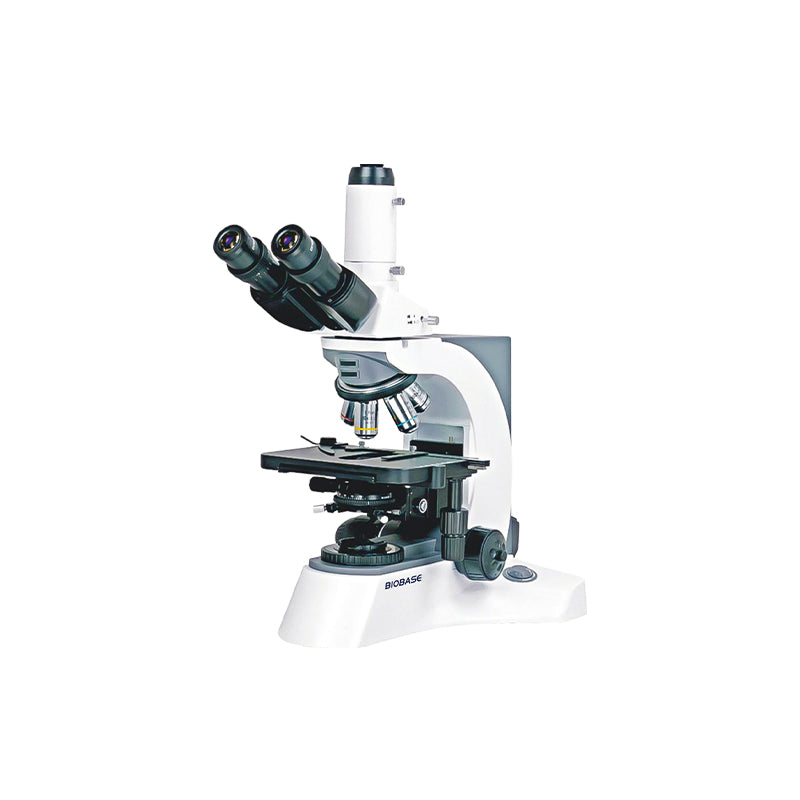

Laboratory Biological Microscope DM-800M
Technical Parameters
|
Model
|
DM-800M
|
|
Optical System
|
Infinite optical system
|
●
|
|
Viewing Head
|
Seidentopf type trinocular head, inclined at 30℃,interpupillary 48-75mm
|
●
|
|
Tiltable binocular/trinocular head
|
○
|
|
Eyepiece
|
Extra wide field eyepiece EW10×/22, eyepiece tube diameter 30mm
|
●
|
|
Nosepiece
|
Backward quintuple nosepiece
|
●
|
|
Objective
|
Infinite plan achromatic objective 4×, 10×, 40×, 100×
|
●
|
|
Infinite plan achromatic objective 20×
|
○
|
|
Condenser
|
Swing condenser NA 0.9.0.25
|
●
|
|
Focusing
|
Coaxial coarse and fine adjustment, fine division 0.001mm
|
●
|
|
Stage
|
Double layers mechanical stage 185*142mm, moving range 75*55mm
|
●
|
|
Kohler illumination
|
External illumination, aspherical collector, halogen lamp 6V/30W
|
●
|
|
External illumination, aspherical collector, halogen lamp 24V/100W
|
○
|
|
Optional Accessories
|
Photo attachment, C mount 1×, C mount 0.5×, polarization attachment, turret phase contrast kit, dark field condenser(dry), dark field condenser(oil), epi-fluorescent attachment, temperature controlling stage
|
○
|
|
Power Supply
|
220V/110V 50/60Hz
|
|
Packing Size
|
430*384*606mm
|
|
Gross Weight
|
14kg
|
Remark: ● is standard; ○ is optional
