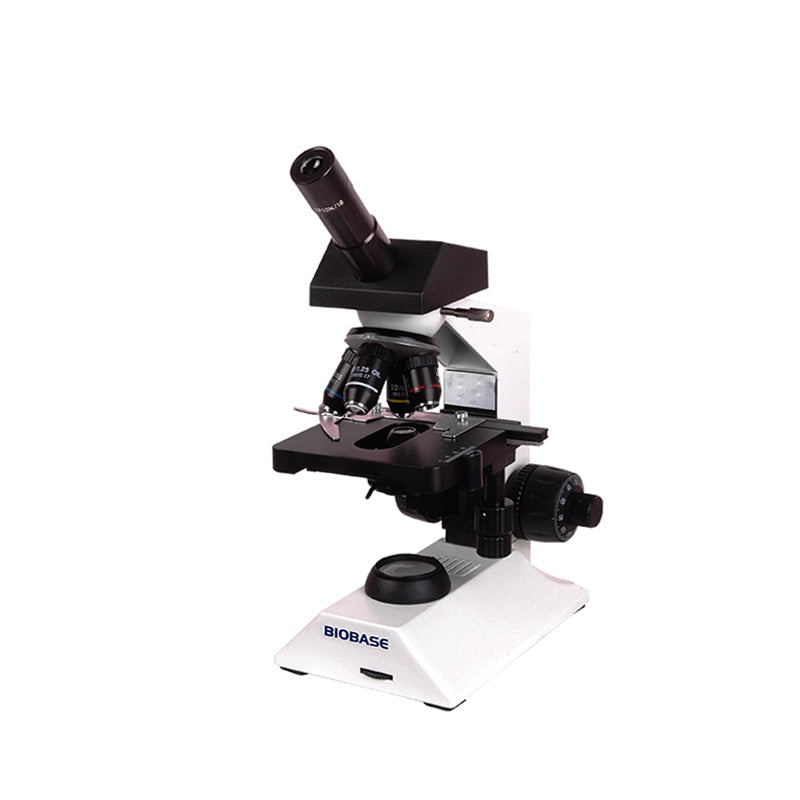

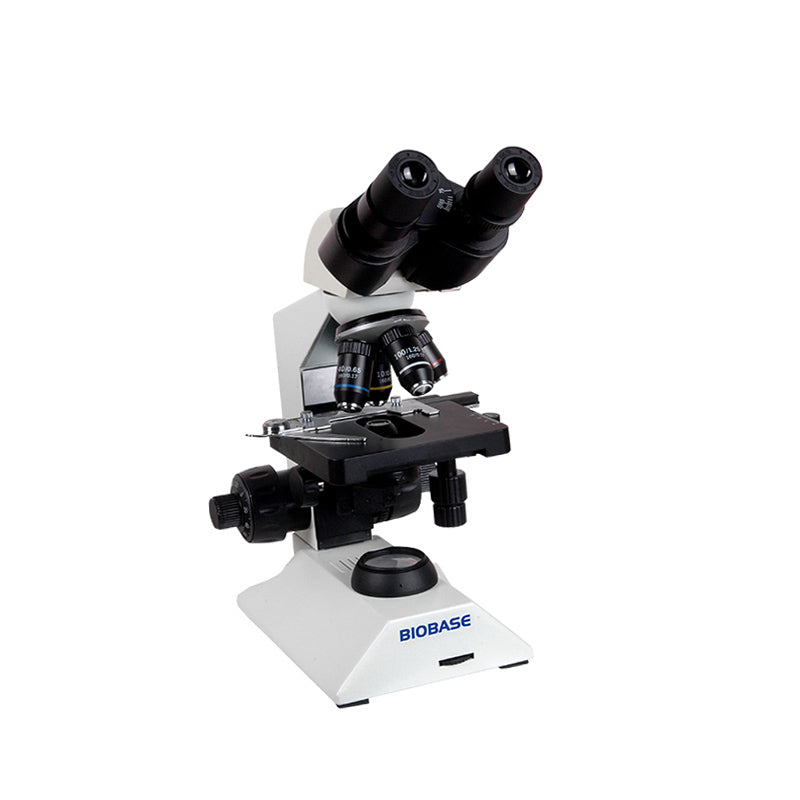

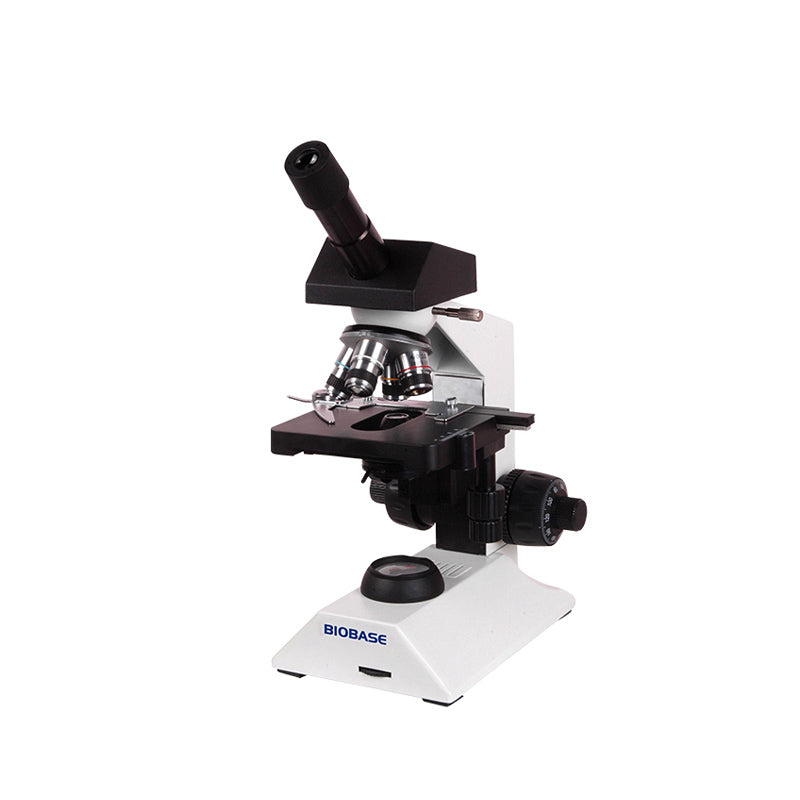

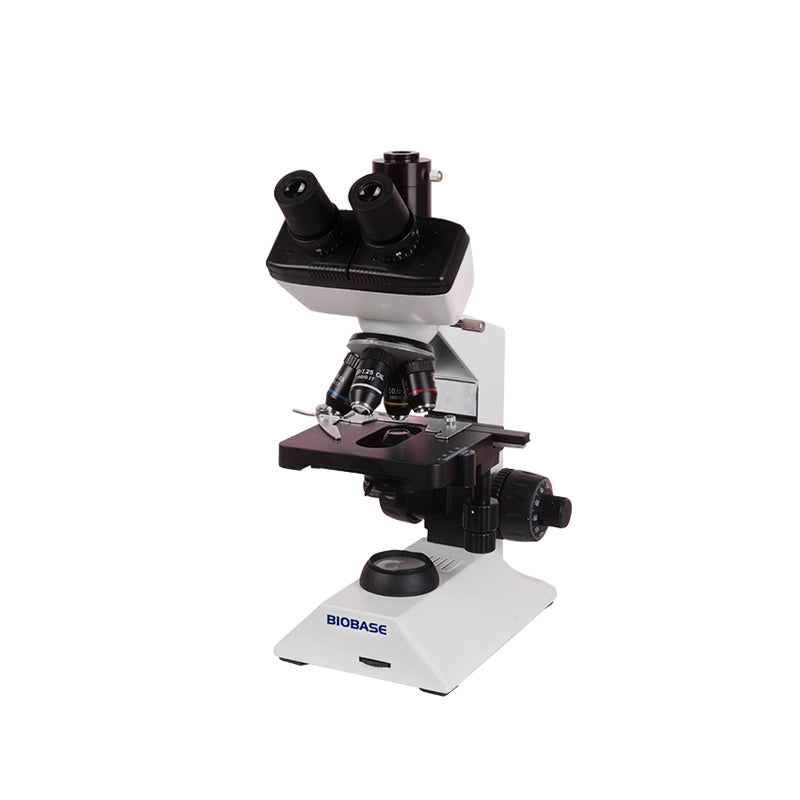

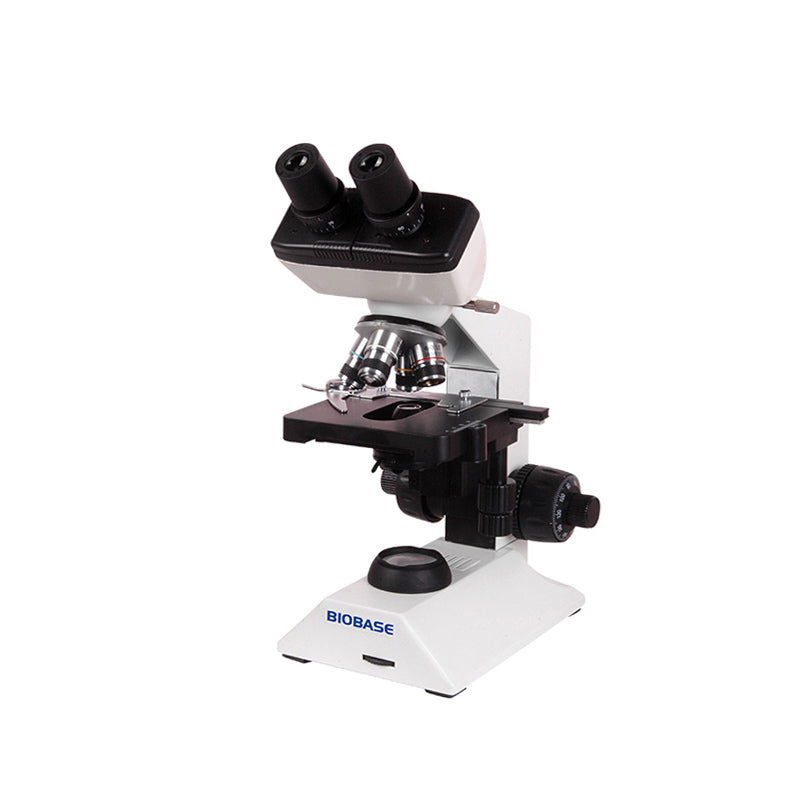

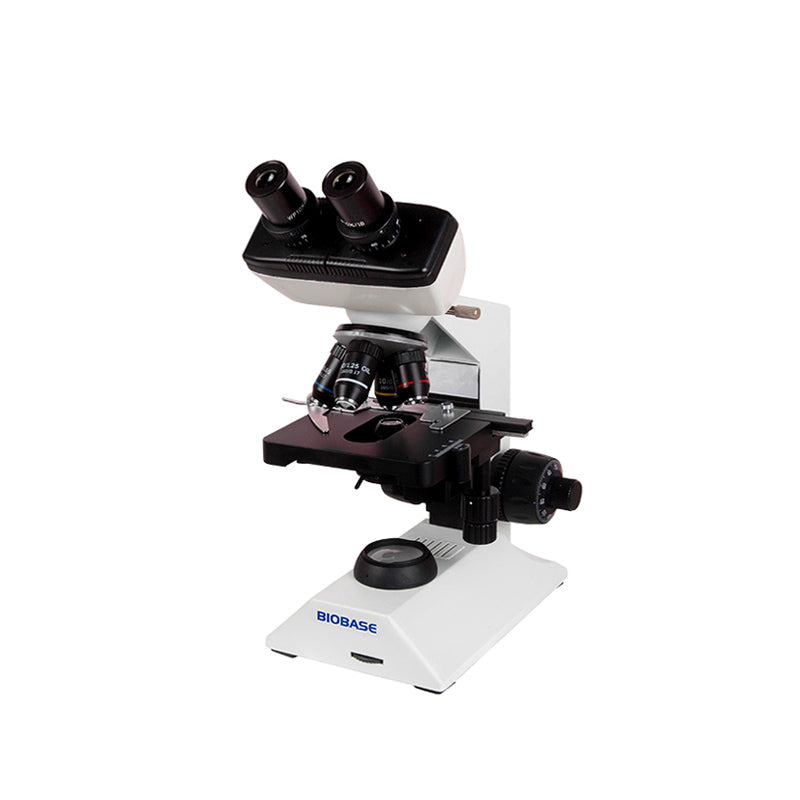

Laboratory Biological Microscope BX-Series
Model:
|
Specification |
Model |
| BX-101A |
BX-101B |
BX-102A |
BX-102B |
BX-102C |
BX-103C |
| Viewing
Head
|
Monocular Head inclined at 45° |
√ |
|
|
|
|
|
| Dual Observation 45°, -90° inclined and vertical 360° rotatable |
|
√ |
|
|
|
|
| Sliding Binocular Head inclined at 45° |
|
|
√ |
√ |
|
|
| Compensation Free Binocular Head inclined at 30° |
|
|
|
|
√ |
|
| Sliding Free Trinocular Head inclined at 45° |
|
|
|
|
|
√ |
| Nosepiece |
Ball Beating Quadruple Nosepiece |
√ |
√ |
√ |
√ |
√ |
√ |
| Eyepiece |
Wide Field Plane-scope Eyepiece：
WF10X18mm
|
√ |
√ |
√ |
√ |
√ |
√ |
| Objective |
Achromatic 4X, 10X,
40X(Spring)100X(Spring, Oil)
|
√ |
√ |
√ |
√ |
√ |
√ |
| Stage |
Double Layer Mechanical Stage 115*125mm moving range 30*50mm |
√ |
√ |
√ |
√ |
√ |
√ |
| Condenser |
Abbe NA1.25 condenser with Iris
Diaphragm & filter, rack&pinion adjustable
|
√ |
√ |
√ |
√ |
√ |
√ |
| Illumination |
Build-in Illumination, Halogen lamp
6V/20W .Power Suooly 220V,3W LED
|
√ |
√ |
√ |
√ |
√ |
√ |
| Power Supply |
AC110/220V±10%, 50/60HZ |
√ |
√ |
√ |
√ |
√ |
√ |
| Package |
Cartoon with foam |
√ |
√ |
√ |
√ |
√ |
√ |
| Package Size |
230*360*460mm |
√ |
√ |
√ |
√ |
√ |
√ |
| Gross Weight |
6kg |
√ |
√ |
√ |
√ |
√ |
√ |
Laboratory Biological Microscope BX-Series
Note: 110V/220V for LED lamp, 220V only for Halogen lamp
Optional: 2.0, 3.0 or 5.0 Megapixel, CMOS electronic eyepiece(only for Trinocular microscope)
