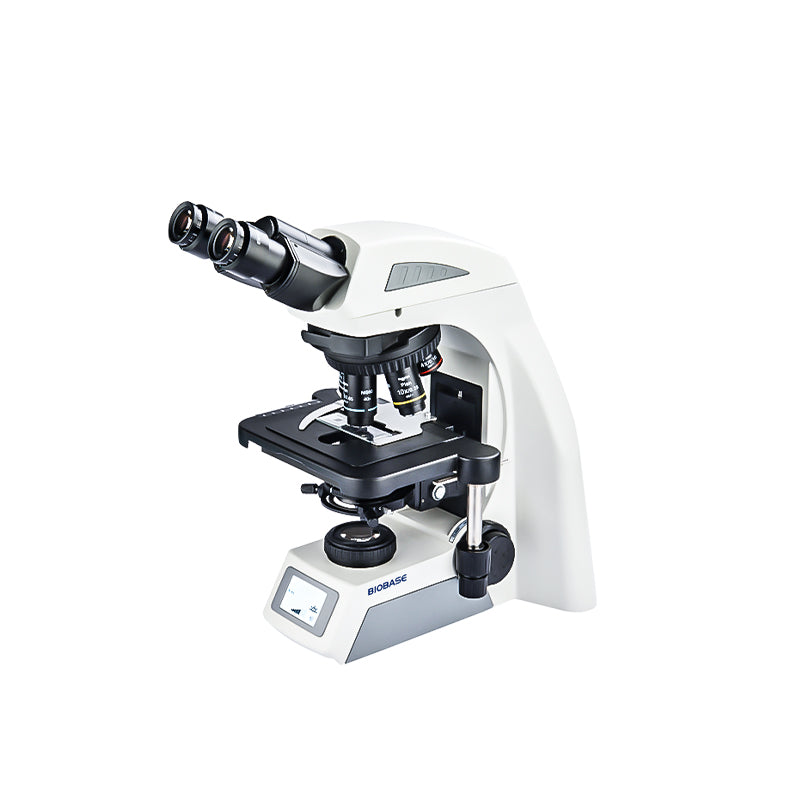

Laboratory Biological Microscope BMR-620
Technical Parameters
|
Model
|
BMR-620
|
|
Optical System
|
Infinite optical system
|
●
|
|
Viewing Head
|
Seidentopf type binocular head, inclined at 30℃,interpupillary 47-78mm
|
●
|
|
Seidentopf type trinocular head, inclined at 30℃,interpupillary 47-78mm
|
○
|
|
Eyepiece
|
10×/22
|
●
|
|
Nosepiece
|
Backward quintuple nosepiece
|
●
|
|
Objective
|
Infinite plan objective NIS60: 4×, 10×, 40×, 100×
|
●
|
|
Condenser
|
Inserted condenser NA 1.25
|
●
|
|
Focusing
|
Coaxial coarse and fine adjustment, coaxial coarse 37.7mm per round, fine adjustment 0.2mm per round
|
●
|
|
Stage
|
Double layers mechanical stage 230*150mm, moving range 78*54mm
|
●
|
|
Illumination
|
External illumination, aspherical collector, halogen lamp 6V/30W
|
●
|
|
Filter
|
Green filter
|
●
|
|
Optional Accessories
|
Photo attachment, C mount 1×, C mount 0.5×, polarization attachment, epi-fluorescent attachment
|
○
|
|
Power Supply
|
220V/110V 50/60Hz
|
|
Packing Size
|
480*330*600mm
|
|
Gross Weight
|
13kg
|
Remark: ● is standard; ○ is optional
Laboratory Biological Microscope BMR-620
