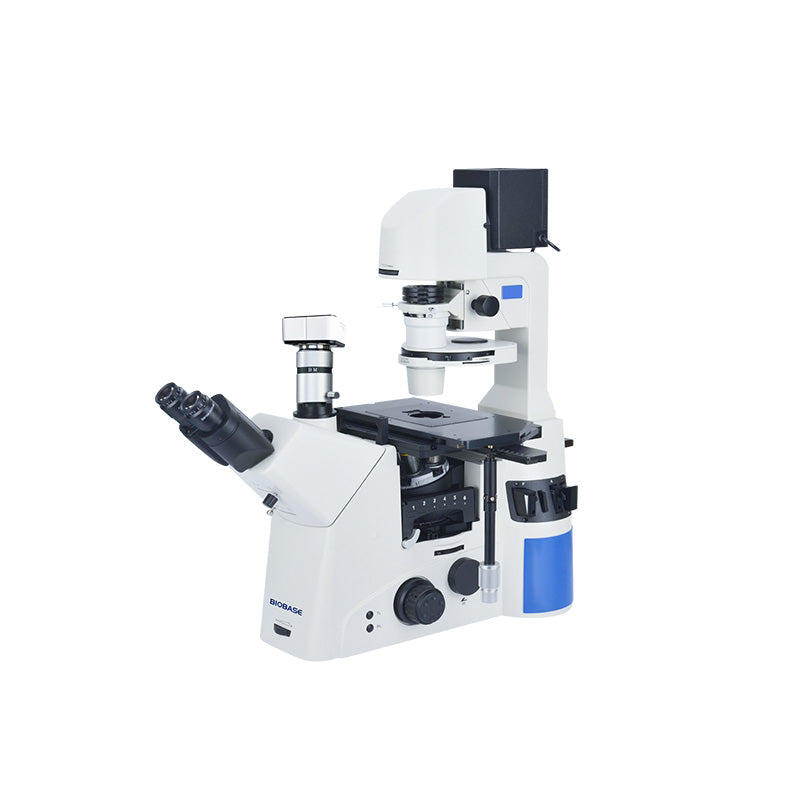

Inverted Biological Microscope BMI-39XD
Technical Parameters:
| Model |
BMI-39XD |
| Optical System |
Infinite optical system |
| View Head |
Compensation Free Trinocular Head, Inclined at 45°, 360° rotatable, interpupillary 47~78mm |
| Eyepiece |
P10X/22mm, P16X/20mm |
| Infinite Plan Phase Achromatic Objective |
4X N.A=0.30 WD=7.40mm |
| 20X N.A=0.45 WD=7.50~8.80mm |
| 40X N.A=0.60 WD=3.00~4.40mm |
| Focusing |
Coaxial Coarse ＆ Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Stage |
Three Layers Mechanical Stage 340*230mm, Moving Range 130*85mm |
| Condenser |
ELWD condenser NA0.3, LWD 26mm |
| Illumination |
Transmission illumination： Halogen lamp, 12V/100W, Kohler illumination
Epi-illumination： 100w fluorescent mercury lamp
|
| Filter |
Blue, yellow, green |
| Power Supply |
AC85~265V， 50/60Hz |
| Package Size |
820*880*570mm |
| Gross Weight |
32kg |
The inverted biological microscope was developed for observations of living cells (cultured cells). Cells targeted for observation are cultured in a Carrel flask or Petri dish.
