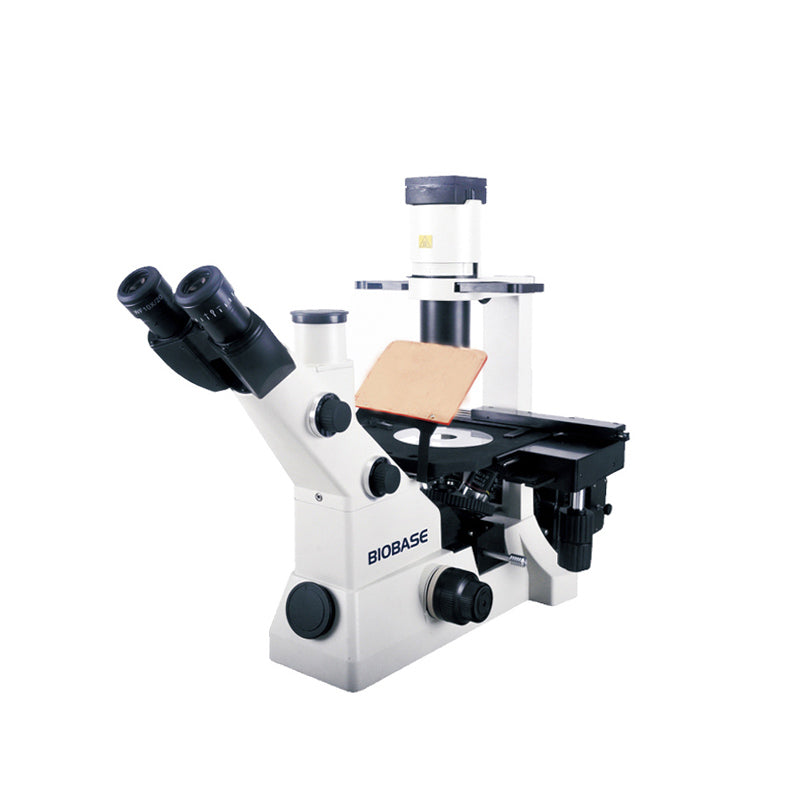

Inverted Biological Microscope
Model:
| Model |
BMI-202 |
| Optical System |
Infinite optical system |
√ |
| Viewing Head |
Seidentopf trinocular viewing head, Inclined at 45°, 360° rotatable, Interpupillary 48-75mm |
√ |
| Eyepiece |
wide field eyepiece WF10x/22, eyepiece tube diameter 30mm |
√ |
| Wide field eyepiece WF15x/16 |
● |
| Wide field eyepiece WF20x/12 |
● |
| Objective |
LWD infinite plan achromatic objective 4x/0.10 WD=22 |
√ |
| LWD infinite plan achromatic phase objective |
Wx/0.25 WD=6 |
√ |
| 20x/0.4 WD=3.1 |
√ |
| 40x/0.55 WD=2.2 |
√ |
| High-level phase contrast objective |
10x/0.25 WD=6 |
● |
| 20x/0.4 WD=3.1 |
● |
| 40x/0.55 WD=2.2 |
● |
| Lamp house adjustment objective |
√ |
| Nosepiece |
Backward quintuple nosepiece |
√ |
| Condenser |
ELWD condenser NA0.3, LWD72mm(without condenser 150mm) |
√ |
| Centering Telescope |
Centering telescope(q)30mm) |
√ |
| Phase Annulus |
10x, 20x, 40x phase annulus plate(adjustable) |
√ |
| Stage |
Plain stage 230x170 |
√ |
| Glasse insert |
√ |
| Attachable mechanical stage, X, Y coaxial control, moving rang 80x120mm |
√ |
| Auxiliary stage |
√ |
| Terasaki holder |
√
√
|
| Petri dish holderφ38 |
| Petri dish holderφ54 |
√ |
| Focusing System |
Coaxial coarse and fine adjustment, fine division 0.002mm, moving range up 4.5mm down 4.5mm |
√ |
| Illumination |
6V, 30W halogen lamp, brightness adjustable |
√ |
| Filter |
Blue, green and ground glass, diameter 45mm |
√ |
| Power Supply |
110-220V, 50/60HZ |
√ |
| Accessories |
Photo attachment |
● |
| C Mount 0.4x |
● |
| Epi-Fluorescent attachment |
● |
| Package Size |
630*350*620mm |
√ |
| Gross Weight |
15kg |
√ |
Inverted Biological Microscope
