| Model |

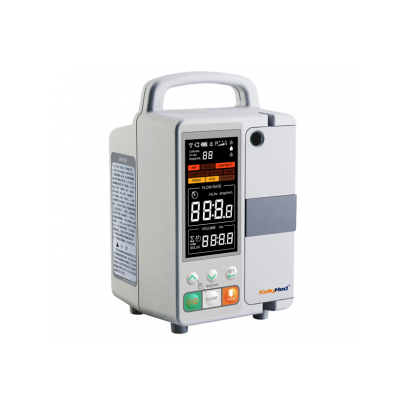

KL-8052N |
| Pumping Mechanism |
Curvilinear peristaltic |
| IV Set |
Compatible with IV sets of any standard |
| Flow Rate |
0.1-1500 ml/h (in 0.1 ml/h increments) |
| Purge, Bolus |
100-1500 ml/h (in 1 ml/h increments)Purge when pump stops, bolus when pump starts |
| Bolus volume |
1-20 ml (in 1 ml increments) |
| Accuracy |
±3% |
| VTBI |
1-9999 ml |
| Infusion Mode |
ml/h, drop/min, time-based |
| KVO Rate |
0.1-5 ml/h (in 0.1 ml/h increments) |
| Alarms |
Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm |
| Additional Features |
Real-time infused volume / bolus rate / bolus volume / KVO rate,automatic power switching, mute button, purge, bolus, system memory, key locker, change flow rate without stopping the pump |
| Occlusion Sensitivity |
High, medium, low |
| Air-in-line Detection |
Ultrasonic detector |
| Power Supply, AC |
230 V, 50 Hz, 20 VA |
| Battery |
9.6±1.6 V, rechargeable |
| Battery Life |
5 hours at 30 ml/h |
| Working Temperature |
10-40℃ |
| Relative Humidity |
30-75% |
| Atmospheric Pressure |
700-1060 hpa |
| Size |
174*126*215 mm |
| Weight |
2.5 kg |
| Safety Classification |
Class Ⅰ, type CF |
