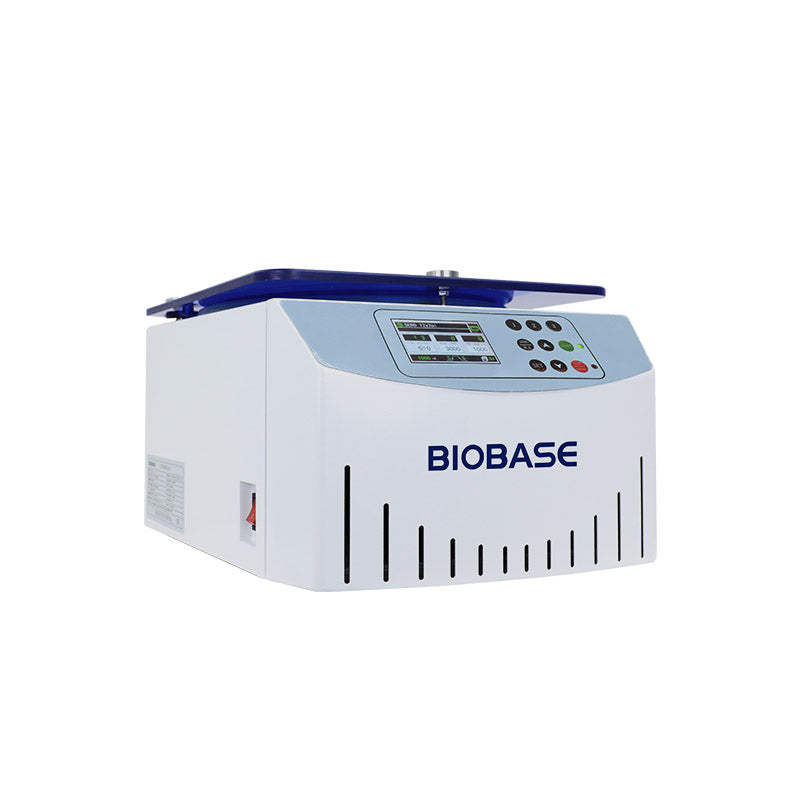

Immune Blood Centrifuge BKC-TB4G
Features:
* SERO rotor and HLA rotor centrifugation procedures were standardized.
* Set one-key quick switch function for SERO rotor and HLA rotor.
* Large torque brushless DC motor, maintenance-free, dust-free, fast lifting speed.
* Microcomputer processor precise control, TFT color LCD real-time display of all operating parameters.
* 3 sets of working procedures, can be quickly invoked and changed.
Technical Parameters:
| Model |
BKC-TB4G |
| Max. Speed |
4000r/min |
| Max. RCF |
2000×g |
| Max. Capacity |
12*7ml |
| Timer Range |
1s~999min |
| Noise |
≤55dB(A) |
| Consumption |
200W |
| Power Supply |
Standard: AC220V, 50/60Hz
Optional: AC110V, 50/60Hz
|
| External Size(L*W*H) |
475*350*254mm |
| Package Size(L*W*H) |
510*460*310mm |
| Net Weight |
17kg |
| Gross Weight |
20kg |
Rotor:
| Rotor |
Max. Speed |
Capacity |
Max. RCF |
Use |
| Red blood cell cleaning rotor / SERO |
3000rpm |
12*7/5ml
(Φ10-13*65-100mm)
|
1000×g |
Blood type determination, blood cell agglutination |
| Cross-fit experiment, anti-globulin experiment |
| Blood cell cleaning, serum and plasma extraction |
| Lymphocyte
cleaning rotor
/HLA
|
4000rpm |
12*(0.2-1.5)ml |
2000×g |
Isolation: lymphocyte cultured cells |
| Platelet |
| Lymphocyte cleaning |
