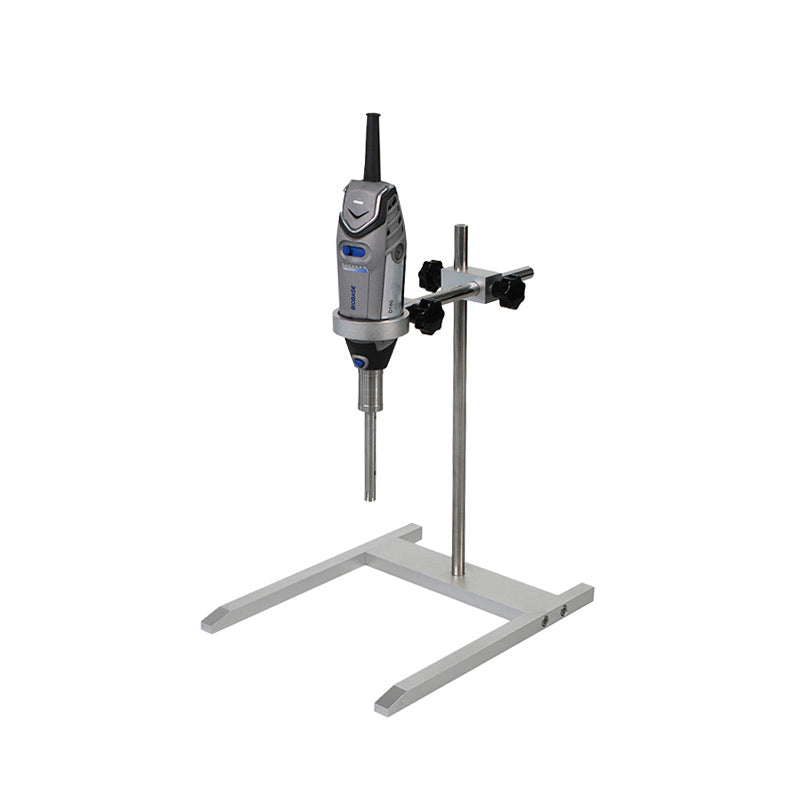

Homogenizer D-160
Features:
* Lightweight design, handheld and can be operated with one hand.
* The application of different dispersing heads is suitable for liquid samples of 0.1-250ml.
* High-quality 316L stainless steel dispersing head, corrosion-resistant, high-temperature sterilization.
* The dispersing head is easy to disassemble and clean; high-speed and high-efficiency motor.
* The speed is adjustable in 10 gears, and the speed range: 8000-32000rpm.

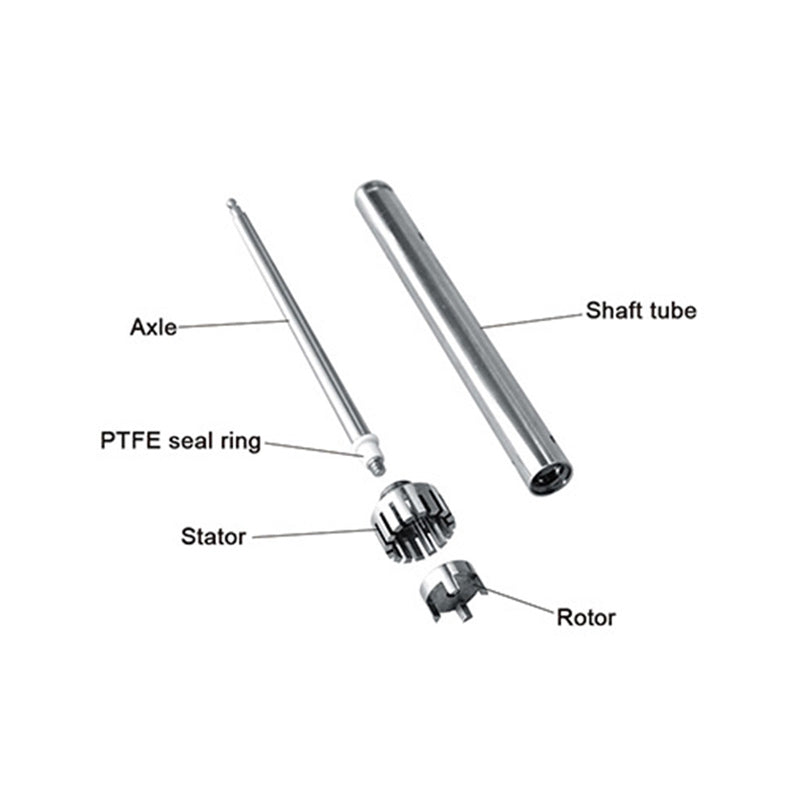

Optional Accessories:
| Cat. No. |
Combination Stator + Rotor |
Model |
Working Volume (ml) |
Diameter of Stator |
Diameter of Rotor |
Min. / Max. Immersion Depth |
Application |
| 18900113 |
DS-160/5 |
D-160 |
0.1 〜50 |
5mm |
3mm |
7/50mm |
Small amounts of solid-liquid mixtures |
| 18900114 |
DS-160/10 |
1-250 |
10mm |
6mm |
10/120mm |
Technical Parameters:
| Model |
D-160 |
| Item No. |
8034111000 |
| Recommended Configuration |
Package 1: D160 drive, H370 Stand, DS-160/5 shaft, volumes from 0.1-50ml
Package 2: D160 drive, H370 Stand, DS-160/10 shaft, volumes from 1-250ml
|
| Speed Range |
8000-32000rpm |
| Max. Circum. Speed |
6.3-14m/s |
| Speed Control |
10 stage |
| Working Volume (H2O) |
0.1-50ml (Dispersing shaft DS-160/5)
1-250ml (Dispersing shaft DS-160/10)
|
| Max. Viscosity |
5000mPas |
| Material of Dispersing Shaft |
SS316& PTFE seal ring |
| Noise |
≤72dB |
| Ambient Temp. |
0-40°C |
| Relative Humidity |
85%RH |
| Protection Type |
IP20 |
| Consumption |
160W |
| Motor Type |
AC carbon brush motor |
| Power Supply |
AC110/220V±10%, 50/60Hz(Customizable) |
| Standard Accessory |
Base stand + DS-160/5 dispersing shaft
Or
Base stand + DS-160/10 dispersing shaft
|
| External Size(W*D*H) |
45*55*190 mm |
| Package Size (W*D*H) |
470*240*250mm |
| Gross Weight |
4kg |
Application:
D-160 can be used in bio-pharmaceuticals, genetic research, tissue destruction, fragmentation, cytoplasmization, pathological analysis, nano-material dispersion, polymerization, ink coatings, fine chemicals, pesticides, prospecting, environmental protection, energy and other fields.
