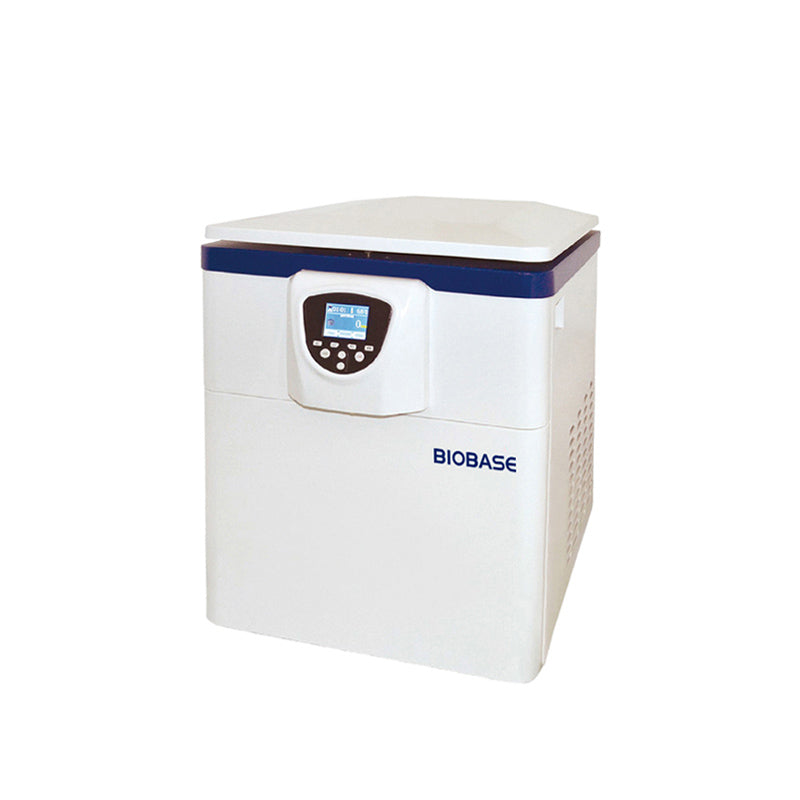

High Speed Refrigerated Centrifuge BKC-VH20RII
Features:
1.LCD display, indicating setting parameters and actual parameters at the same time.
2.Brushless motor: Controlled by micro chip's dsPIC30F series SCM and driven by FAIR CHILD'S FSBB30CH series driver module.
3.Safety: over-speed and over-temperature protection, imbalance detection shock absorber to keep motor running smoothly.
4.Mute mechatronics motor door lock.
5.10 levels speed-up and speed-down control.
6.Over 20 selectable procedures and freely self-defining modes.
Models:
|
Model
|
BKC-VH20RII
|
|
Max. Capacity
|
4*750ml
|
|
Max. Speed
|
20600rpm
|
|
Max. RCF
|
29400xg
|
|
Standard Rotor
|
12*1.5/2.0ml
|
|
Speed Precision
|
±50rpm
|
|
Refrigeration System
|
CFC-free (R404a)
|
|
Temp. Range
|
-20°C~40°C
|
|
Temp. Precision
|
±1°C
|
|
Control and Driven System
|
Frequency motor, micro control, direct driver
|
|
Timing Range
|
0~99h59min
|
|
Noise
|
≤65dB
|
|
Identify Rotor
|
Automatic
|
|
Consumption
|
2.0KW
|
|
Power Supply
|
AC110/220V, 50/60HZ
|
|
External Size(W*D*H) mm
|
710*560*770mm
|
|
Package Size(W*D*H) mm
|
885*705*1195
|
|
Net/Gross Weight(kg)
|
160/218
|
Rotor:
|
Rotor
|
Capacity
|
Speed(rpm)
|
RCF(xg)
|
Rotor
|
Capacity
|
Speed(rpm)
|
RCF(xg)
|
|
Angle Rotor
|
12*1.5/2.0ml
|
20600
|
29400
|
Angle Rotor
|
8*15ml
|
12000
|
14800
|
|
Swing Rotor
|
4*750ml/4*500ml
|
4000
|
3500
|
6*50ml
|
12000
|
13800
|
|
Available adaptor:
4*250/300ml,4*8*15ml, 4*12*10ml,4*3*50ml, 4*19*5ml (vacuum tube)
|
4000
|
3580
|
8*50ml
|
10000
|
10500
|
|
4*100ml
|
10000
|
10500
|
|
6*100ml
|
11000
|
14520
|
|
Angle Rotor
|
24*1.5/2.0ml
|
14000
|
18180
|
6*250ml
|
8000
|
9200
|
|
12*5/10ml
|
14000
|
18800
|
Microplate
|
2*2*96 well
|
4000
|
2360
|
|
4*2*96 well
|
4000
|
2910
|
