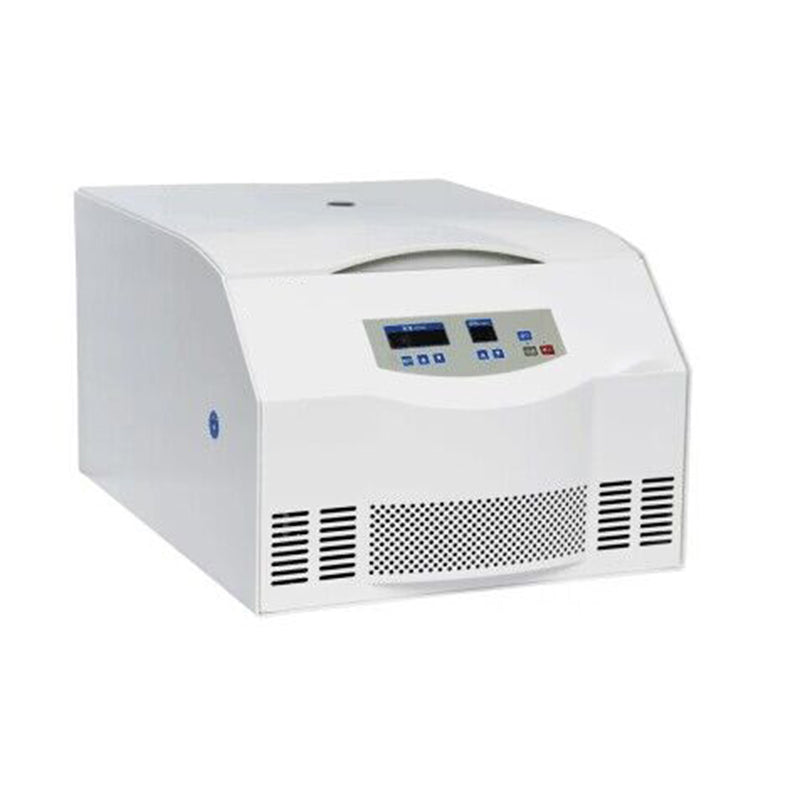

High Speed and Low Speed Universal Centrifuge BKC-TH18Y BKC-TH18RY
BKC-TH18Y Technical Parameters:
| Max Speed |
21000r/min |
Max Volume |
4×800ml |
| Timer |
0~99min |
Dimension (LxWx Hmm) |
685×500×385mm |
| Speed Accuracy |
±20r/min |
Max RCF |
30910×g |
| Noise |
≤65dBA |
Net Weight |
70KG |
| Power supply |
AC 220V/110V,50HZ 10A |
|
|
BKC-TH18RY Technical Parameters:
| Max Speed |
21000r/min |
Max Volume |
4×800ml |
| Timel |
1~99h59min |
Dimension (LxWx Hmm) |
720×710×410mm |
| Speed Accuracy |
±20r/min |
Max RCF |
30910×g |
| Noise |
≤58dBA |
Net Weight |
130KG |
| Power supply |
AC 220V/110V,50HZ 15A |
Temperature Range |
-20℃~40℃ |
| Temperature Accuracy |
±1℃ |
|
|
Matched Rotor for BKC-TH18Y/BKC-TH18RY
| Order No |
Rotor Type |
Rotor Max Speed(r/min) |
Volume(ml) |
Max.RCF(×g) |
| G18-1 |
Swing Rotor |
4000 |
4×800ml |
3450 |
| G18-2 |
Microplate rotor |
4000 |
4×4×96 well |
2940 |
| G18-3 |
Microplate roto |
4000 |
2×4×96 well |
3210 |
| G18-4 |
Microplate rotor |
4000 |
2×3×48 well |
2300 |
| G18-5 |
Swing rotor |
4000 |
4×30×5ml vacuum tube |
2840 |
| G18-6 |
4000 |
4×30×7ml vacuum tube |
3140 |
| G18-7 |
4000 |
4×18×10mlvacuum tube |
3140 |
| G18-8 |
Swing Rotor |
4000 |
Fat bottle |
3830 |
| G18-9 |
Fixed Rotor |
16000 |
4×8PCR |
15760 |
| G18-10 |
Fixed Rotor |
15000 |
6×8PCR |
21420 |
| G18-11 |
Fixed Rotor |
16000 |
8×8PCR |
17480 |
| G18-12 |
Fixed Rotor |
15000 |
12×8PCR |
22930 |
| G18-13 |
Fixed Rotor |
15000 |
40×0.5ml |
22920 |
| G18-14 |
Fixed Rotor |
21000 |
12×1.5ml |
30910 |
| G18-15 |
Fixed Rotor |
16000 |
24×1.5ml |
23440 |
| G18-16 |
Fixed Rotor |
14000 |
30×1.5ml |
20800 |
| G18-17 |
Fixed Rotor |
13000 |
48×1.5ml |
17930 |
| G18-18 |
Fixed Rotor |
16000 |
16×5ml |
22020 |
| G18-19 |
Fixed Rotor |
16000 |
6×10ml |
21500 |
| G18-20 |
Fixed Rotor |
15000 |
12×10ml |
22680 |
| G18-21 |
Fixed Rotor |
13000 |
16×10ml |
19490 |
| G18-22 |
Fixed Rotor |
13000 |
8×15ml |
17790 |
| G18-23 |
Fixed Rotor |
11000 |
12×15ml |
14330 |
| G18-24 |
Fixed Rotor |
5000 |
24×15ml |
3500 |
| G18-25 |
Fixed Rotor |
5000 |
30×15ml |
3830 |
| G18-26 |
Eixed Rotor |
14000 |
6×30ml |
19060 |
| G18-27 |
Cived Roto |
13000 |
6×50ml(conical) |
18840 |
| G18-28 |
Fixed Rotor |
13000 |
6×50ml(round) |
18730 |
| G18-29 |
Fixed Rotor |
5000 |
12×50m |
3860 |
| G18-30 |
Fixed Rotor |
4000 |
24×50ml |
2970 |
| G18-31 |
Fixed Rotor |
13000 |
4×85ml |
18940 |
| G18-32 |
Fixed Rotor |
12000 |
4×100m |
14850 |
| G18-33 |
Fixed Rotor |
10000 |
6×100ml |
11380 |
| G18-34 |
Fixed Rotor |
4000 |
12×100ml |
2970 |
| G18-35 |
Fixed Rotor |
12000 |
24 capillaries |
15800 |
| G18-36 |
Swing Rotor |
15000 |
4×5ml |
19920 |
| G18-37 |
Vertical rotor |
16000 |
16×5ml |
16450 |
| G18-38 |
Vertical rotor |
14000 |
8×30ml |
19750 |
