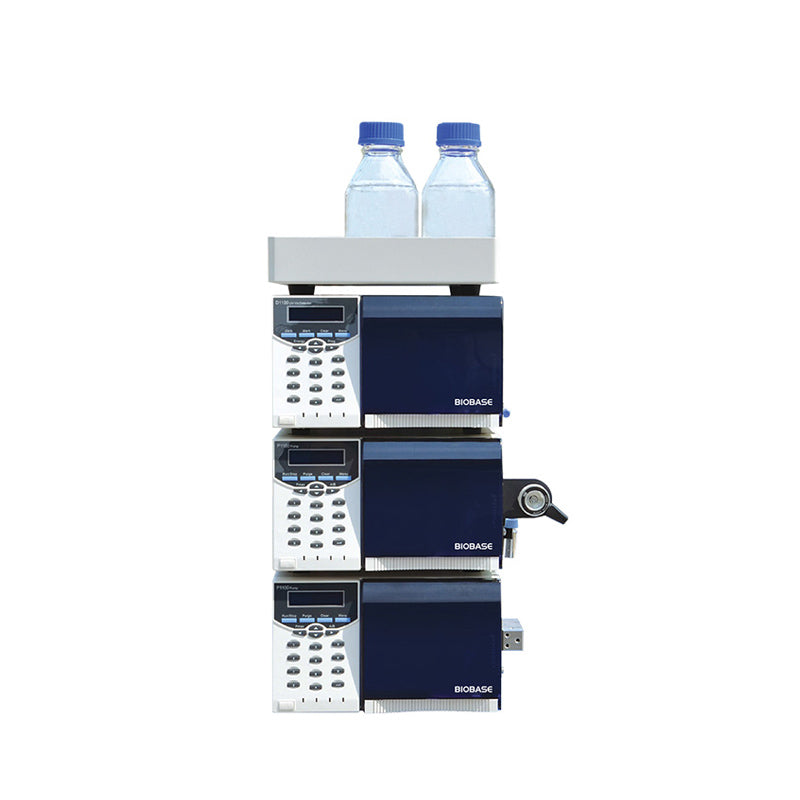

High Performance Liquid Chromatography Hplc System Machine Laboratory

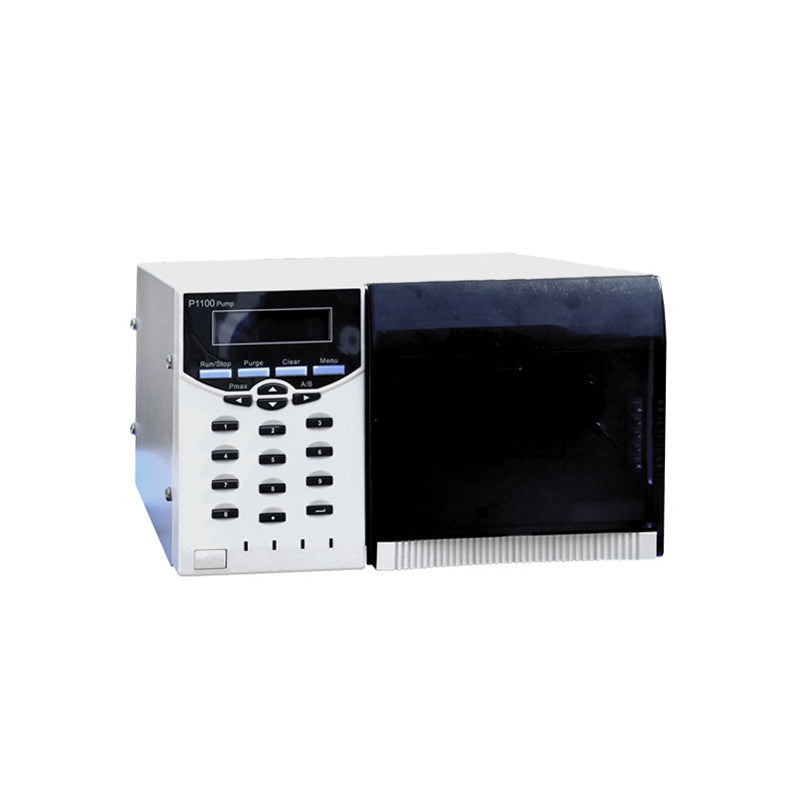

P1100 High Pressure Constant Flow Pump:
| Flow Rate |
0.001-10.000 mUmin (Step: 0.001 mL/min) |
| Accuracy |
<+0.3% |
| Precision |
<0.1% RSD |
| Max Pressure |
42 MPa (6000 psi) |
| Power |
AC 220 V, 50 Hz |
| Dimension/Weight |
420*260*160 mm (L* W* H*) /12 kg |

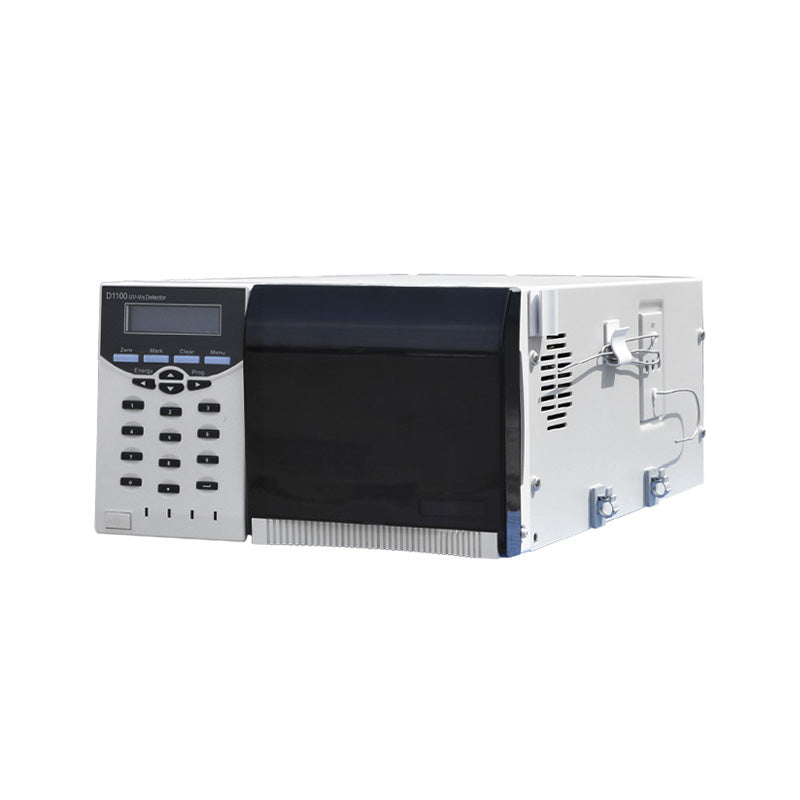

D1100 UV-Visible Detector:
| Linearity |
1.8 AU |
| Wavelength Range |
190~700 nm |
| Noise |
£±1.0*10-5 AU |
| Drift |
2.0*1 O'4 AU/h |
| Power |
AC220V ± 10%, 50 Hz, 100 W |
| DimensionsA/Veight |
420*260*160 mm (L* W* H*) /12 kg |

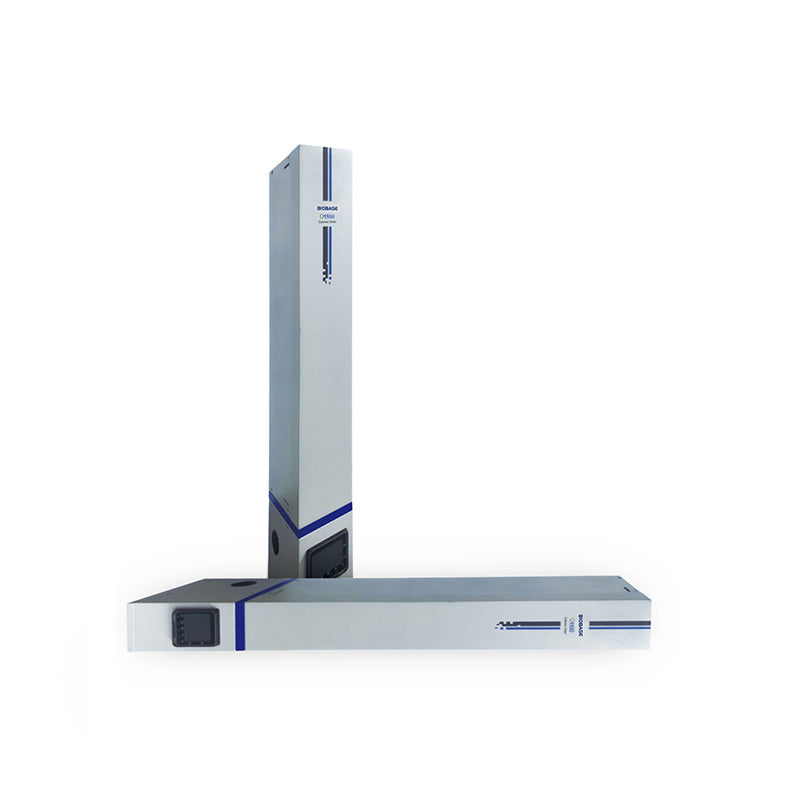

01100 Column Oven：
| Temperature range |
Ambient + 5 °C~99 °C |
| Accuracy |
± 0.1 °C |
| Precision |
M 0.1 °C |
| Power |
AC220 V ± 10%, 50 Hz, 150 W |
| Dimensions/Weight |
120*65 *500 mm (L* W* H*) /8.5 kg |
Elitapex HPLC Workstation
Characteristics:
* Simple operation and convenient use;
* Optimize the control protocol to make the communication between the workstation and the unit instrument module more smooth;
* Stable real-time feedback of the status and parameters of each unit module.
Technical Parameters:
| Model |
BK-LCI1100 |
BK-LCG1100 |
| Pump |
P1100*1 |
P1100*2 |
| Detector |
D1100*1 |
| Gradient Mixer |
/ |
TD-1-15*1 |
| Solvent Bottle Tray |
ST1100*1 |
| Sampler Injector |
Rheodyne 7725i*1 |
| Column |
Supersil ODS2 5pm ID4.6*200mm*1 |
| Workstation |
Elitapex*1 |
| Valve Mounting Frame |
VB1100*1 |
| System Kit |
Agressl 100*1 |
| Power Supply |
AC220V±10%» 50Hz |
| Optional Accessory |
500ml Solvent bottle*2, Column, Column Oven |
| Package Size(W*D*H) |
500*360*300mm*1; 580*400*280mm*2 |
500*360*300mm*1; 580*400*280mm*3 |
| Gross Weight |
38kg |
53kg |
