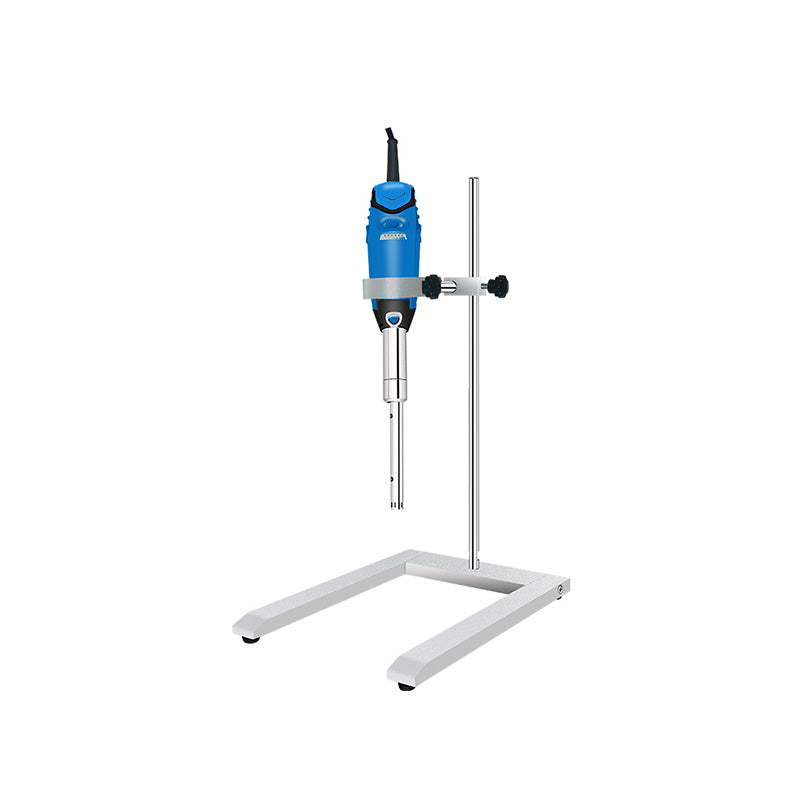

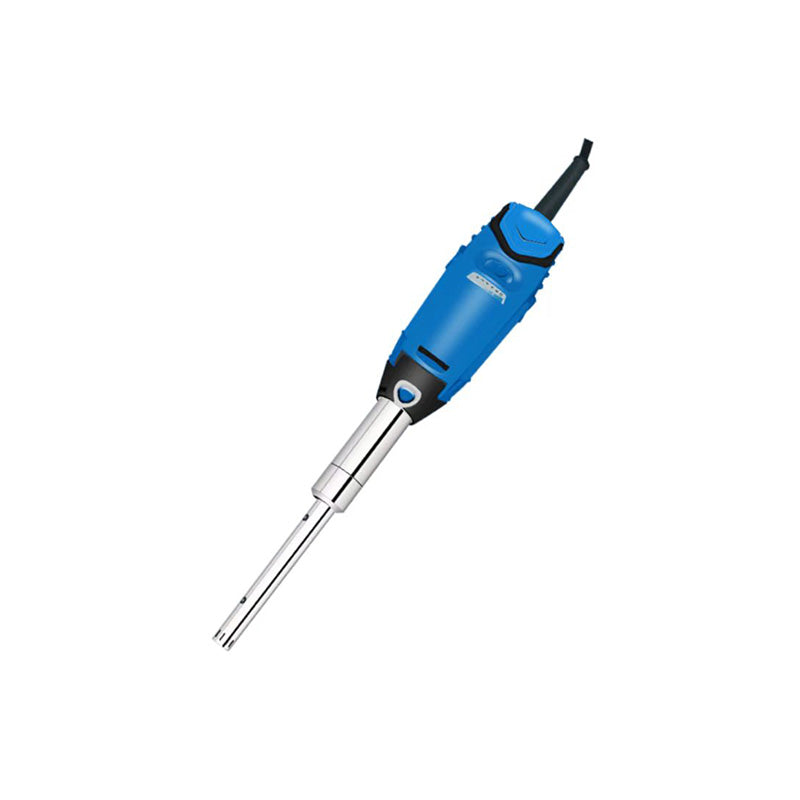

Handheld High-Speed Homogenizer BK-H6B
Feature:
1. One-handed control, user-friendly operation, super power, better experimental effect;
2. Double insulation protection to ensure safety;
3. All parts of the working head contacting the material are made of high-quality stainless steel, with good corrosion resistance;
4. The working head is connected with the drive motor by a coupling, which is easy and flexible to disassemble;
5. Stepless speed controller, convenient speed regulation and stable operation.
Technical Parameter:
| Model |
BK-H6B |
| Speed Range |
1000-35000r/min |
| Working Volume |
0.2-150ml (H2O) |
| Standard Dispersing Shaft |
10G |
| Max. Viscosity |
5000mpas |
| Consumption |
120W |
| Speed Control |
6 stage |
| Speed Controller |
Stepless speed controller, |
| Material Of Dispersing Shaft |
SS316L & PTFE |
| Process Type |
Micro batch processing |
| Power Supply |
220V 50/60HZ |
| Relative Humidity |
80% |
| Optional Stand |
Single column stand |
| Net Weight |
0.6kg |
| Package Size(W*D*H) |
470*335*200mm |
| Gross Weight |
6kg |
Dispersing Shaft:
| Dispersing Shaft |
Type |
Working Volume （ml） |
Viscosity （cp） |
Speed（m/s） |
Length (mm） |
Diameter(mm) |
| |
6G |
0.2-50 |
100 |
5 |
125 |
6 |
| |
8G |
10-60 |
500 |
8 |
150 |
8 |
| |
10G |
30-150 |
2000 |
10 |
185 |
10 |
| |
6G-ST |
0.2-50 |
100 |
5 |
125 |
6 |
| |
8G-ST |
10-60 |
500 |
8 |
150 |
8 |
| |
10G-ST |
30-150 |
2000 |
10 |
185 |
10 |
Introduction:
BK-H6B type is suitable for mixing, emulsification and homogenization of liquid and liquid; dispersion of liquid and solid powder; It can be used in pharmaceutical, biochemical, food, nanomaterials, coatings, adhesives, daily chemicals, printing and dyeing, petrochemicals, papermaking chemistry, polyurethane, inorganic salts, asphalt, silicone, pesticides, water treatment, heavy oil emulsification, Diesel emulsification, electronics, batteries and other industries are also ideal products for factories, scientific research institutions, colleges and universities, medical units, etc. for scientific research, product development, quality control and application in the production process.
