HAL S1030 – Advanced Mechanical Ventilator Management Skills Trainer

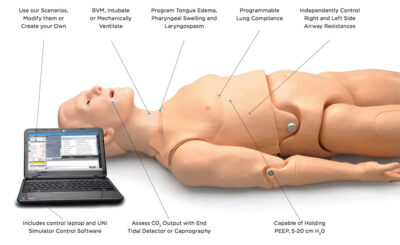

• Articulating Adult HAL® full size body
• Available in 3 skin tones
• Use our scenarios, modify them or create your own

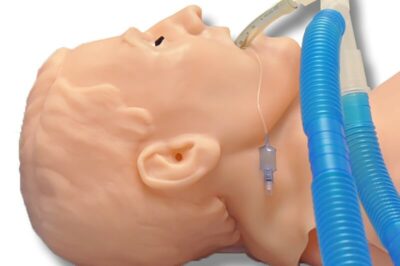

• Intubatable and programmable airway
• Programmable lung compliance
• Independently control right and left side airway resistances
• Use in conventional ventilation modes
• Capable of assisting the ventilator at variable respiratory rates
• Simulate life-threatening auto – PEEP and tension pneumothorax
• Exhales real and measurable CO2
• Assess CO2 output with end tidal detector or capnography
• Vary lung mechanics throughout your entire simulation exercise
• Receive real time feedback from real mechanical ventilator

• • BVM, intubate or mechanically ventilate
  • Program tongue edema, pharyngeal swelling and laryngospasm
  • Practice intubation and management of anatomic and pathologic conditions
  • Ten levels of static compliance, 15-50 ml/ cm H20
  • Independently controlled airway resistances
  • Capable of assisting the ventilator at variable respiratory rates
  • Capable of holding PEEP, 5-20 cm H20
  • CO2 exhalation
  • Specify inspiratory time and rate, inspiratory/expiratory ratio
  • Change lung resistance/compliance “on-the-fly” and see results on a real ventilator which are recorded on the laptop
  • Pre-programmed airway and lung pathologies including:

• Asthma
• Chronic Bronchitis
• CHF
• Emphysema
• Pneumothorax

• Set Inspiratory Effort Rate to trigger the ventilator
• Four anterior and four posterior lung sounds
• Use our pre-programmed pathologies or create your own

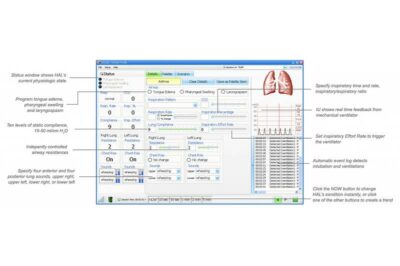

• Create scenarios using our proven, easy to use, HAL® software

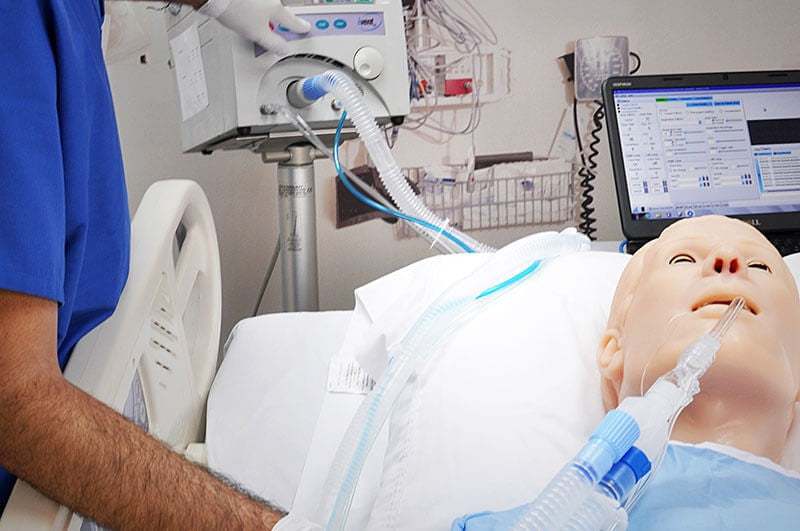

• Connect our simulator to your REAL ventilator, which can be set by volume or pressure

Includes

• Laptop with 15 inch display
• Carrying case with rollers
• Instruction Manual

Other

• USB connections
• International power supply 100-240 VAC
