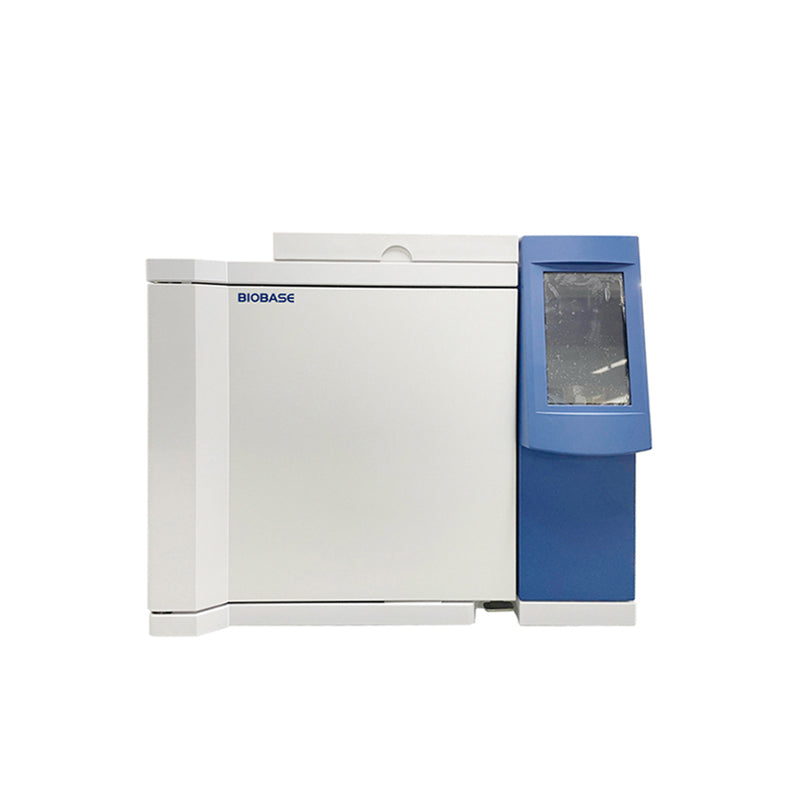

Gas Chromatograph BK-GC112A
Technical Parameters:
| Model |
BK-GC112A |
| Oven |
Capacity |
22L |
| Temp. Range |
RT+5°C~400°C |
| Temp. Accuracy |
±0.1 °C |
| Temp. Program |
9 step |
| Program Total Time |
9999.9 min |
| Max Temp. Heating Rate |
60°C/min |
| Sample Injector |
Temp. Range |
RT+7°C~420°C |
| Column or split injector can be installed |
| Carrier gas flow control type: Constant pressure mode |
| Max. Quantity |
3pcs |
| Pre Column Pressure Range |
0-400kpa |
| Pre Column Pressure Accuracy |
0.1 kpa |
| Flow Setting Range |
H2: 0-200ml/min |
| N2: 0-150ml/min |
| Detector |
Temp. Range |
RT+7°C~420°C |
| Hydrogen Flame Ionization Detector (FID) |
Logarithmic amplifier |
| High voltage switch control |
| Baseline signal display |
| Detection limit: ^3*1012g/s (Sample: n-hexadecane) |
| Baseline noise: <5*1014A |
| Baseline draft:《6*1 O ^A |
| Dynamic range: 107
|
| RSD: £3% |
| Thermal Conductivity Detector (TCD)(Optional) |
Sensitivity: 8000mv.ml/mg(Sample: n-hexadecane) |
| Baseline noise: <0.05mV |
| Baseline draft: <0.15mV/30min |
| Dynamic range: 105
|
| Power Supply |
AC220V±10%, 50Hz |
| Standard Accessory |
FID detector, Capillary injection system, Chromatography workstation software,RS232 port, LAN port |
| Optional Accessory |
TCD detector, Chromatographic column, Gas purifier |
| Package Size(W*D*H) |
735*725*835mm |
| Gross Weight |
80kg |
