Fume HoodBK-FH700

Fume HoodBK-FH700

Medical Grade

Professional environments.

Trusted Brands

Recognized suppliers.

Expert Support

Assistance available.

Reliable Delivery

Dependable shipping.

Product Description

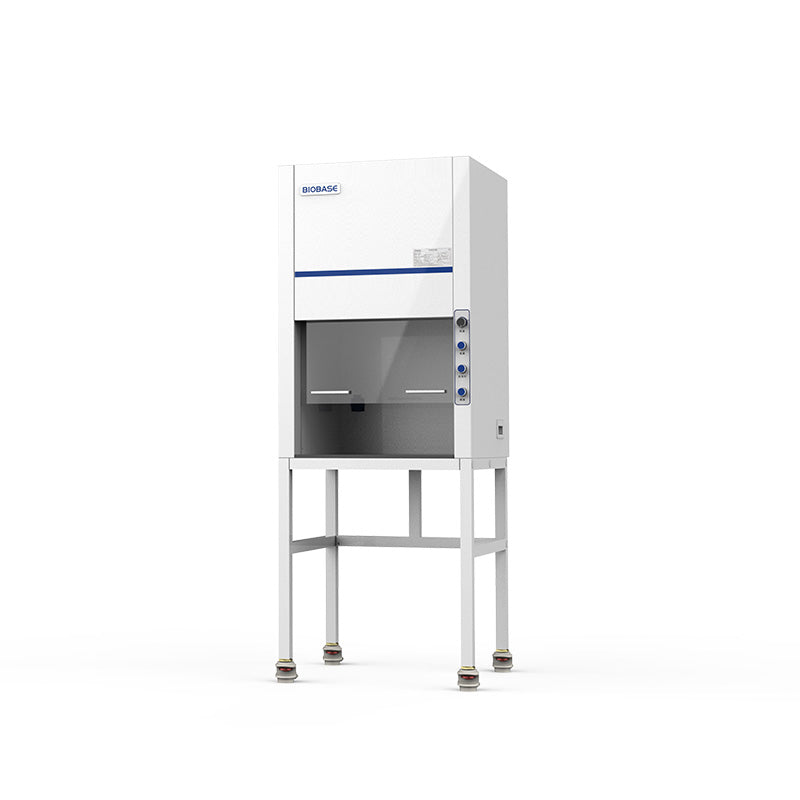

Fume HoodBK-FH700

Chemical fume hoodAdvantage

1, The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized;

2, Made of high quality cold rolled steel plate material, surface electrostatic spraying, with good finish;

3, The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, which is resistant to acid and alkali corrosion and can be disassembled for easy cleaning (integral type);

4, The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments;

5, Counterweight manual front window, height adjustable;

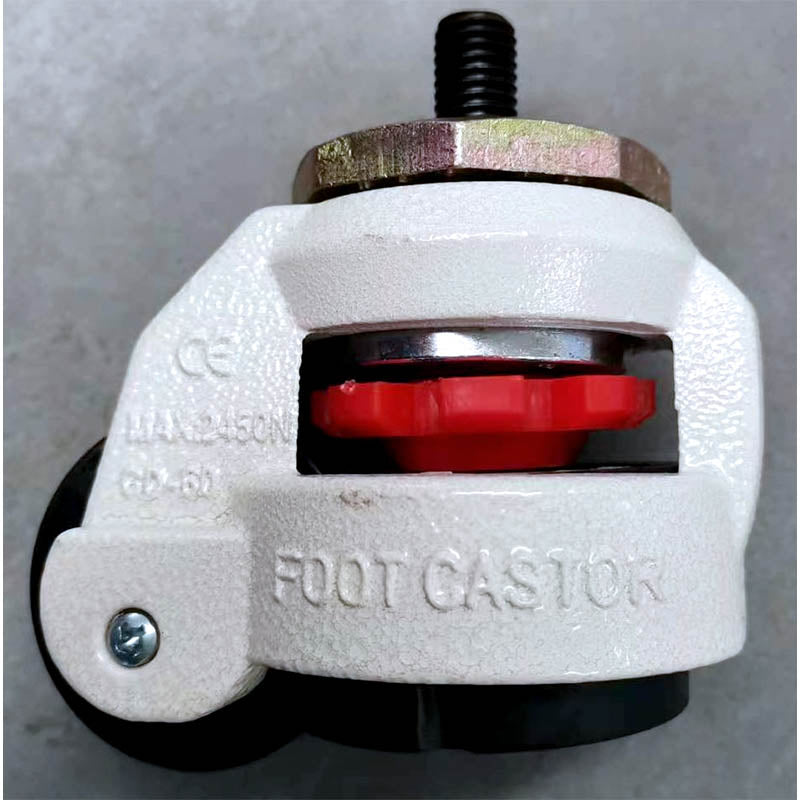

6, The base bracket and fuma castor integrated design, safely moved through the casters, also well fixed and levelled;

7, Equipped with PP centrifugal fan, large air volume, low noise, long service life, easy installation;

8, The fan can be stepless speed regulation, the function button is push-button switch, stable performance;

9, The side of the cabinet body is equipped with lifting handles to facilitate carrying.



Technical Parameters

Model BK-FH700
Number of  Users Single
Rated Power 95W (Not including socket load power,  load power cannot exceed 500W)
Exhaust Volume 1225 m³/h
Air Velocity 0.3m/s~0.8 m/s
Noise ≤65dB(A)
LED Lamp 4W
Max Opening 410mm(Integral Type)
Tabletop Height 810mm(Integral Type)

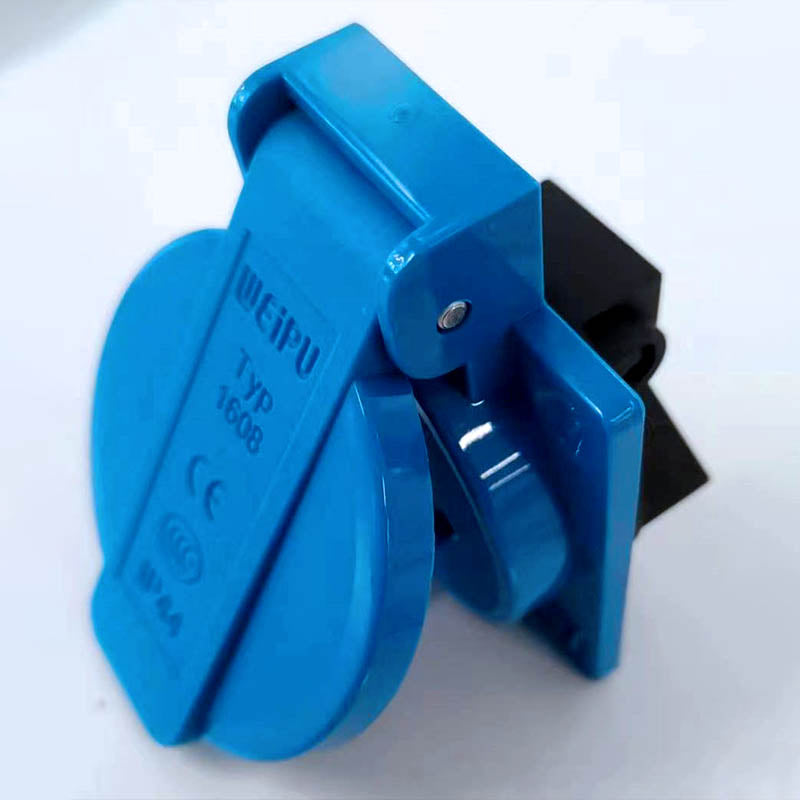

Standard Accessory LED Lamp, National standard three core splash proof socket,
Optional Accessory Base Stand, Bench physical and chemical board
Net Weight Desktop Type 60kg
Integral Type 80kg
Gross Weight Desktop Type 78kg
Integral Type 100kg

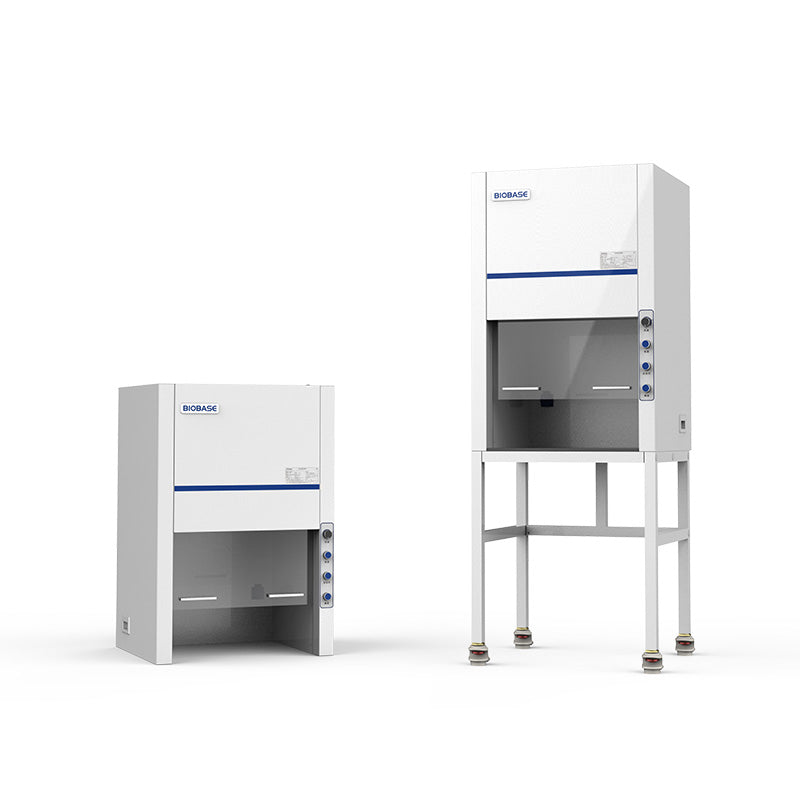

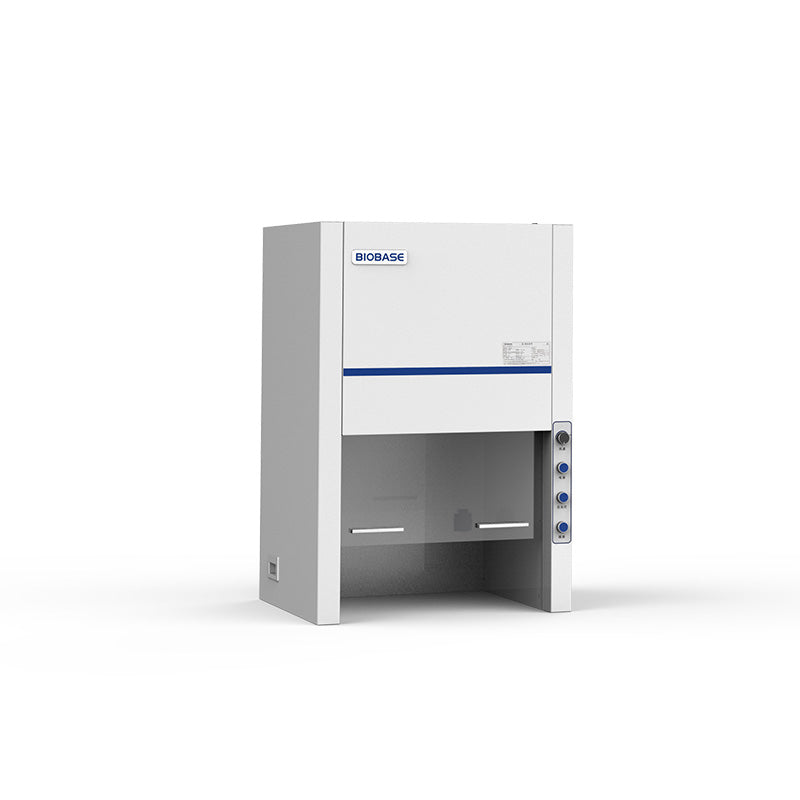

External Size(W*D*H) Desktop Type 700*650*1050mm
Integral Type 700*650*1850mm
Internal Size(W*D*H) 580*510*687mm
Package Size(W*D*H) Desktop Type 1010*850*1250mm
Integral Type 1010*850*1250mm





The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized
