Fume Hood BK-FH1200E

Fume Hood BK-FH1200E

Applications: Laboratories
Medical Grade

Professional environments.

Trusted Brands

Recognized suppliers.

Expert Support

Assistance available.

Reliable Delivery

Dependable shipping.

Product Description

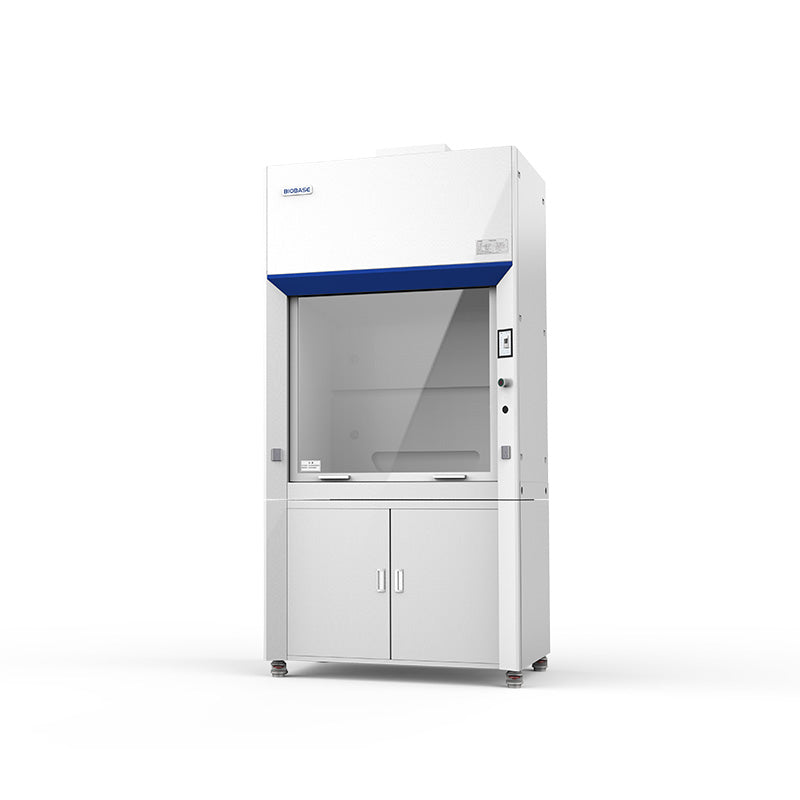

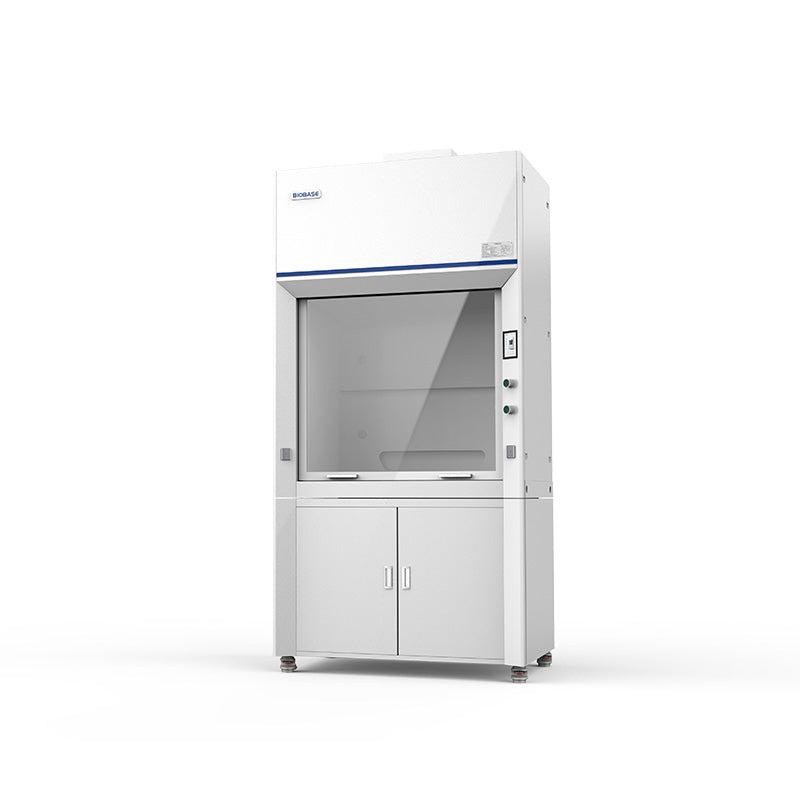

Fume Hood BK-FH1200E

Fume HoodAdvantage

1, The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized;

2, Made of high quality cold rolled steel plate material, with surface electrostatic spraying and good finish;

3, The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, corrosion resistance, easy disassembled for cleaning (integral type);

4, The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments;

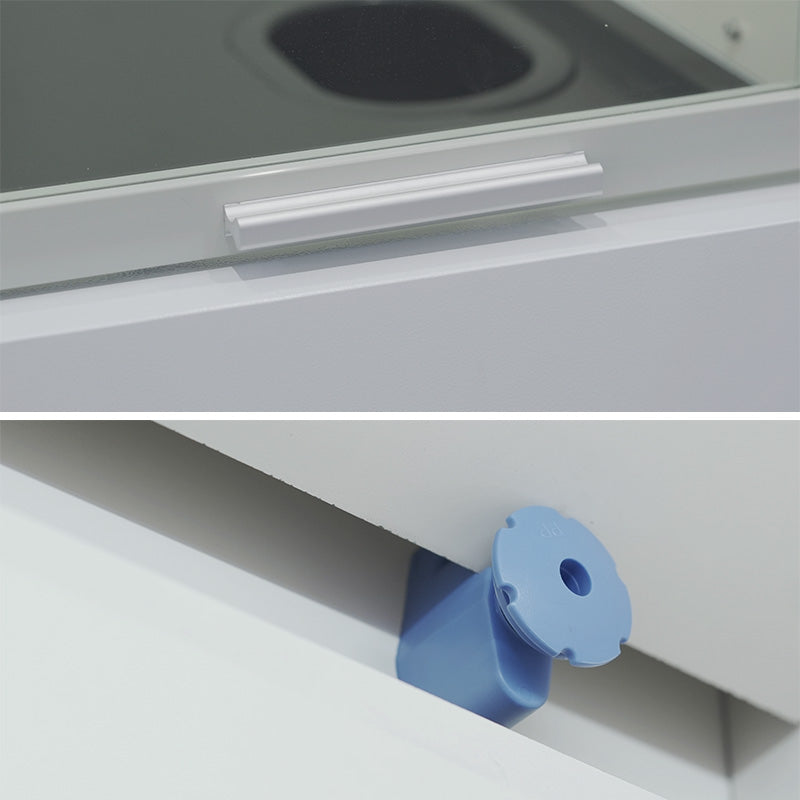

5, Counterweight manual front window, height adjustable;

6, Equipped with large capacity bottom cabinet to place laboratory supplies, surface electrostatic spraying, more beautiful and practical;

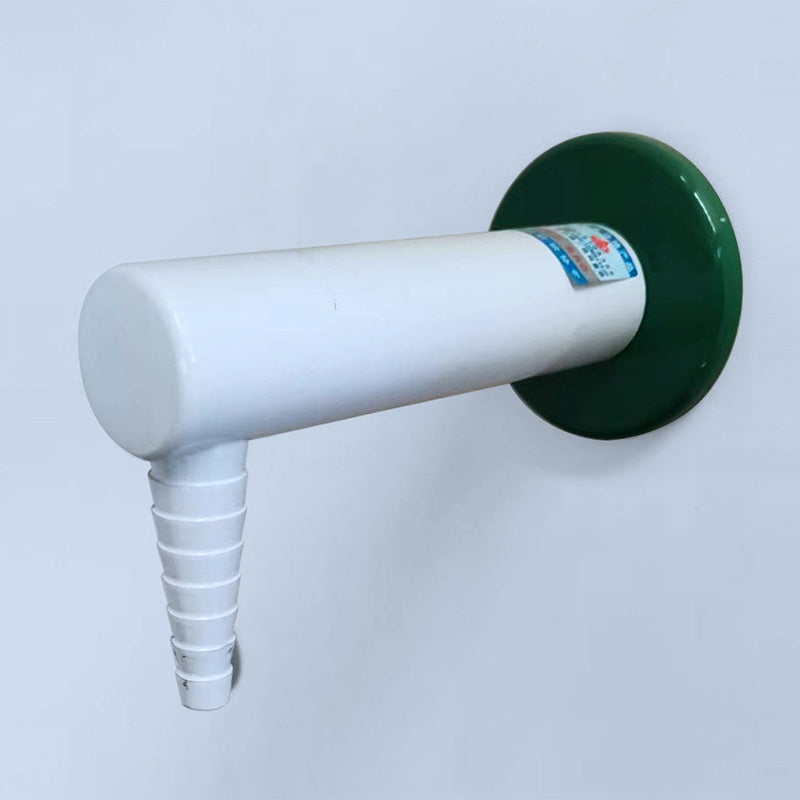

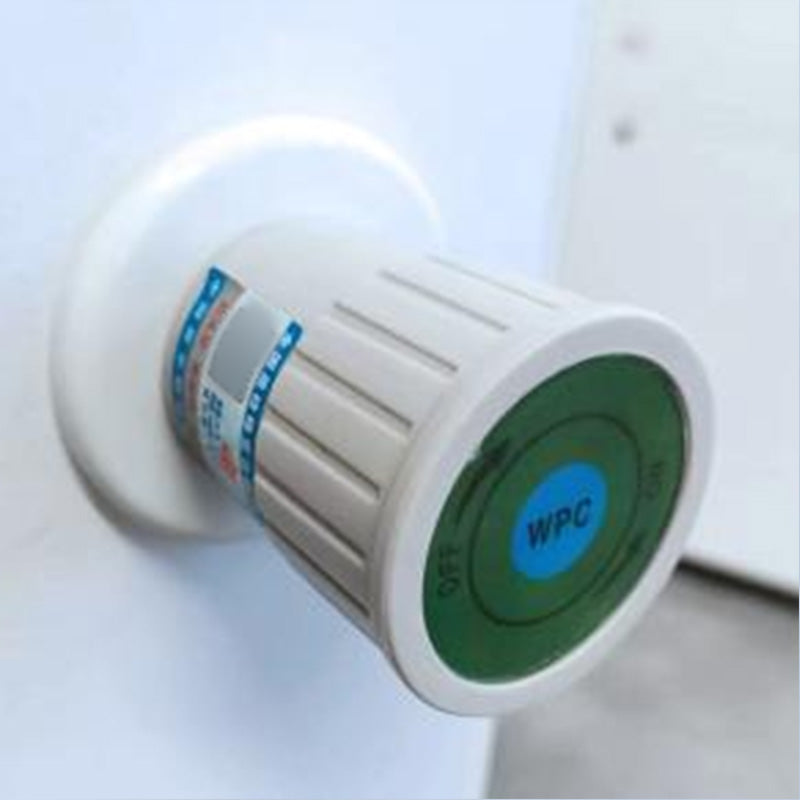

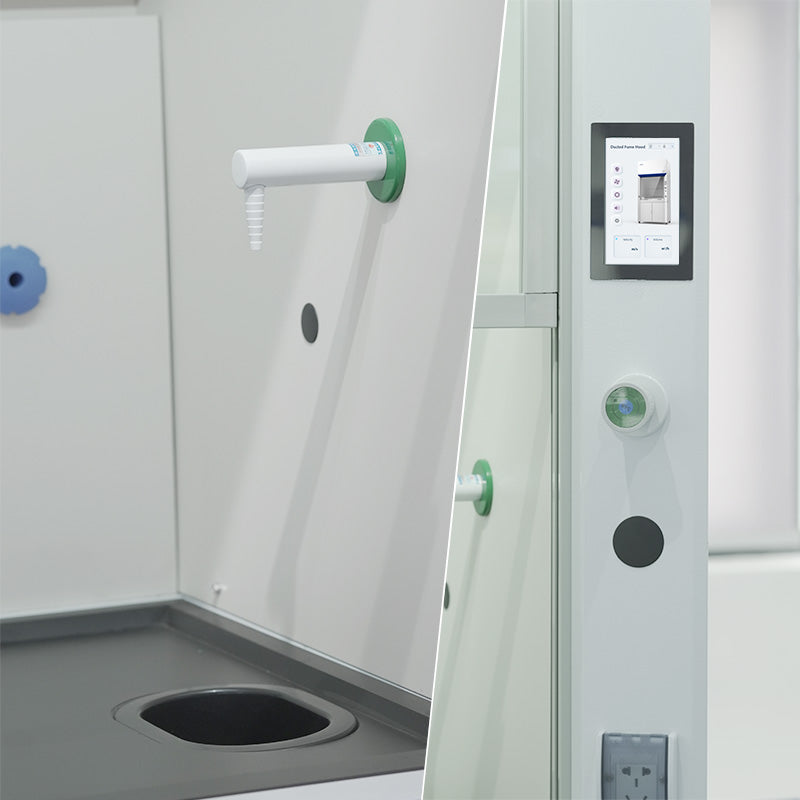

7, Equipped with wall mounted water supply cock, water supply flow control valve, laboratory sink, convenient experiment;

8, Equipped with PP centrifugal fan, large air volume, low noise, long service life, easy installation;

9, Equipped with a 5-inch LCD touch screen, the running state of the machine is clear;

10, The side of the cabinet body is equipped with lifting handles to facilitate carrying.



Technical Parameters

Model BK-FH1200E
Number of Users Single
Rated Power 125W (Load power cannot exceed 500W)
Exhaust Volume 2300 m³/h
Air Velocity 0.3m/s~0.8 m/s
Noise ≤65dB(A)
LED Lamp Power 12W
Max Opening 500mm
Tabletop Height 915mm

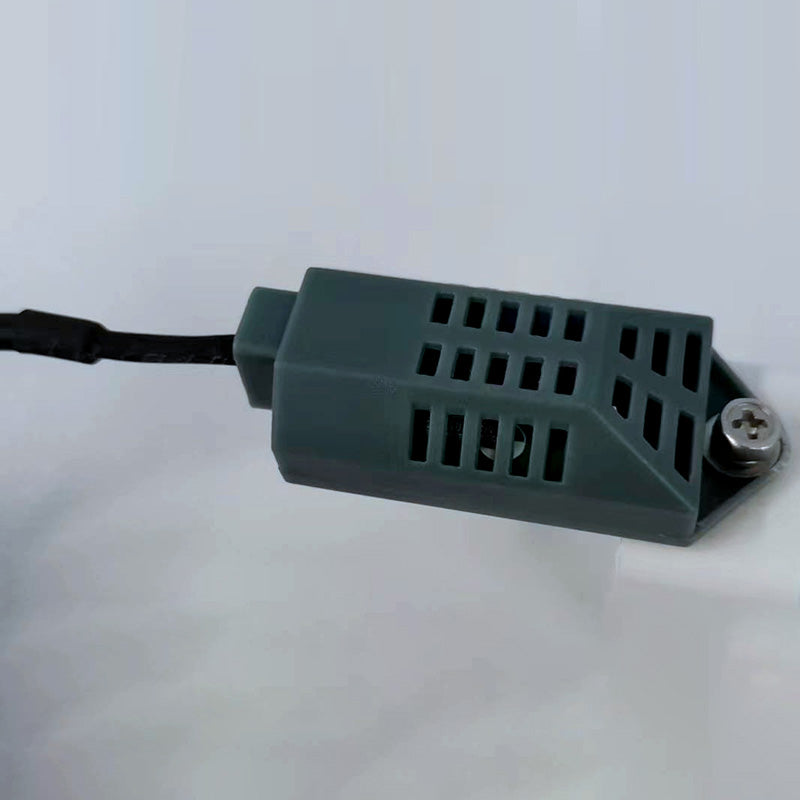

Standard Accessory LED lamp*1, Transparent socket*2, Temperature and humidity sensor, Wall mounted water supply cock, Water supply flow control valve
Optional Accessory Armrest*2, Wall mounted gas supply cock, Gas supply flow control valve
Net Weight 240kg
Gross Weight Cabinet

310kg

Base Stand 110kg
External Size

(W×D×H)



1200×800×2550mm

Internal Size

(W×D×H)



990×605×900mm

Package Size

(W*D*H)

Cabinet 1460*1010*1905mm
Base Stand 1460*1010*1035mm

The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, corrosion resistance, easy disassembled for cleaning (integral type)
