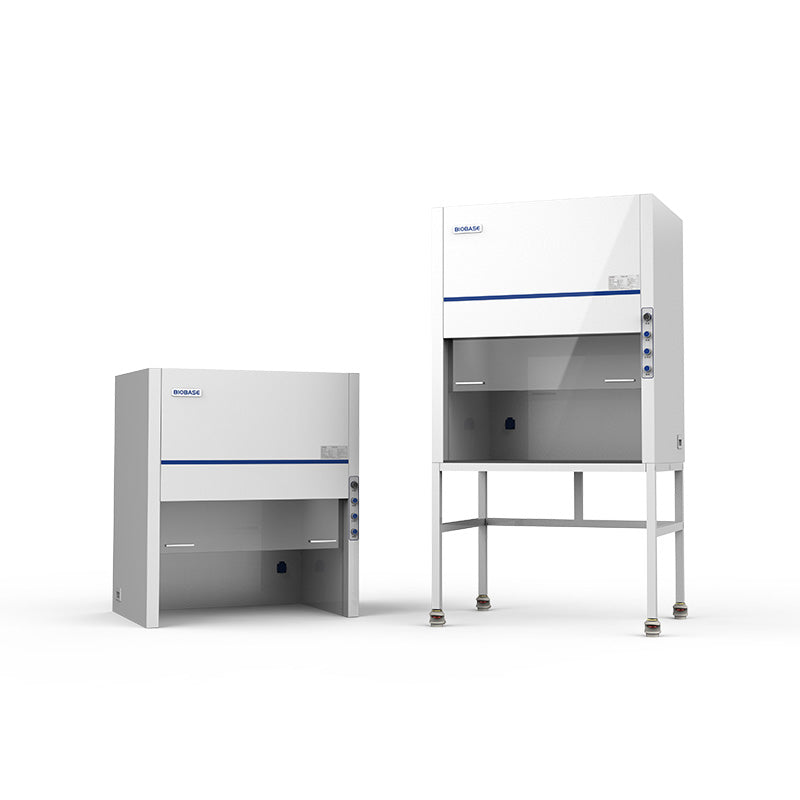

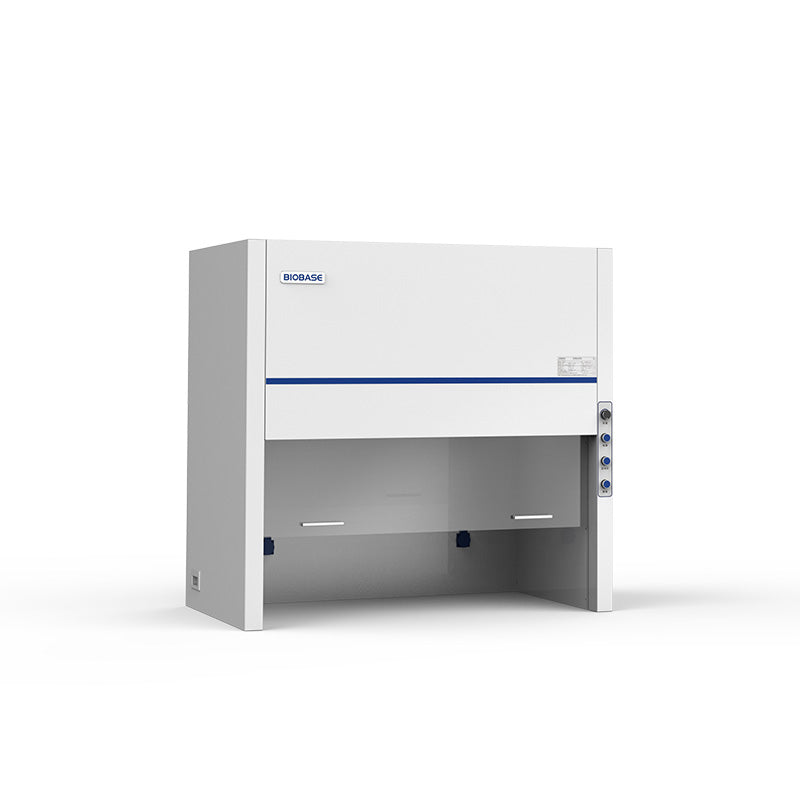

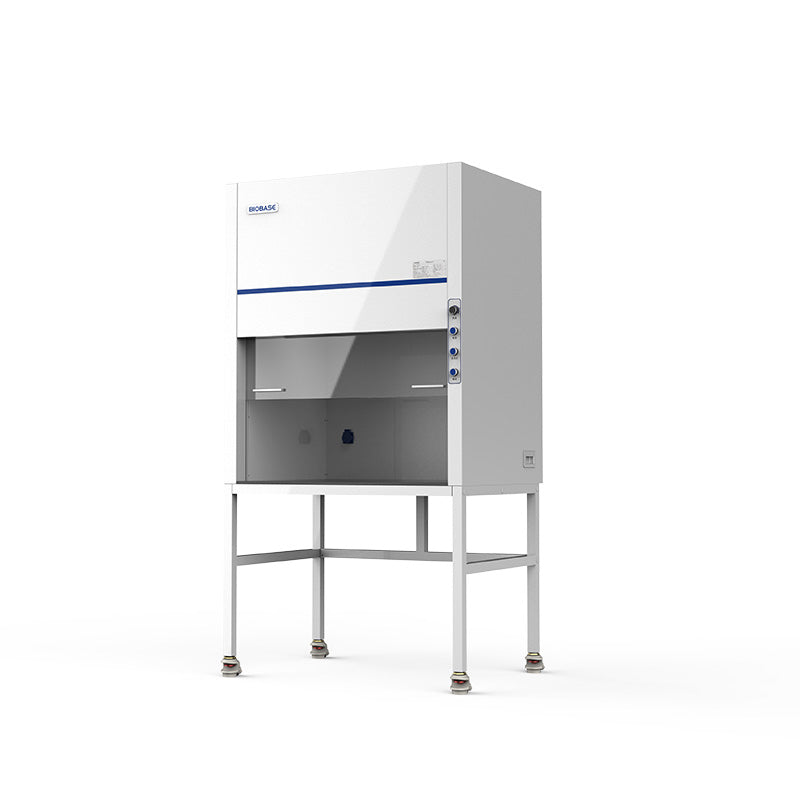

Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800

Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800

Medical Grade

Professional environments.

Trusted Brands

Recognized suppliers.

Expert Support

Assistance available.

Reliable Delivery

Dependable shipping.

Product Description

Fume Hood BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800

Fume HoodAdvantage

1, The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized;

2, Made of high quality cold rolled steel plate material, surface electrostatic spraying, with good finish;

3, The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, which is resistant to acid and alkali corrosion and can be disassembled for easy cleaning (integral type);

4, The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments;

5, Counterweight manual front window, height adjustable;

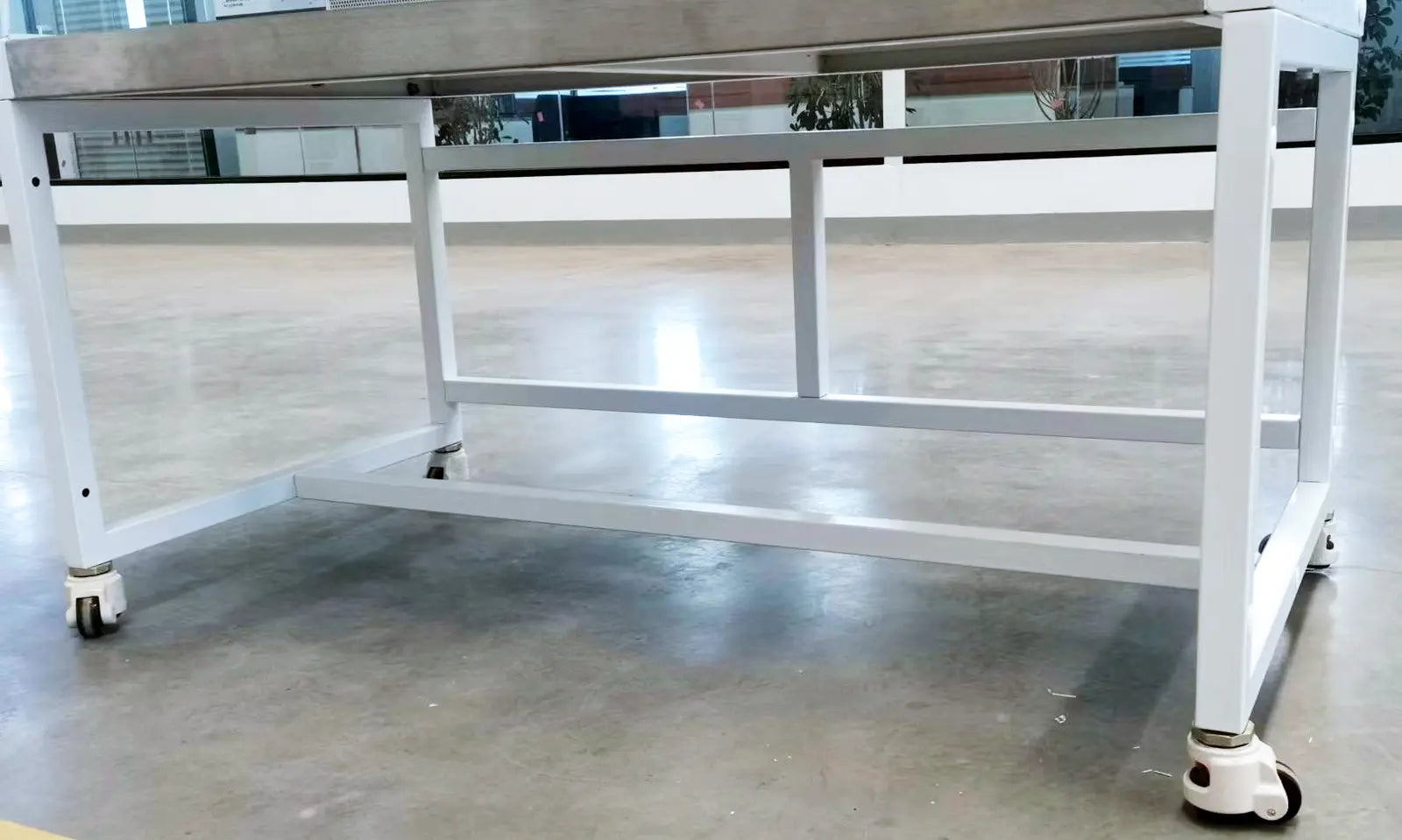

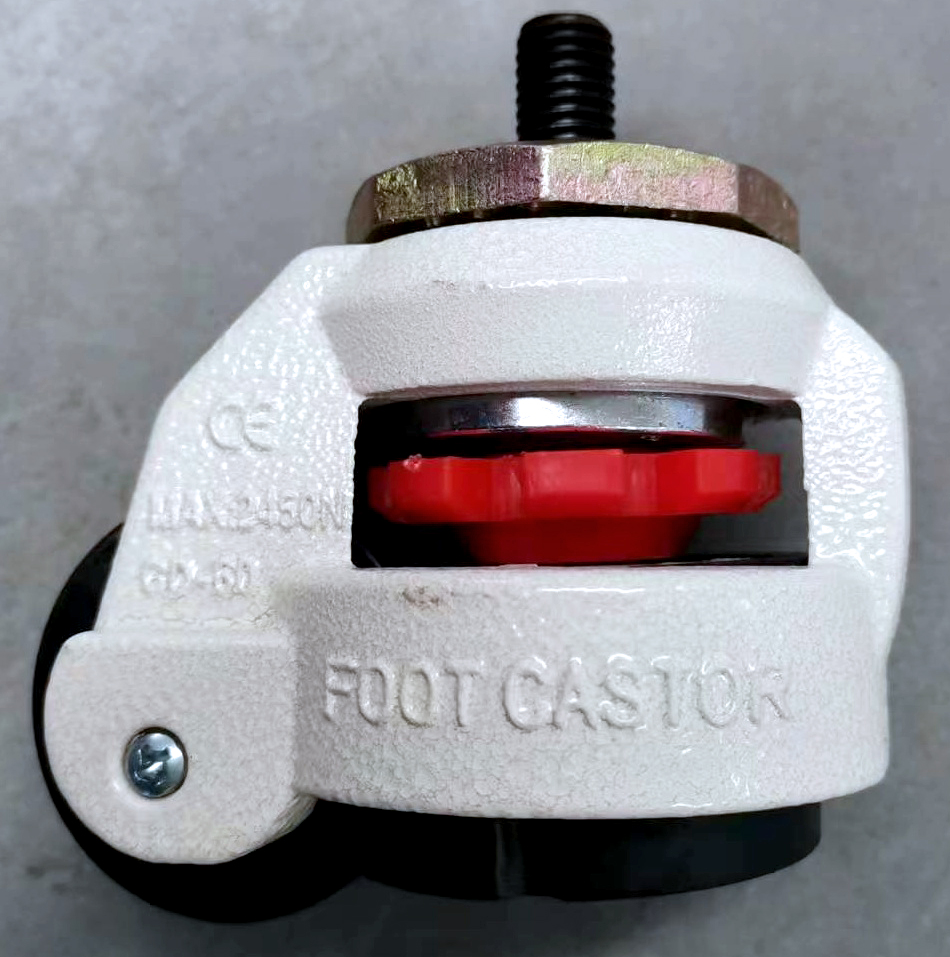

6, The base bracket and fuma castor integrated design, safely moved through the casters, also well fixed and levelled;

7, Equipped with PP centrifugal fan, large air volume, low noise, long service life, easy installation;

8, The fan can be stepless speed regulation, the function button is push-button switch, stable performance;

9, The side of the cabinet body is equipped with lifting handles to facilitate carrying.



Technical Parameters

Model BK-FH1100 BK-FH1200 BK-FH1300 BK-FH1500 BK-FH1800
Number of Users Single 1~2 1~3
Rated Power 125W (Not including socket load power, load power cannot exceed 500W)
Exhaust Volume 1850 m³/h
Air Velocity 0.3m/s~0.8 m/s
Noise ≤65dB(A)
LED Lamp 12W 16W
Max Opening 500mm(Integral Type)
Tabletop Height 810mm(Integral Type)
Standard Accessory LED Lamp, National standard three core splash proof socket,
Net Weight Desktop Type 85kg 89kg 93kg 102kg 115kg
Integral Type 126kg 132kg 138kg 151kg 171kg
External Size

(W*D*H)

Desktop Type 1100×800×1260mm 1200×800×1260mm 1300×800×1260mm 1500×800×1260mm 1800×800×1260mm
Integral Type 1100×800×2060mm 1200×800×2060mm 1300×800×2060mm 1500×800×2060mm 1800×800×2060mm
Internal Size(W*D*H) 980×660×847mm 1080×650×847

mm

1180×660×847mm 1380×660×847mm 1680×660×847mm
Package Size(W×D×H Desktop Type 1250×1160×1425mm 1350×1160×1425mm 1450×1160×1425mm 1450×1160×1425mm 1940×1150×1475mm
Integral Type 1250×1160×1425mm 1350×1160×1425mm 1450×1160×1425mm 1640×1150×1475mm 1940×1150×1475mm
Gross Weight Desktop Type 110kg 116kg 123kg 181kg 204kg
Integral Type 152kg 161kg 170kg 234kg 263kg

The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized;
