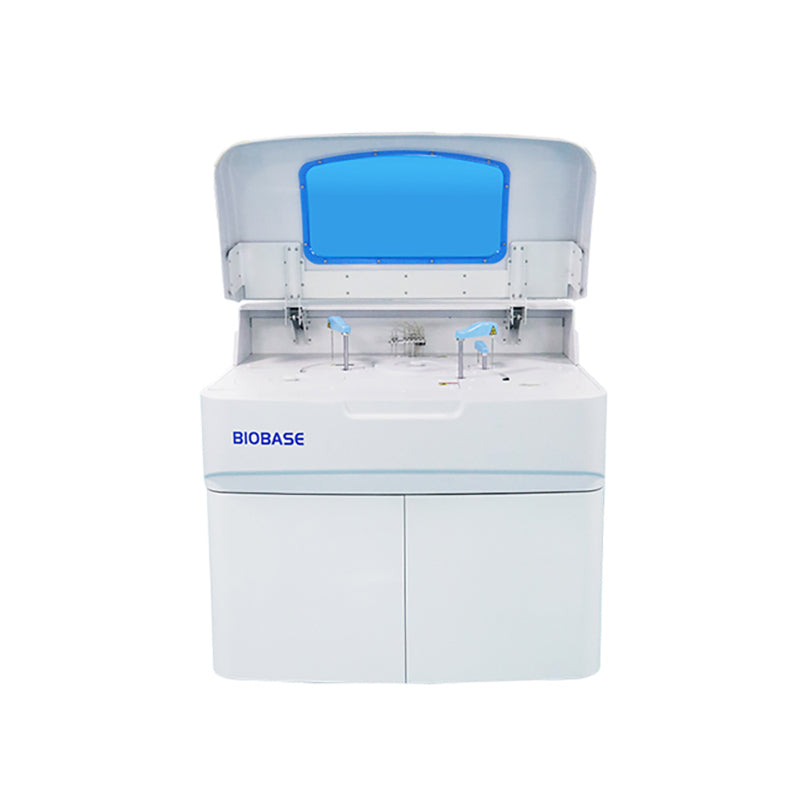

Fully Automatic Blood Biochemistry Chemistry Machine Auto Analyzer Laboratory Biochemistry BK-400
Fully Automatic Blood Biochemistry Chemistry Machine Auto Analyzer Laboratory Biochemistry BK-400
Medical Grade
Professional environments.
Trusted Brands
Recognized suppliers.
Expert Support
Assistance available.
Reliable Delivery
Dependable shipping.
Product Description
Product Description
It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.
Models：
| Model | BK-400 | |
| Overall
Performance |
Throughput | 400 Test/hour |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
| Certification | CE, FDA, ISO9001, ISO14001, ISO13485 | |
| Sample & Reagent System | Sample Positions | 60 or 90 sample positions, built-in barcode system available |
| Reagent Positions | 90 refrigerated reagent positions | |
| Sample Volume | 1-70μL | |
| Reagent Volume | 10-350μL | |
| Probe | Teflon coating, with anti-collision function,liquid level detection function | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | 2~8℃ | |
| Reaction System | Temperature Control | 37±0.1℃, real-time monitoring |
| Cuvettes | 120reusable cuvettes, optical length 6mm | |
| Mixer Probe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STAT function | YES | |
| Optical System | Light Source | 12V/30W halogen-tungsten lamp |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 340,405,450,480,505,546,570,600,630,700,750,800nm | |
| Absorbance | 0~3.5Abs | |
| Calibration & QC | Calibration | Linear:K factor, 1-point ,2-point and multipoint linear |
| Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P | ||
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) | |
| Data Management | Software | Windows 7/8/10 , 32or 64bit |
| LIS System | Bi-direction,support HL7 protocol | |
| Interface | LAN port access | |
| Printer | External,multiple reporting mode available | |
| Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 500W |
| Temperature | 15～30℃ | |
| Water Consumption | Deionized water:10L/H | |
| Humidity | 40-85% | |
| Size & Weight | External Size (W*D*H) | 1170*775*1145mm |
| Net Weight | 190kg | |
| Package Size (W*D*H) | 1348*928*1377mm | |
| Gross Weight | 257kg | |
Features:
1. 400 tests per hour.
2. 90 Reagent positions.
3. 120 Reaction cuvettes.
4. Built-in sample barcode system optional.
5. 60 Sample positions(90 sample positions optional).
6. Probe with anti-collision function, liquid level detection function.
