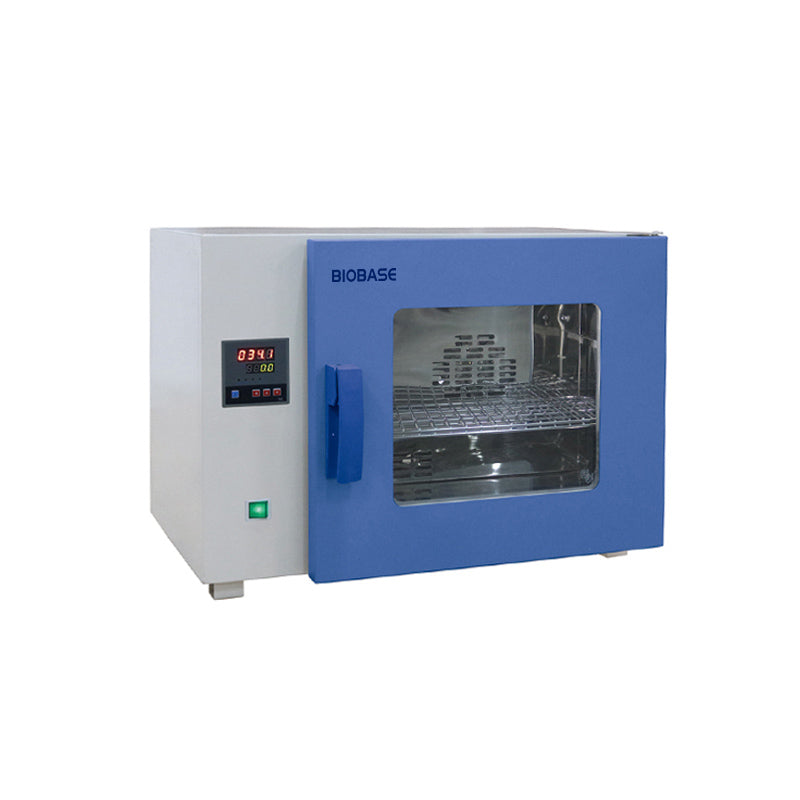

Forced Air Drying Oven(BOV-TF)
Features:
* External material: cold-rolled steel with anti-bacteria powder coating.
* Stainless steel inner chamber, round angle structure, adjustable shelves.
* Double-layer glass observation window, adjustable airtight buckle lock.
* PID control with LED display
* Over-temperature protection.
Models:
| Model |
BOV-T25F |
BOV-T50F |
BOV-T105F |
BOV-T200F |
| Capacity |
25L |
54L |
108L |
212L |
| Temp. Range |
50~200℃ |
| Temp. Precision |
0.1℃ |
| Temp. Fluctuation |
±1℃ |
| Ambient Temp. |
5~40℃ |
| Timing Range |
1~9999min |
| Shelves No. |
2 pcs |
| Power Consumption |
650W |
1000W |
1600W |
2500W |
| Power Supply |
Standard: 220V±10%, 50/60Hz; Optional: 110V, 60Hz |
| Internal Size(W*D*H)mm |
298*290*274 |
419*332*348 |
550*348*550 |
602*498*602 |
| External Size(W*D*H)mm |
580*554*455 |
708*595*532 |
830*620*735 |
880*775*785 |
| Package Size(W*D*H)mm |
710*660*620 |
840*690*700 |
960*720*900 |
1010*880*940 |
| Gross Weight(kg) |
51 |
66 |
115 |
145 |
Features:
* External material: cold-rolled steel with anti-bacteria powder coating.
* Stainless steel inner chamber, round angle structure, adjustable shelves.
* Double-layer glass observation window, adjustable airtight buckle lock.
* PID control with LED display
* Over-temperature protection.
