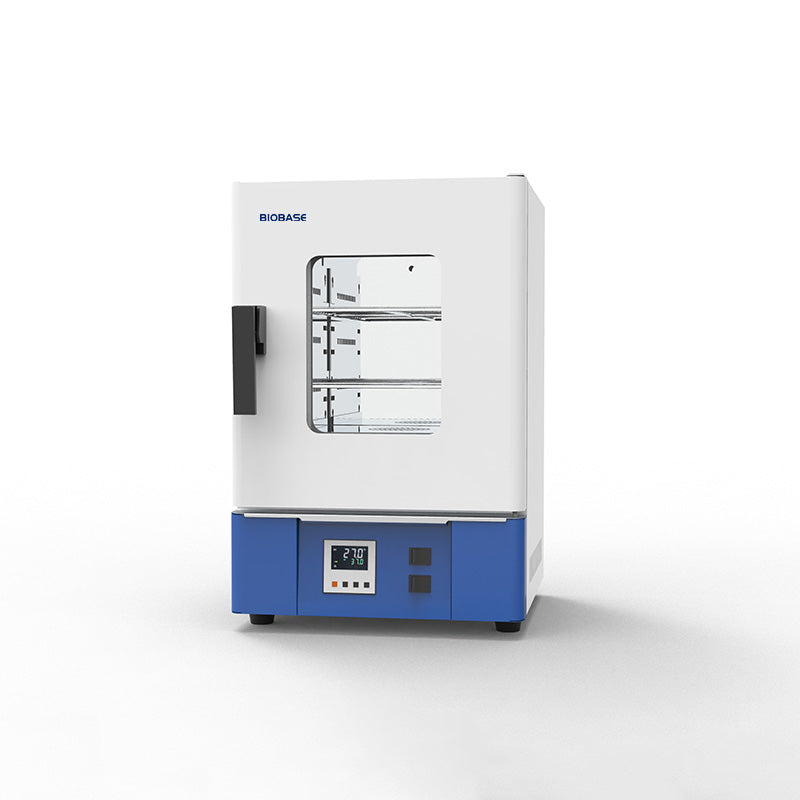

Forced Air Drying Oven BJPX-HGZ30L
Features
Structure design
LCD display
Built-in temperature deviation calibration function, parameter memory function, with call parameters automatic recovery function
Timing Settings
Accurate control of heating time, timing range 0-9999 minutes (hours), timing error ≤1%
Independent fan switch
Independent fan switch, according to the heating needs to decide whether to start
Unique mandatory fan cooling ventilation structure, ensure the fan working temperature is less than 50°C
Exterior design
Novel vertical design, shell with electrostatic spraying steel plate, corrosion resistant and durable
Optional Foot Master casters are available for more convenient movement.
Three-dimensional circulation air duct
Unique bottom air blast and bottom heating reasonable cooperation
Vertical double duct vertical hot air circulation design
The temperature is uniform to meet the requirements of high-precision experiments
Technical Parameters
| Model |
BJPX-HGZ30L |
| Capacity |
30L |
| Temp. Range |
RT+10℃~300℃ |
| Temp. Precision |
0.1℃ |
| Temp. Uniformity |
≤Max Temp.±2.5％ |
| Circulation Mode |
Bottom heating, forced convection |
| Timing Range |
0~9999min/h |
| Shelves NO. (pc) |
2 |
| Display |
LCD |
| Power Supply |
100~245V 50/60Hz |
| Internal Size(mm) |
310*310*310 |
| External Size(mm) |
440*670*495 |
| Packing Size(mm) |
520*810*550 |
| Gross Weight(kg) |
50 |
Applications
This product is used for drying, disinfection, wax melting and sterilization of non-flammable and explosive items and non-volatile items. For example, drying of experimental samples, food, glassware, thermal hardening, thermal denaturation, thermal softening, and moisture removal of chemical substances; dry heat sterilization of utensils and utensils in bioengineering; aging and drying of electronic components. Widely used in biopharmaceuticals, enterprises, scientific research, food processing, medical units and various laboratories, etc.
