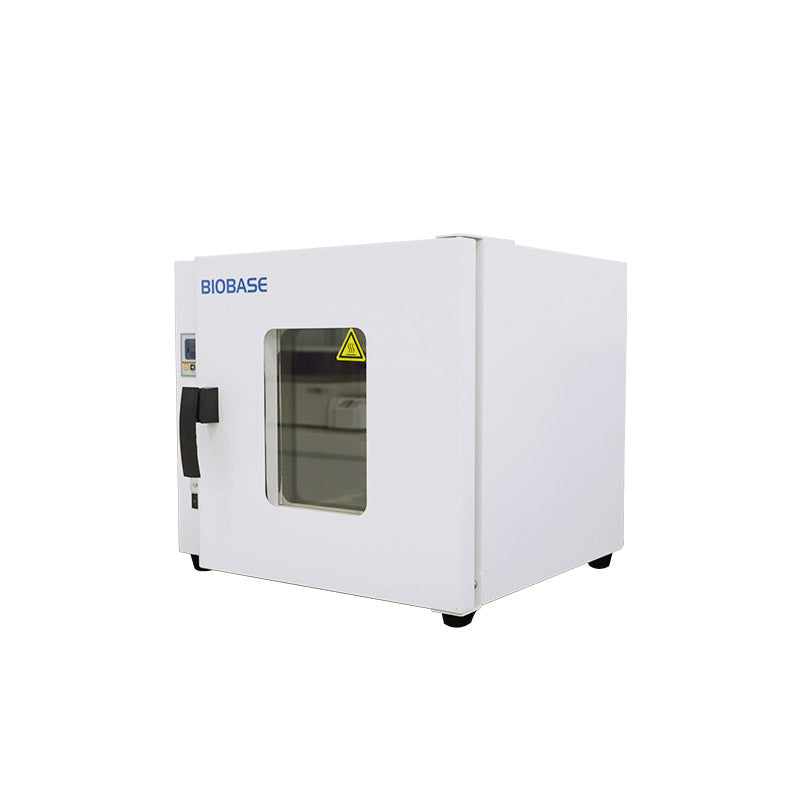

Forced Air Drying Oven BJPX-HG Series
Features：
1.LCD liquid crystal temperature display, with temperature deviation calibration function.
2.The unique air duct design ensures the uniformity and stability of the temperature in the working room.
3.Over temperature alarm and automatic fault detection alarm function.
4.Independent fan switch, decide whether to open convection according to heating needs.
5.SUS 304 high quality chamber.
6.Optional Foot Master casters are available for more convenient movement.
Technical Parameters：
| Model |
BJPX-HGZ23 |
BJPX-HGZ45 |
BJPX-HGZ54 |
BJPX-HGZ75 |
BJPX-HGZ88 |
| Capacity |
23L |
45L |
54L |
75L |
88L |
| Temp. Range |
RT+10℃~300℃ |
| Temp. Precision |
0.1℃ |
| Temp. Uniformity |
≤Max Temp.±2.5％ |
| Circulation Mode |
Back heating, forced convection |
| Timing Range |
0~9999min/h |
| Shelves NO. (pc) |
2 |
2 |
2 |
2 |
3 |
| Display |
LCD |
| Power Supply |
100-245V 50/60Hz |
| Internal Size(mm) |
300*275*290 |
370*340*358 |
370*340*439 |
463*463*352 |
500*490*361 |
| External Size(mm) |
490*415*535 |
596*635*510 |
596*635*610 |
691*635*615 |
727*650*666 |
| Packing Size(mm) |
675*522*641 |
690*700*660 |
690*700*760 |
785*700*765 |
820*720*810 |
| Gross Weight(kg) |
50 |
40 |
43.5 |
47 |
50.5 |
| Model |
BJPX-HGZ138 |
BJPX-HGZ160 |
BJPX-HGZ225 |
BJPX-HGZ270 |
| Capacity |
138L |
160L |
225L |
270L |
| Temp. Range |
RT+10℃~300℃ |
| Temp. Precision |
0.1℃ |
| Temp. Uniformity |
≤Max Temp.±2.5％ |
| Circulation Mode |
Back heating, forced convection |
| Timing Range |
0~9999min/h |
| Shelves NO. (pc) |
3 |
3 |
3 |
3 |
| Display |
LCD |
| Power Supply |
100-245V 50/60Hz |
220V±10% 50/60Hz(Standard) ; 110V±10% 50/60Hz(Optional, |
| Extemal Transformer); |
| Internal Size(mm) |
555*555*453 |
558*578*500 |
562*748*508 |
664*700*600 |
| External Size(mm) |
781*725*705 |
785*793*764 |
826*780*900 |
891*891*876 |
| Packing Size(mm) |
871*795*850 |
871*865*910 |
920*940*1050 |
990*960*1020 |
| Gross Weight(kg) |
60 |
68.5 |
77 |
86.5 |
Applications
This product is used for drying, disinfection, wax melting and sterilization of non-flammable and explosive items and non-volatile items. For example, drying of experimental samples, food, glassware, thermal hardening, thermal denaturation, thermal softening, and moisture removal of chemical substances; dry heat sterilization of utensils and utensils in bioengineering; aging and drying of electronic components. Widely used in biopharmaceuticals, enterprises, scientific research, food processing, medical units and various laboratories, etc.
