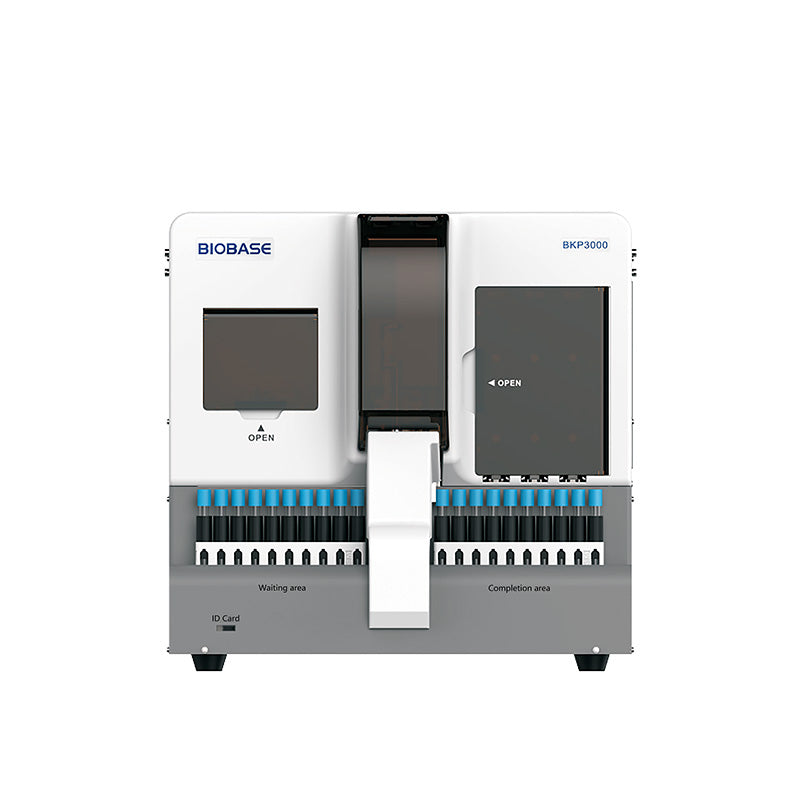

Fluorescence Immunoassay Analyzer BKP3000
Application:
It is suitable for clinical departments of medical institutions, emergency laboratories, and physical examination centers.
Features:
- Original sampling tube available, no sample handling required, fully automatic detection
- Support connection to LIS/HIS system, automatic transmission of results
- Can detect 3 kinds of items at the same time, independent results in 3-15 minutes
- It can be connected to an external computer, printer, scan code gun, can read ID cards, and has powerful information processing functions.
Technical Parameters:
| Model |
BKP3000 |
| Excitation light source |
LED |
| Wavelength |
Excitation wavelength λ0=365nm
Detection wavelength λ1=615nm
|
| Detection Channel |
1 |
| Incubation Position |
10 |
| Sample Type |
Serum, plasma, whole blood and urine, etc. |
| Detection Mode |
Supports multiple items in one card |
| Repeatability |
CV≤5% |
| Stability |
σ≤±8% |
| Linear Correlation |
(r)≥0.99 |
| Accuracy |
Δn≤±10% |
| Carrying Pollution Rate |
≤10-5
|
| Pipetting Accuracy |
Accuracy a≤±5%, Repeatability CV≤5% @ 20~100ul |
| Display |
10.1-inch color touch screen |
| Language |
Chinees, English, Other languages can be customized |
| Interface |
RS232 |
| Printer |
Built-in thermal printer |
| Power Supply |
100~120V/200~240V, 50/60Hz |
| External Size(L*W*H) mm |
550*585*535 |
| Net Weight (kg) |
57 |
| Package Size(L*W*H) mm |
630*760*600 |
| Gross Weight (kg) |
85 |
Introduction:
BKP3000 automatic dry fluorescence immunoassay analyzer can realize automatic detection function, automatic sample dilution, automatic identification of reagent items, unique track structure, large reagent card storage, support 30 (3*10) vacuum blood collection tubes directly on the machine, multiple items can be detected at the same time, to achieve automatic detection of the whole process, intelligent Windows operating system, easy and fast operation.
