Fluorescence Immunoassay Analyzer BKP2000
Application:
It is suitable for in vitro diagnostic tests in central laboratories, outpatient/emergency laboratories, clinical departments, physical examination centers and scientific research laboratories of medical institutions.
Features:
- 12 independent constant temperature incubation channels, which can detect 12 different items at the same time
- Automatic induction of reagent card insertion, automatic printing of test results, and automatic card loss.
- Built-in thermal printer, can also be connected to an external printer.
- 10.1-inch large LCD screen with a resolution of 800*480 or more, the visual experience is better.
- The temperature range can be manually set to quickly achieve the predetermined temperature effect and improve the reaction rate.
- The operation is convenient, the data is automatically read, and the single detection time is less than 10s.
Technical Parameters:
| Model |
BKP2000 |
| Excitation light source |
LED |
| Wavelength |
Excitation wavelength λ0=365nm
Detection wavelength λ1=615nm
|
| Detection Channel |
1 |
| Incubation Position |
12 |
| Sample Type |
Serum, plasma, whole blood and urine, etc. |
| Detection Mode |
Supports multiple items in one card |
| Testing Speed |
＜10s/test |
| Repeatability |
CV≤5% |
| Stability |
σ≤±8% |
| Linear Correlation |
(r)≥0.98 |
| Accuracy |
Δn≤±8% |
| Display |
10.1-inch color touch screen |
| Language |
Chinese, English, Other languages can be customized |
| Interface |
RS232, USB, Ethernet port |
| Printer |
Built-in thermal printer |
| Power Supply |
100~240V 50/60Hz |
| External Size(L*W*H) mm |
336*410*400 |
| Net Weight (kg) |
17 |
| Package Size(L*W*H) mm |
610*530*715 |
| Gross Weight (kg) |
36.5 |
Introduction:

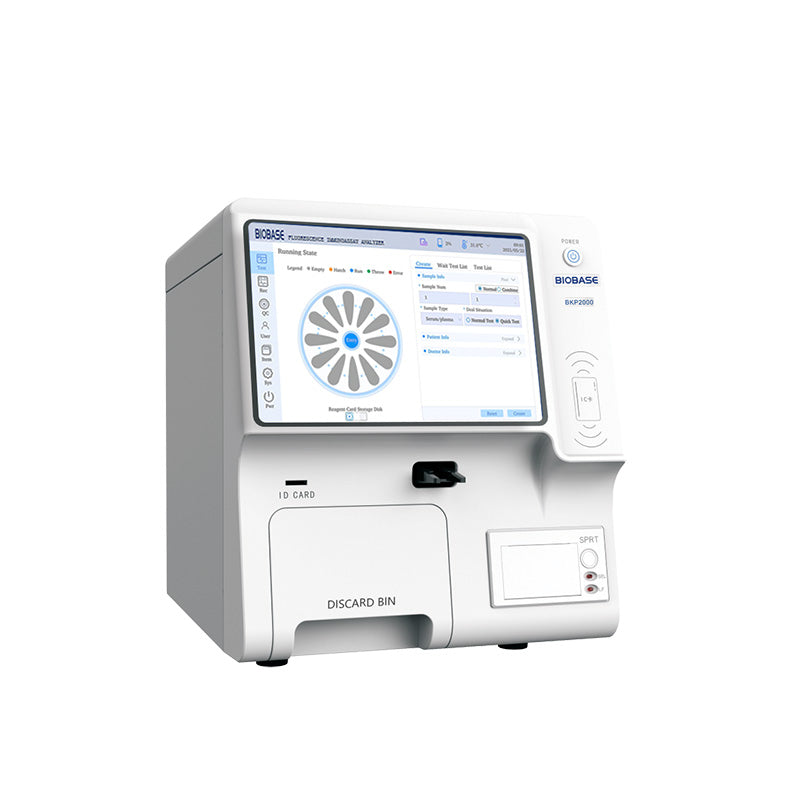

BKP2000 multi-channel dry fluorescence immunoassay analyzer, 12 independent incubation channels, automatic induction of reagent card insertion, automatic printing of test results, and automatic card loss. The 10.1-inch LCD screen has a better visual experience.
It is mainly composed of an optical detection module (fluorescence), a scanning module, a data processing module, a liquid crystal display module, an incubation module, an information acquisition module (ID card reader), a power supply, and a printer.
