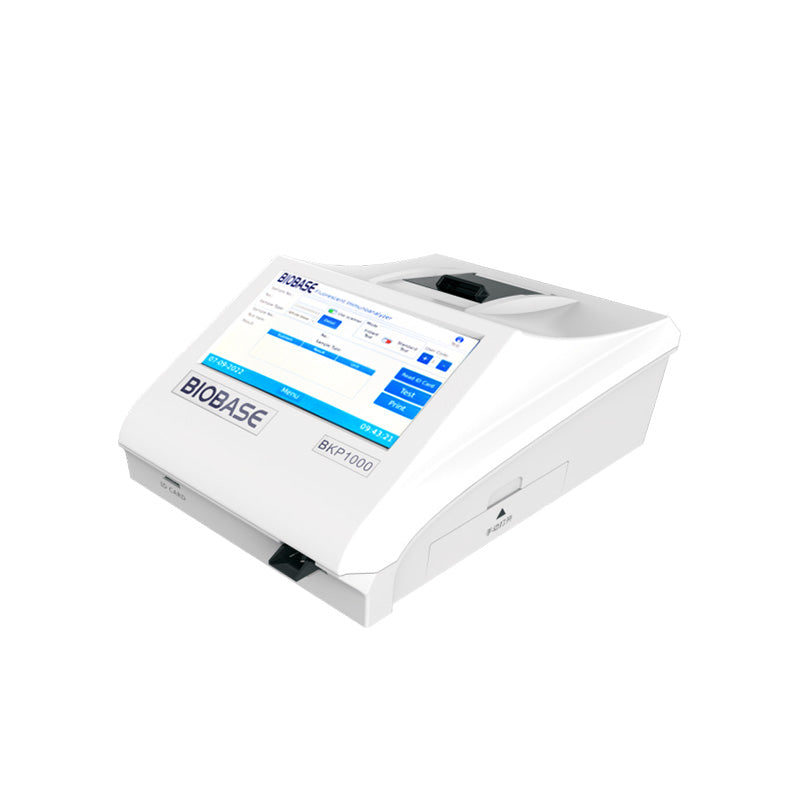

luorescence Immunoassay Analyzer BKP1000
Application:
It is suitable for clinical diagnosis of disease control medical treatment, health examination centers, scientific research institutions and laboratories, food hygiene and safety testing,, blood product companies, central blood stations, etc.
Features:
The instrument is compact, easy to carry, can be connected to the code scanner, and can be connected to the LIS/HIS system
The test results are automatically printed, and an external printer can also be connected through a computer.
Sample types: Serum, plasma, whole blood and urine.
Sample instant test can be performed at any time, with random sample insertion function
Supports multiple items in one card, and the detection time can reach 8 seconds/Test
Appearance design integration, 7-inch color touch screen
It can provide two operation modes of instant test and standard test.
Technical Parameters:
| Model |
BKP1000 |
| Excitation light source |
LED |
| Wavelength |
Excitation wavelength λ0=365nm
Detection wavelength λ1=615nm
|
| Detection Channel |
1 |
| Sample Type |
Serum, plasma, whole blood and urine, etc. |
| Detection Mode |
Supports multiple items in one card |
| Testing Speed |
＜10s/test |
| Repeatability |
CV≤5% |
| Stability |
σ≤±8% |
| Linear Correlation |
(r)≥0.98 |
| Accuracy |
Δn≤±8% |
| Display |
7-inch color touch screen |
| Language |
Chinese, English, Other languages can be customized |
| Interface |
RS232, USB, Ethernet port |
| Printer |
Built-in thermal printer |
| Power Supply |
100~240V 50/60Hz |
| External Size(L*W*H) mm |
215*310*158 |
| Net Weight (kg) |
3 |
| Package Size(L*W*H) mm |
460*330*250 |
| Gross Weight (kg) |
4.2 |
BKP1000 adopts the leading flow system design and whole machine topology design, which is highly intensive. It is one of the current “mini” fluorescence immunoassay analyzers, which is very suitable for actual needs.
BKP1000 is small in size, excellent in performance, and many performance indicators are ahead of the industry level, providing the best solution for primary clinical.
