Basic Parameters
● Detector Technology: Amorphous Silicon;
● Scintillator: CsI;
● Active Area: 17 inch × 17 inch;
● Pixel Pitch: 139 μm;
● Pixel Matrix: 3,072 × 3,072;
● Spatial Resolution: 3.6 lp/mm.
● AD Conversion: 16 bits;
● Full Image Time: 5s.
Application
● DR upgrade solution by retrofit;
● Easy to interface with any kind of X-ray generator;
● Faster workflow after DR upgrade;
● Maximum flexibility in virtually all general radiographic specialties;
● Fits into most existing analogue X-ray system;
● No DR trigger cable between detector and generator With AED function with AED function to provide very easy DR upgrade.
Features
★ Direct deposition Csl for better image quality with the lower dose;
★ Dual band (2.4G and 5G) wireless support with easy sharing;
★ Easy installation and shareable between diverse X-ray systems;
★ Always charging with a backup cable;
★ Long battery life and smart workflow;
★ Wireless cassette detector per ISO 4090, fits in bucky;
★ Stable iSync+ Automatic Exposure Detection (AED).

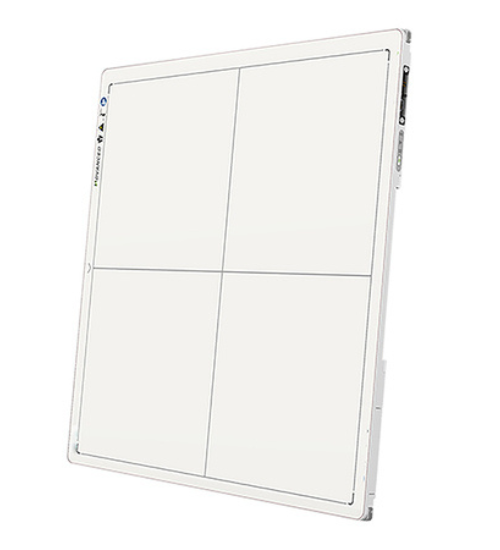

Smart wireless cassette-size YH-FPD01 is Csl based, portable a-Si flat panel detector. Reliable iSync and Automatic Exposure Detection (AED), stable wireless connection, long battery life, high image quality, and lightweight design, establish YH-FPD01 as the standard of quality in X-Ray DR retrofit and system application. It supports a fast workflow and is the optimal choice for both retrofit and new DR system solutions.
