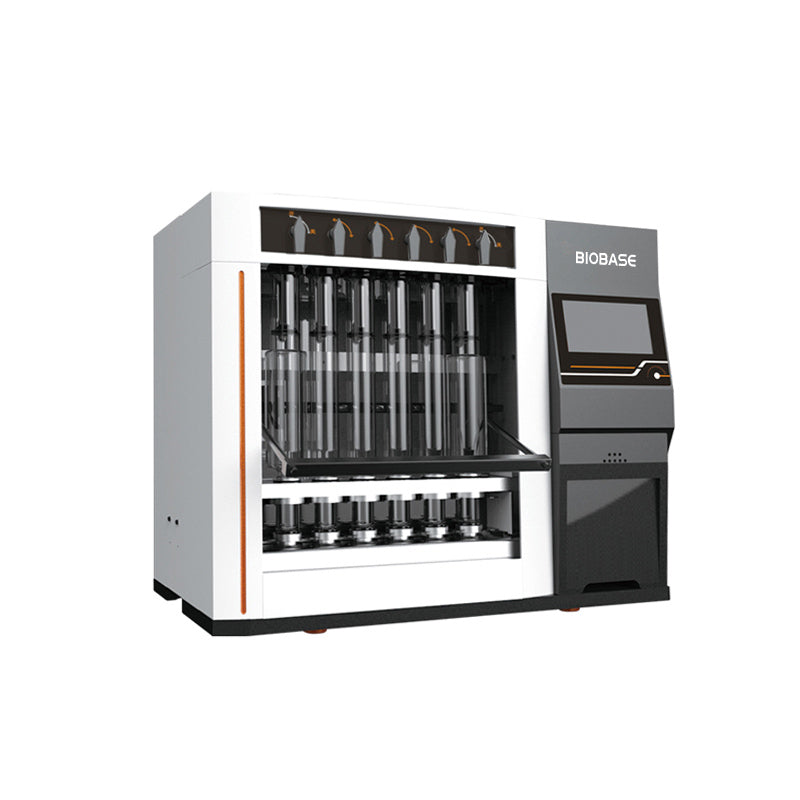

Fiber Analyzer BK-F800
Features:
* Hidden solution barrel pull structure designed to facilitate dosing operation, provide the safest fiber analysis.
* Corrosive liquid is not in contact with any pump body, to avoid waste discharge pump susceptible to corrosion phenomena.
* The crucible recoil function designed to prevent sample in the crucible can not caking filtration.
* With dosing overflow protection function to prevent dosing corrosive liquid overflow due to operator error, protect the safety of the operator.
* Adjust the crucible heating power in time, enabling operator to control the heating rate easily and low down the energy consumption, ECO-friendly.
* Having a built-in pre-heating function, greatly reducing the whole experiment time.
* Provide five various specifications crucible specifications to meet the needs of different samples for standard configuration.
Technical Parameters:
| Model |
BK-F800 |
| Measurement Range |
0.1%~100% |
| Sample Weight |
0.5~3g per piece |
| Repeatability |
≤0.4% (Craw Fiber Content below 10%)
≤1% (Craw Fiber Content above 10%) |
| Max. Capacity |
6 pcs/batch |
| Pre-heating Time |
10~12min |
| Heating to Boiling |
13~15min |
| Consumption |
2.2KW |
| Power Supply |
AC220V±10%, 50Hz |
| External Size(W*D*H) |
776*476*644mm |
| Package Size(W*D*H) |
Main Body:680*950*840mm / Accessories:480*340*250mm |
| Gross Weight |
Main Body:114kg/Accessories:4.6kg |
