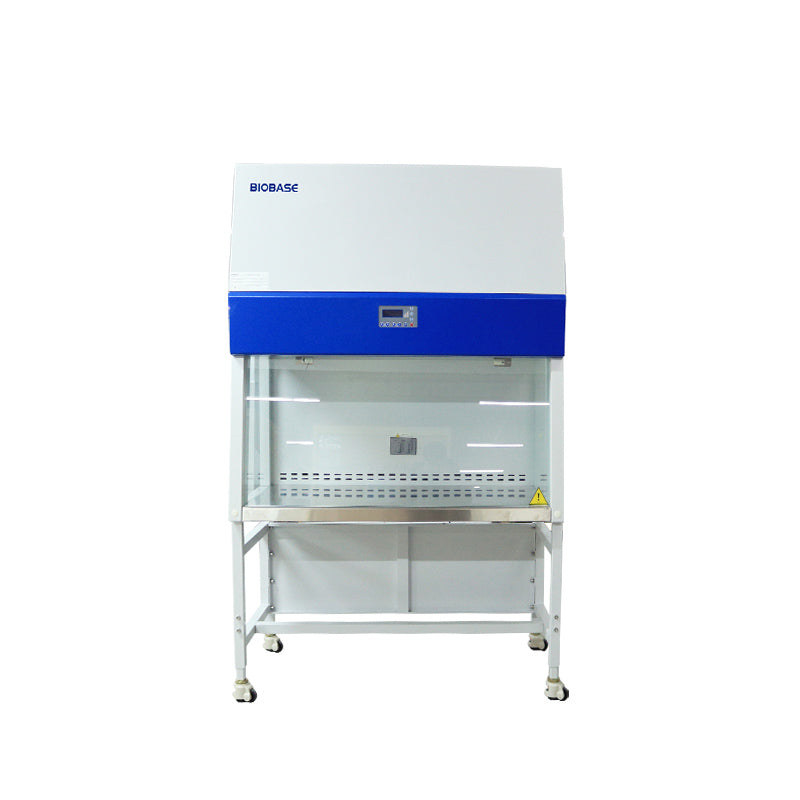

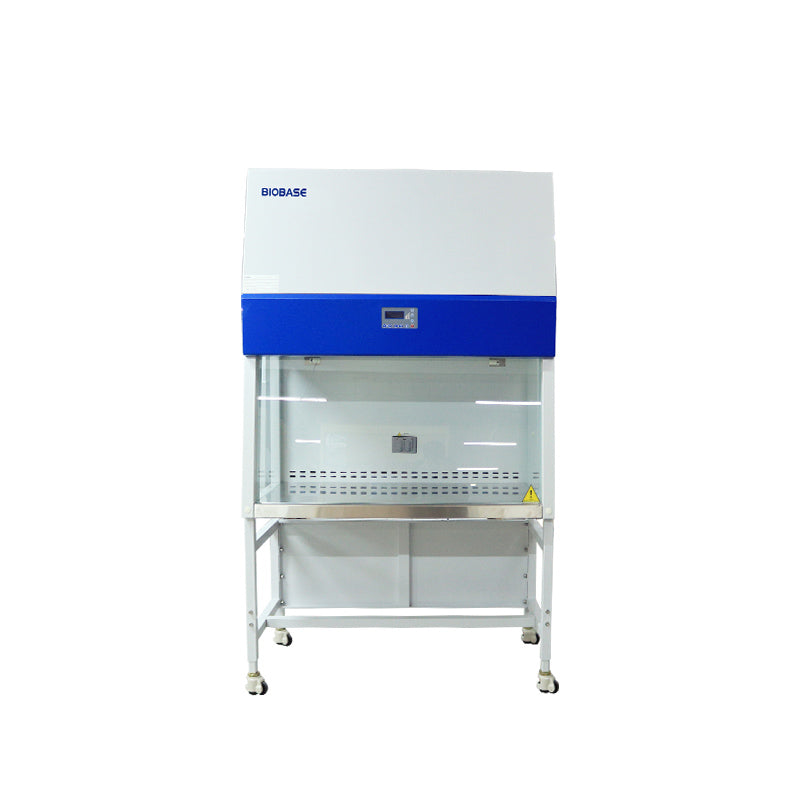

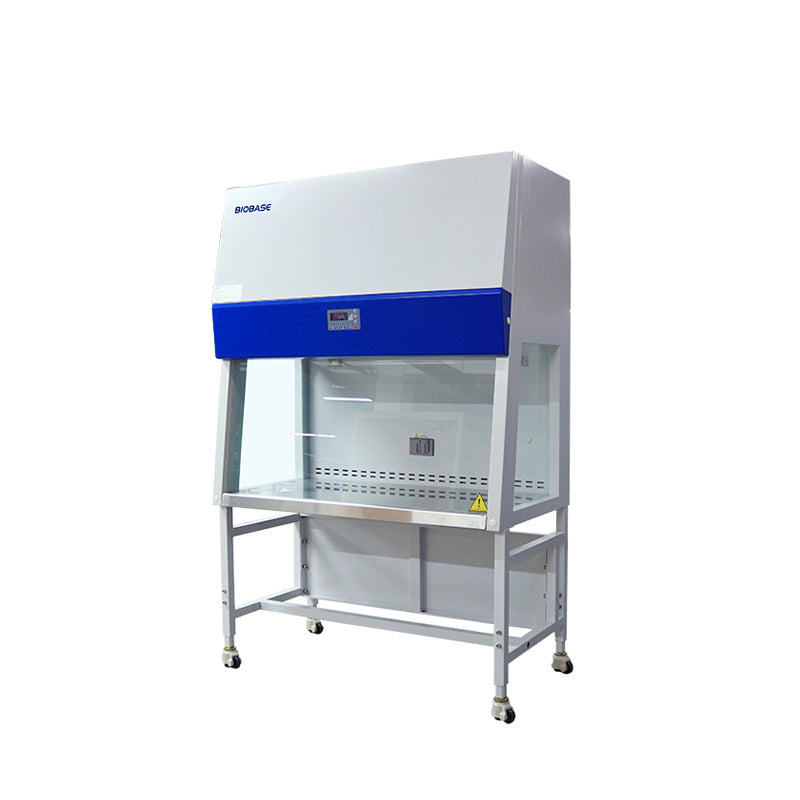

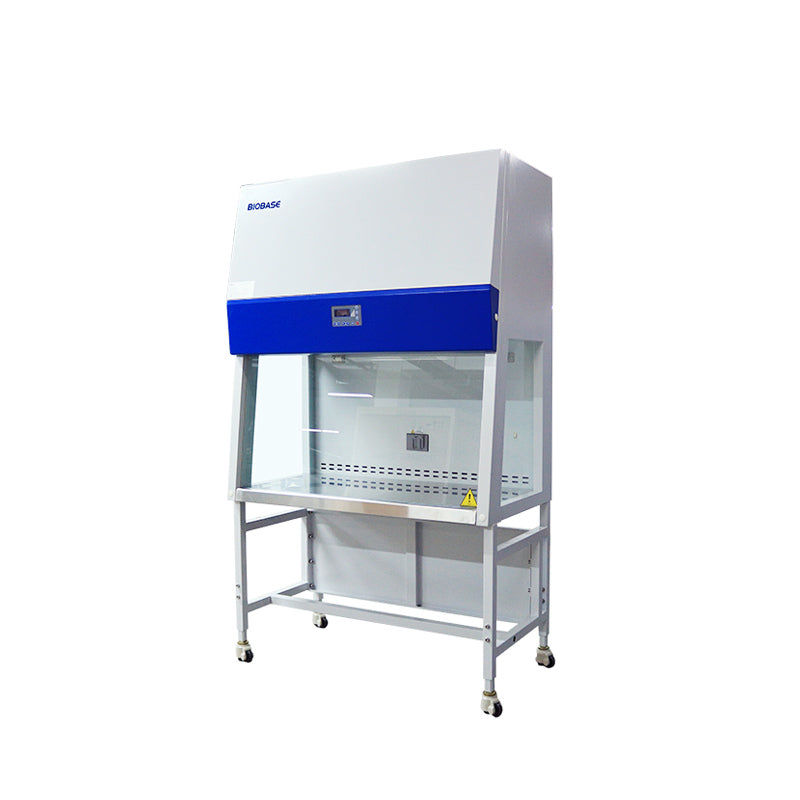

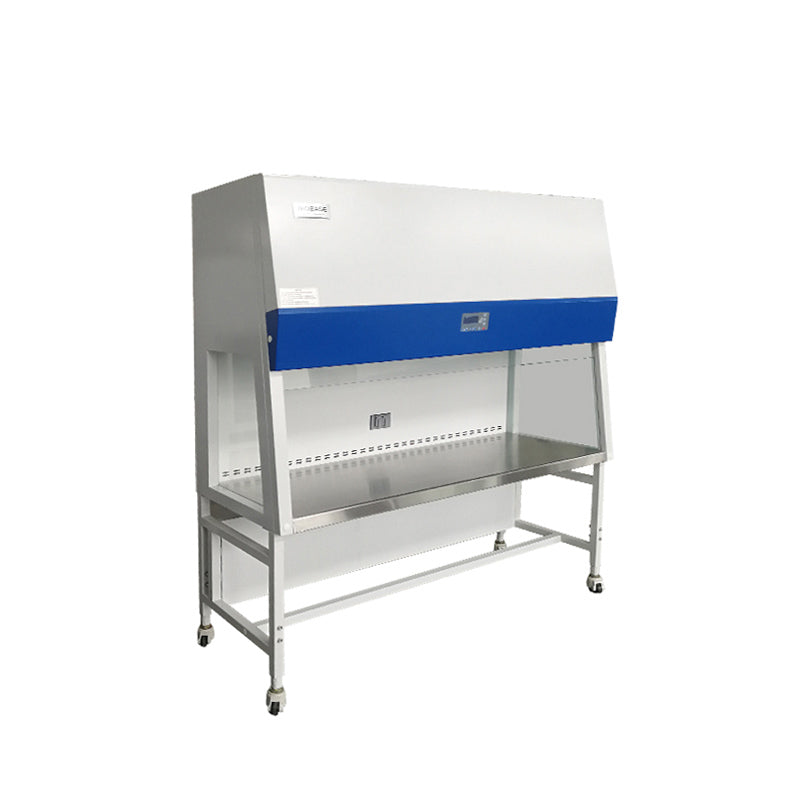

ETL Certified Vertical Laminar Flow Cabinet
Advantage：
1. ETL certified, Satisfy North American market.
2. With memory function in case of power-failure.
3. Audio and visual alarm(Abnormal airflow velocity).
4. Interlock function: UV Lamp and blower LED Lamp.
Models:
| Model |
BBS-V800 |
BBS-V1100 |
BBS-V1300 |
BBS-V1500 |
BBS-V1800 |
| External Size(W*D*H) |
800*700*(2090～2340)mm |
1100*700*(2090～2340)mm |
1300*700*(2090～2340)mm |
1500*700*(2090~2340)mm |
1800*700*(2090~2340)mm |
| Internal Size(W*D*H) |
700*575*625mm |
1000*575*625mm |
1200*575*625mm |
1400*575*625mm |
1700*575*625mm |
| Work Surface Height |
750～1010mm |
| Max Opening |
480mm |
| Display |
LCD Display |
| Airflow Velocity |
Average of 80~99fpm |
| Material |
Working area: 304stainless Steel |
| Main Body: 1.2mm Cold-rolled steel with anti-bacteria powder coating. |
| Front Window: Motorized, 5mm toughened glass, anti-UV |
| Pre-Filter |
Polyester fiber |
| HEPA Filter |
One,99.995% efficiency at 0.3μm |
| Noise |
≤68dB(A) |
| Illumination |
≥300lx |
| Waterproof Sockets |
One socket (Double type), America standard, Max.Power: 500W |
| Power Supply |
110V±10％V, 60HZ |
| Consumption |
750W |
950W |
950W |
950W |
1150W |
| UV Lamp |
18W*1 |
30W*1 |
30W*1 |
40W*1 |
40W*1 |
| LED Lamp |
10W*1 |
14W*1 |
14W*1 |
18W*1 |
22W*1 |
| Standard Accessory |
Manually height adjustable base stand;
LED lamp;
UV lamp;
Wind speed sensor;
Waterproof socket.
|
| Package Size （W*D*H） |
940*970*1560mm |
1240*970*1560mm |
1440*970*1560mm |
1640*970*1560mm |
1940*970*1560mm |
| Gross Weight |
190kg |
230kg |
265kg |
280kg |
320kg |
Advantage：
1. ETL certified, Satisfy North American market.
2. With memory function in case of power-failure.
3. Audio and visual alarm(Abnormal airflow velocity).
4. Interlock function: UV Lamp and blower LED Lamp.
