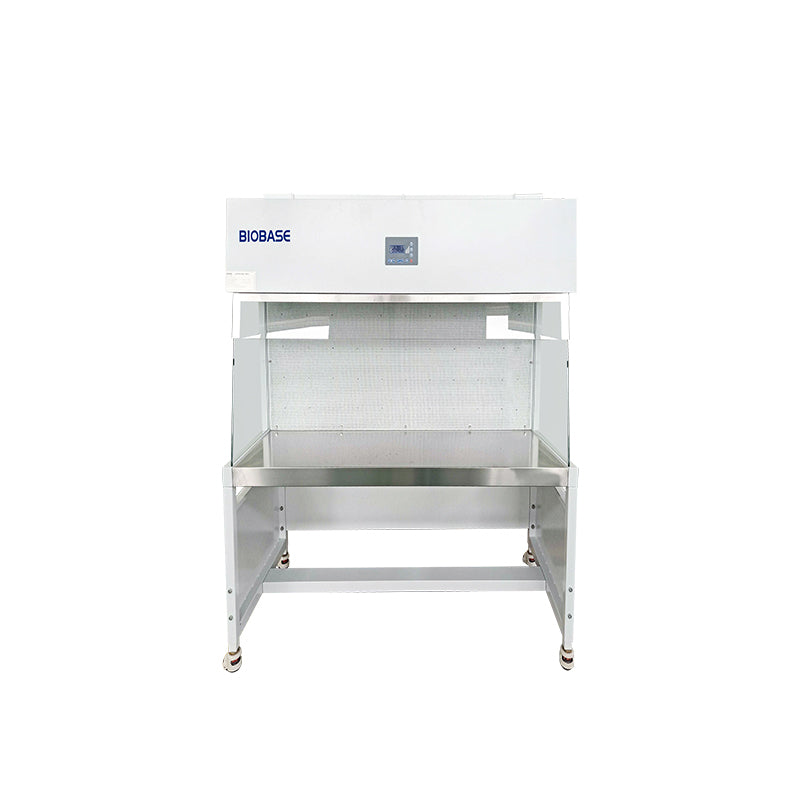

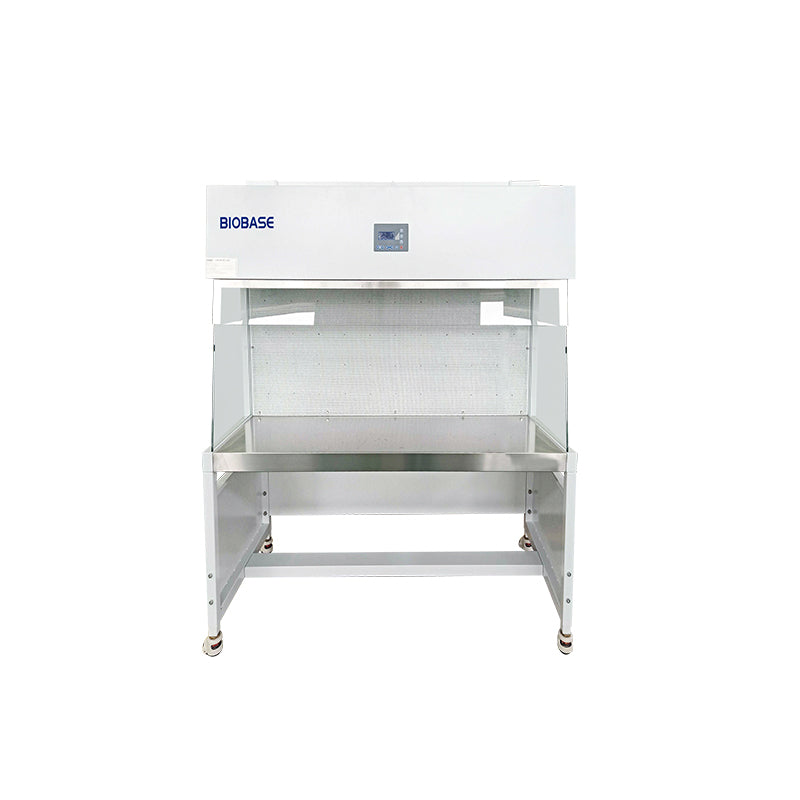

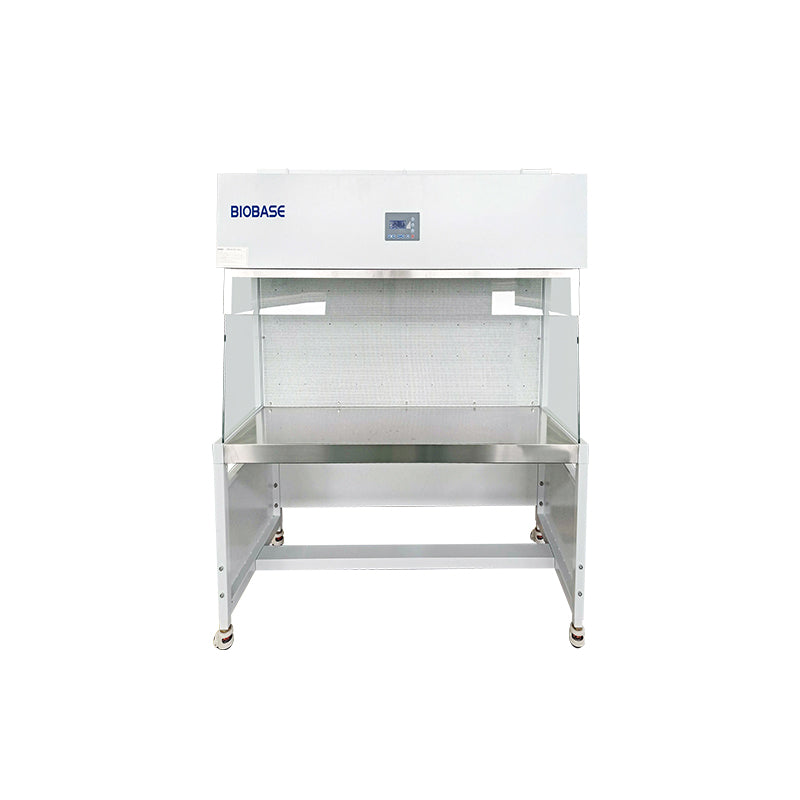

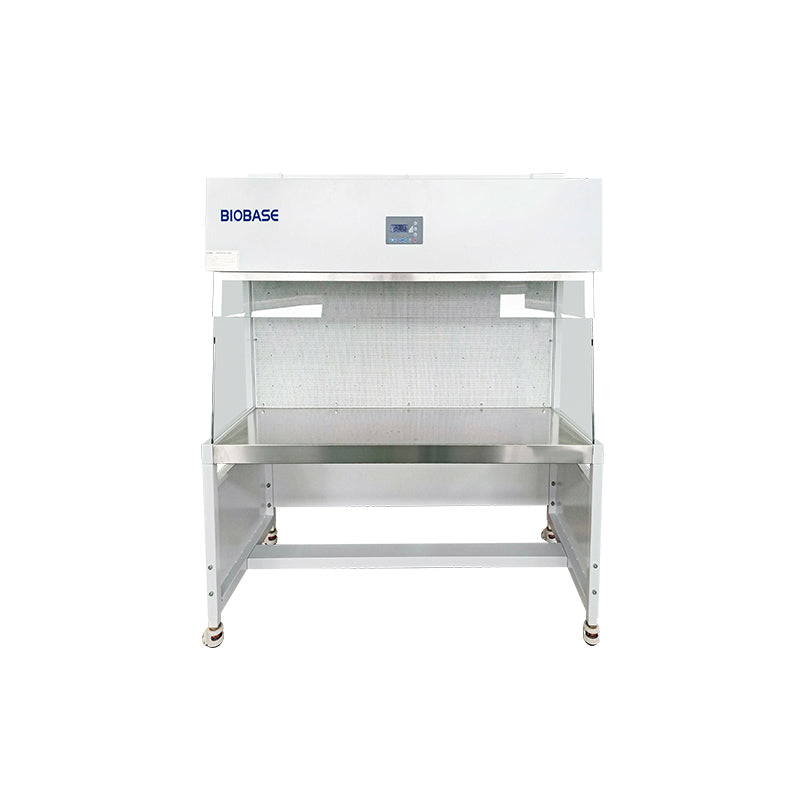

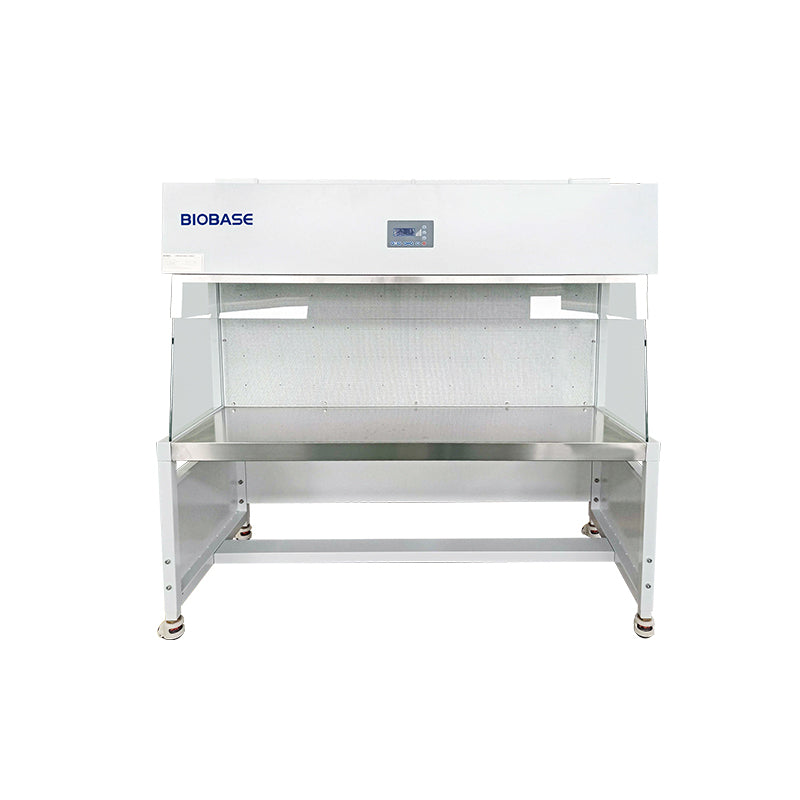

ETL Certified Horizontal Laminar Flow Cabinet BBS-H800,1100,1300,1500
Advantages:
- ETL certification, satisfy North American market.
- With memory function in case of power-failure.
- Audio and visual alarm(Abnormal airflow velocity).
- Interlock function: UV lamp and blower, LED lamp(Only with optional UV lamp).
Models:
| Model |
BBS-H800 |
BBS-H1100 |
BBS-H1300 |
BBS-H1500 |
BBS-H1800 |
| External Size(W*D*H) |
800*810*(1720~1980)mm |
1100*810*(1720~1980)mm |
1300*810*(1720~1980)mm |
1500*810*(1720~1980)mm |
1800*810*(1720~1980)mm |
| Internal Size(W*D*H) |
700*500*600mm |
1000*500*600mm |
1200*500*600mm |
1400*500*600mm |
1700*500*600mm |
| Work Surface Height |
75-~1010mm |
| Max Opening |
480mm |
| Display |
LCD display |
| Airflow Velocity |
80~99fpm |
| Material |
Working area: 304 stainless steel.
Main body: 1.2mm cold-rolled steel with anti-bacteria powder coating.
Front window: 5mm toughened glass, anti-UV.
|
| Pre-Filter |
Polyester fiber |
| HEPA Filter |
One, 99.995% efficiency at 0.3μm |
| Noise |
≤68dB(A) |
| Illumination |
≥300lx |
| Waterproof Sockets |
One socket(Double type), America standard, Max. Power: 500W |
| Power Supply |
110V±10%, 60Hz
|
| Consumption |
750W |
950W |
950W |
950W |
1150W |
| LED Lamp |
10W*1 |
14W*1 |
14W*1 |
18W*1 |
22W*1 |
| Standard Accessories |
Manually height adjustable base stand;
LED lamp;
Wind speed sensor;
Waterproof socket.
|
| Optional Accessories |
Stainless steel. V. Bar with 10 hooks;
UV lamp
|
| Package Size(W*D*H) |
940*1090*1250mm |
1240*1090*1250mm |
1440*1090*1250mm |
1640*1090*1250mm |
1940*1090*1250mm |
| Gross Weight |
150kg |
190kg |
225kg |
265kg |
300kg |
Laminar Flow Cabinet – is used only for sample protection.Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.
