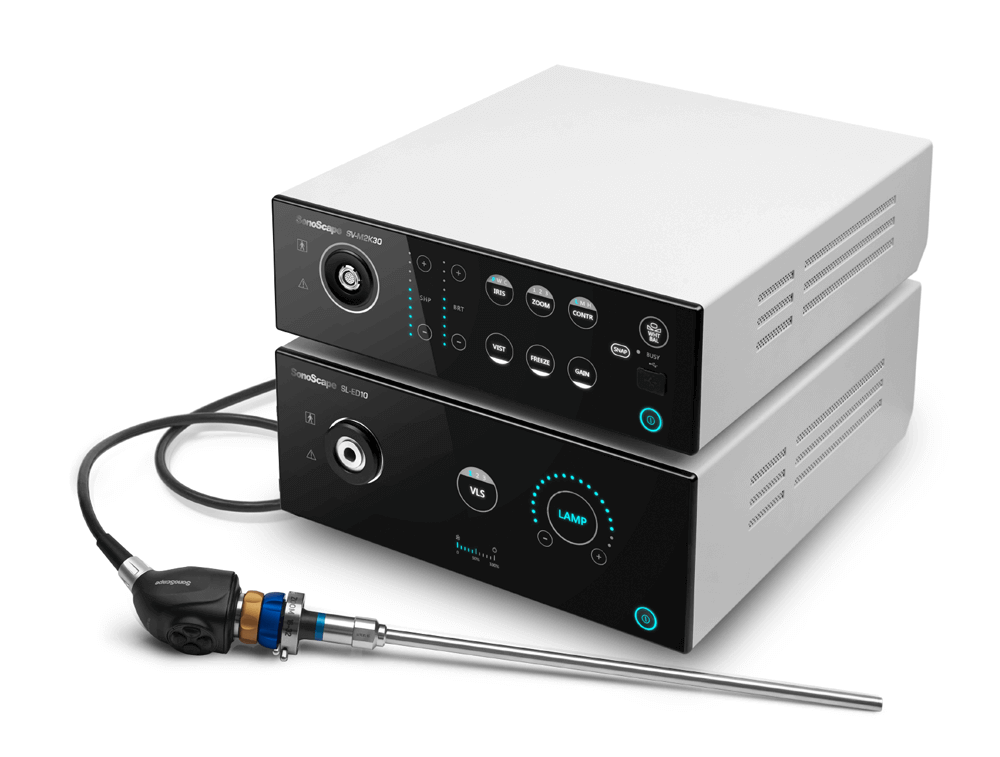

Endoscopy Video Processor SV-M2K30

Endoscopy Video Processor SV-M2K30

The Endoscopy video processor SV-M2K30 offers advanced imaging capabilities for precise medical diagnostics. It delivers high-resolution visuals, supporting both HD and 4K imaging for enhanced clarity during endoscopic procedures.

Characteristics

Feature	Details
Applications	Endoscopy
Options	Integrated LED light source
Type of Imaging	HD imaging, 4K imaging

Imaging System and Technology

• 3CMOS Sensor:
  • Output: 1920 x 1080p with 60 fps FULL HD resolution
  • Provides an optimally defined surgical field of view
  • Enhances the surgeon’s visual experience, supporting delicate procedures with precision
  • Ensures accurate color reproduction, allowing for better differentiation of tissue structures
• VIST Technology:

  VIST Technology is an advanced staining imaging system that enhances visualization during endoscopic procedures by leveraging the variable absorption of hemoglobin at different light wavelengths. It offers both electronic and optical dyeing functions, which significantly enhance the details of mucosal surfaces and blood vessels, ensuring clearer and more precise imaging. This improved clarity aids in the detection of lesions, early-stage cancers, and vascular abnormalities, allowing for more accurate in vivo diagnosis without the need for external dyes. By providing sharper, high-definition views of subtle structures, VIST supports safer, more effective, and minimally invasive surgical procedures, leading to better patient outcomes.

Camera Head

Feature	Details
Sensor	3CMOS FHD image sensor
Buttons	4 customizable buttons
Mount	Universal C-mount
Waterproof Rating	IPX7

Laparoscope Portfolio

Feature	Details
Image Quality	HD
Lens	Scratch-resistant sapphire crystal
Design	Superior sealing for increased durability
Autoclavability	Up to 134℃
Diameter and Viewing Angles	5/10 mm diameter, 0°/30° viewing angles

Medical Grade Monitor

Feature	Details
Display	27-inch surgical display
Resolution	1920 x 1080 full-color HD
Backlight	High brightness LED with stabilization
Viewing Angles	Horizontal: 178°, Vertical: 178°
Sterility Design	IPX5 display panel

Cold Light Source Options

1. Xenon Light Source:
   • Brighter, closer to natural light
   • Realistic and hierarchical image projection
2. LED Light Source:
   • High-intensity and consistent illumination
   • Longer service life than Xenon
   • Minimizes unit downtime and upkeep expenses
   • Environmentally friendly (GREEN)
   • Multi-spectral output improves the detection rate of small lesions
