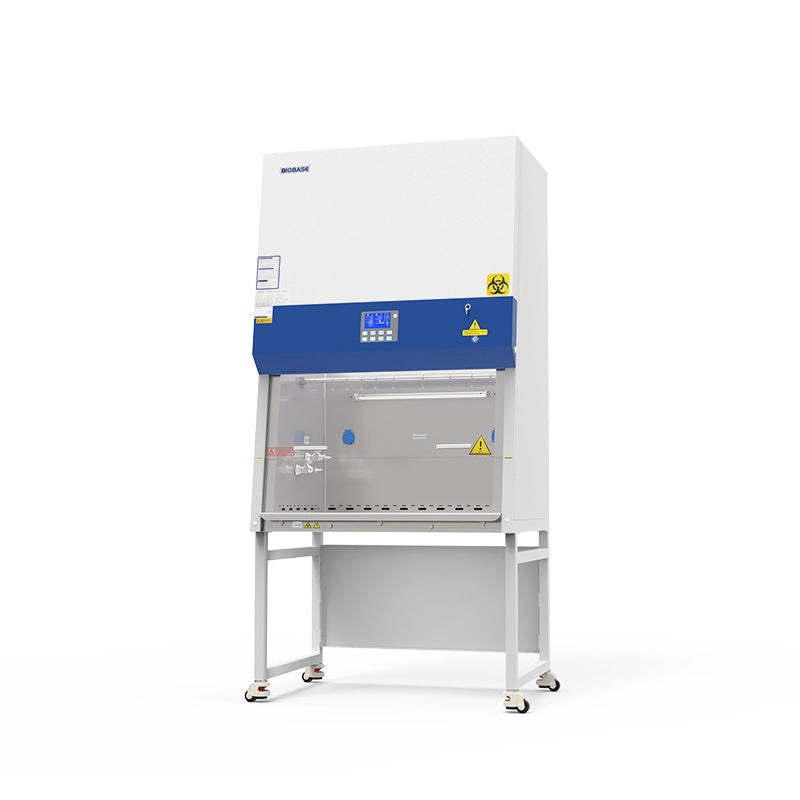

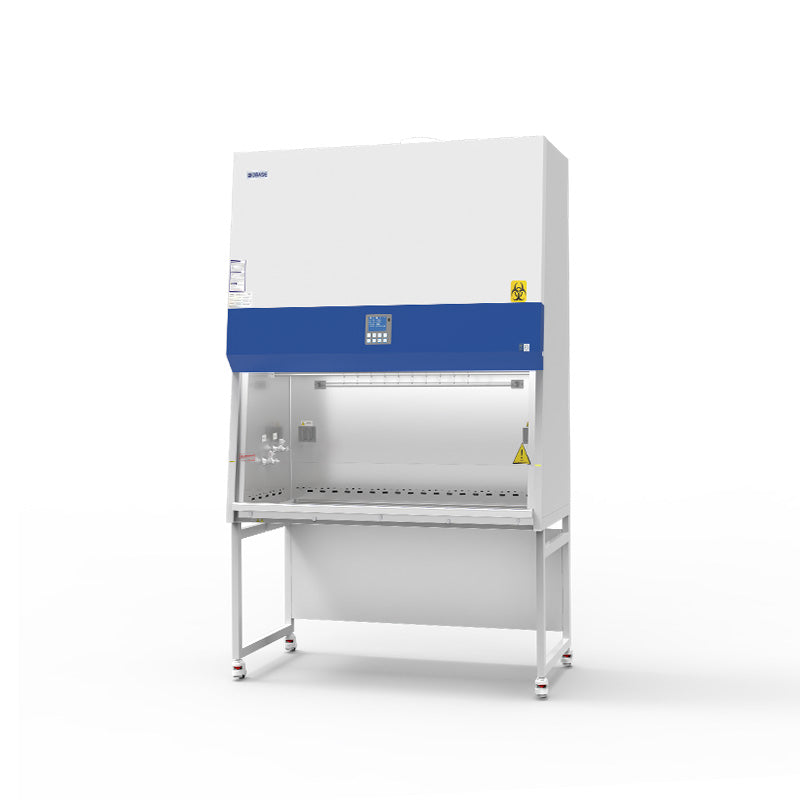

EN Class II A2 Biological Safety Cabinet BSC-3FA2 BSC-4FA2
EN Class II A2 Biological Safety Cabinet
This cabinet defined as class II A2 type microbiological safety cabinet. It totally meets that international standard for biological cabinet EN 12469:2000 standard. Microbiological safety cabinet is a kind of negative pressure filtration system for protecting operator, the laboratory environment and work material.
Three protection: operator, sample and environment. Airflow system: 70% air recirculation, 30% air exhaustA2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Models：
| Model |
BSC-3FA2 |
BSC-4FA2 |
| External Size(W*D*H) |
1087*775*2265mm |
1383*775*2295mm |
| Internal Size(W*D*H) |
910*600*660mm |
1210*660*660mm |
| Work Surface Height |
750mm |
| Max Opening |
520mm (21’’) |
550mm (22’’) |
| Tested Opening |
Safety height 200mm (8’’) |
| Airflow Volume |
Inflow |
348m³/h(205cfm) |
462m³/h(272cfm) |
| Down flow |
65%:649m³/h(382cfm) |
65%:863m³/h(507cfm) |
| Exhaust |
35%:348m³/h(205cfm) |
35%:462m³/h(282cfm) |
| Front Window |
Manual. Two-layer laminated toughened glass ≥5mm. Anti UV |
| HEPA Filter |
Two, 99.995% efficiency at 0.3um, filter life indicator |
| Filter Guard Type |
Aluminum alloy frame |
| Noise |
EN 12469≤65db |
| Illumination |
≥1000Lux |
| Display |
LCD Display |
| Waterproof Socket |
2, Total consumption:≤500W |
| Tap |
Water tap*1, Gas tap *1 |
| Ground Resistance |
≤ 0.10Ω |
| Power Supply |
AC230V, 50Hz |
| Consumption |
≤550W |
≤650W |
| Alarm |
Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
| Motor |
One ECM motor, 110V& 220V acceptable, Speed adjustable,
high efficiency and low power consumption |
| Material |
Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with
anti-bacteria power coating |
| UV Lamp |
20W |
30W |
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination |
| LED Lamp |
10W*2 |
18W*2 |
| Standard Accessory |
Fluorescent lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve,
Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks. |
| Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer,
Adjustable base stand, Remote control, Motorized front window,
Height adjustable base stand |
| Package Size (W*D*H) |
1240*1060*1900mm |
1540*1080*1900mm |
| Gross Weight |
270kg |
340kg |
Advantage:
1. Large LCD display, all information displayed.
2. Automatic air speed adjustable with filter block.
3. With memory function in case of power-failure.
4. Side & back wall is made up of single piece stainless steel.
5. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
