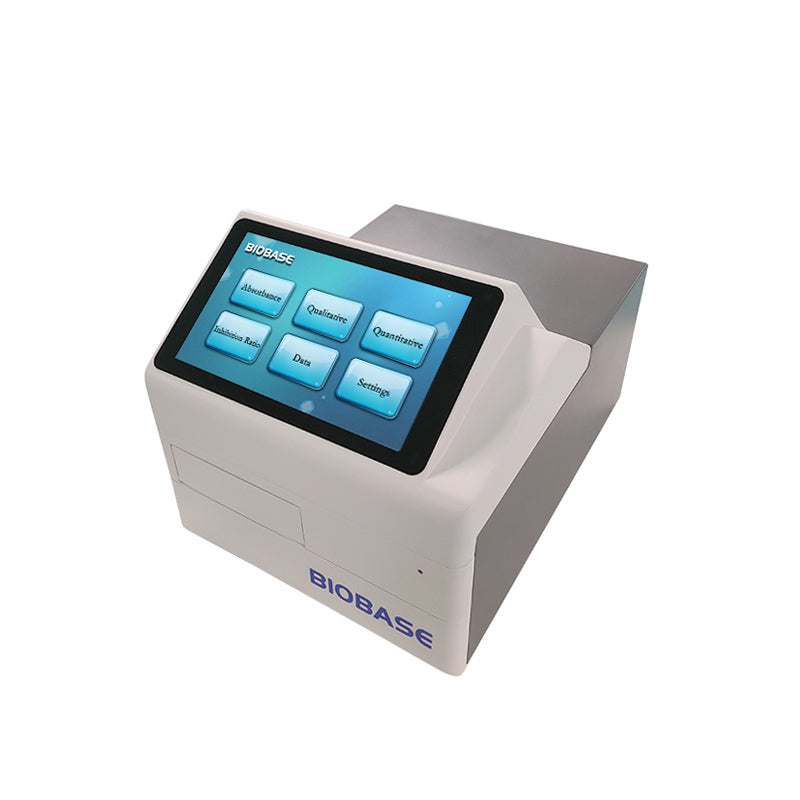

ELISA Microplate Reader BK-EL10A BK-EL10B BK-EL10C BK-EL10D
Models:
| Model |
BK-EL10A |
BK-EL10B |
BK-EL10C |
BK-EL10D |
| Measurement Channel |
Vertical 8 optical channels |
| Plate Type |
96-well microplate |
| Wavelength Range |
400 ~ 750nm |
340 ~ 850nm |
| Filter |
Standard 4 wavelengths of 405, 450, 492, 630nm(BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm(BK-EL10D)
Optional: Up to 10 wavelengths.
|
| Reading Range |
0.000 ~3.000Abs |
0.000 ~ 4.000Abs |
0.000 ~4.500Abs |
| Linear Range |
0.000 ~3.000Abs |
0.000 ~3.500Abs |
| Resolution |
0.0001Abs |
| Repeatability |
CV≤1.0% |
CV≤0.2% |
| Stability |
≤±0.005Abs |
≤±0.003Abs |
| Sensitivity |
≥0.01 mg/L |
| Channel Difference |
≤0.02Abs |
| Vibration Plate Function |
3 kinds of vibration plate function, adjustable 0~255s(BK・EL10A, BK-EL10B, BK-EL10C)
5 kinds of vibration plate function, adjustable 0~255s(BK-EL10D)
|
| Incubation Function |
Time Range: 0~60min Temp. Range: RT +4P~50P (Only for BK-EL10D) |
| Power Supply |
AC100-240V, 50760Hz |
| Instrument Size(W*D*H) |
450*320*300mm |
450*320*190mm |
450*320*300mm |
495*340*370mm |
| Package Size(W*D*H) |
540*400*460mm |
585*425*405mm |
610*440*475mm |
| Net/Gross Weight |
13/15kg |
10/12kg |
11/13kg |
12/14kg |
Advantage:
1 .10.1-inch large touch screen operation.(Except BK-EL10B)
2 .High precision and accurate results.
3.Software: Single wavelength and double wavelengths detection methods.
