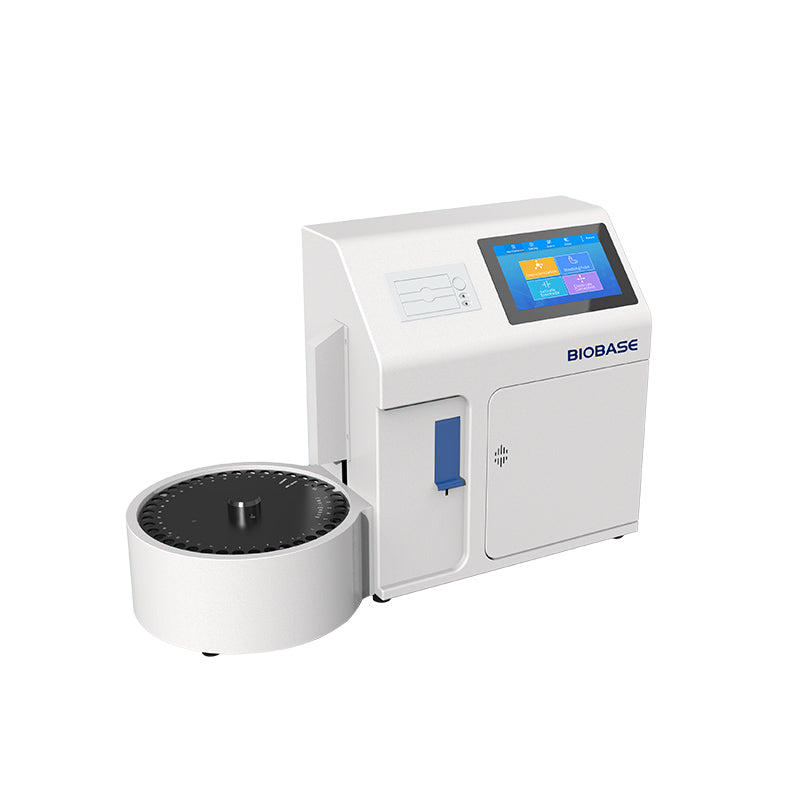

Electrolyte Analyzer BKE Series
Features:
●The software supports automatic potential tracking correction to ensure stable performance
●Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy
●Wave flushing and pipeline flushing can avoid blockage and cross-contamination
●Power-off protection, can protect data storage, the result can be stored up to 50,000
●Low consumption, effectively reducing the cost of consumables
●7-inch high-definition touch screen, comprehensive content display
●With the function of automatic fault alarm and elimination, improve work efficiency
Parameters:
| Model |
BKE Series |
| Sample |
Serum, plasma, whole blood, cerebrospinal fluid and dilute urine |
| Measuring Speed |
≤25s |
| Analysis Method |
Ion selective electrode (ISE) |
| Sample Volume |
60~150μl |
| Sample Position |
30 sample positions, 5 emergency positions, 2 QC positions |
| Injection mode |
Manual or automatic injection can be selected |
| Storage |
Up to 50,000 test results |
| Printer |
Build-in thermal printer |
| Interface |
RS232 portfor LIS |
| Display |
7-inch high-definition touch screen |
| Language |
Chinese and English, other languages can be customized |
| Calibration |
Automatic and Manual calibration |
| Other Function |
Sample volume detection |
|
Power Supply |
AC110~240V,50/60Hz, 100W |
| Temperature |
10~30℃ |
| Relative Humidity |
≤ 80 % |
| Atmospheric Pressure |
86~106 kPa |
| Model |
BKE-A |
BKE-B |
BKE-C |
BKE-D |
| Test Items |
K+, Na+, Cl-
|
K+, Na+, Cl-
|
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH |
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH |
| Sample Tray |
No |
Yes |
No |
Yes |
| External Size(W*D*H) |
390*200*434mm |
660*276*434mm |
390*200*434mm |
660*276*434mm |
| Net Weight |
6.85kg |
10.3kg |
6.85kg |
10.3kg |
| Package Size(W*D*H) |
540*420*520 mm |
540*420*705 mm |
540*420*520 mm |
540*420*705mm |
| Gross Weight |
7.5kg |
10.95kg |
7.5kg |
10.95kg |
| Items |
Measuring Range |
Resolution |
| K+
|
0.5-20.0mmol/L |
0.01 mmol/L |
| Na+
|
15-200mmol/L |
0.1 mmol/L |
| Cl-
|
15-200mmol/L |
0.1 mmol/L |
| Ca2+
|
0.1-6.0mmol/L |
0.01 mmol/L |
| pH |
4-9pH |
0.01 pH |
Introduction:
BKE series electrolyte analyzer adopts advanced ion selective electrode measurement technology, which can directly measure the concentration of K+, Na+, Cl-, Ca2+ and pH in serum, plasma, whole blood, cerebrospinal fluid and diluted urine. It is a fast, accurate, convenient and practical clinical testing instrument.
