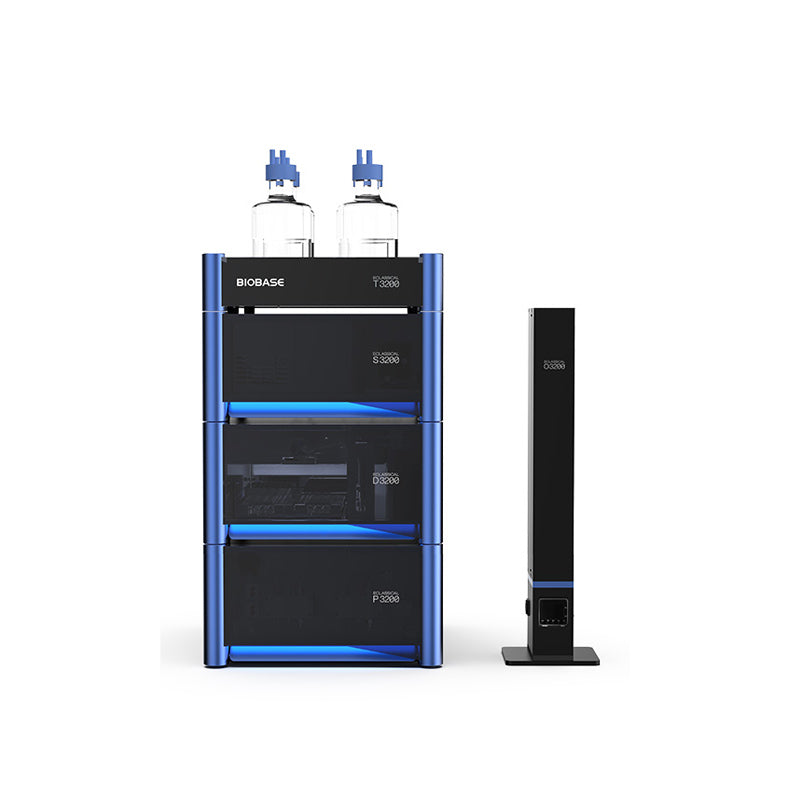

EClassical 3200 High Performance Liquid Chromatography System
Characteristics:
* Classic, inherited product reliability for more accurate and consistent results.
* Professional, national standard technology leader, making more effective and applicable.
* Eficient, perfectly superb compatibility makes more convenient and easier.
O3220 Column Oven:
| Temperature range |
Ambient + 5 °C〜80 °C |
| Accuracy |
±0.5 °C |
| Precision |
≤0.1 °C |
| Power |
AC220V±10%, 50 Hz/130 W |
| Dimensions /Weight |
435*137*450 mm (L* W*H)/11 kg |

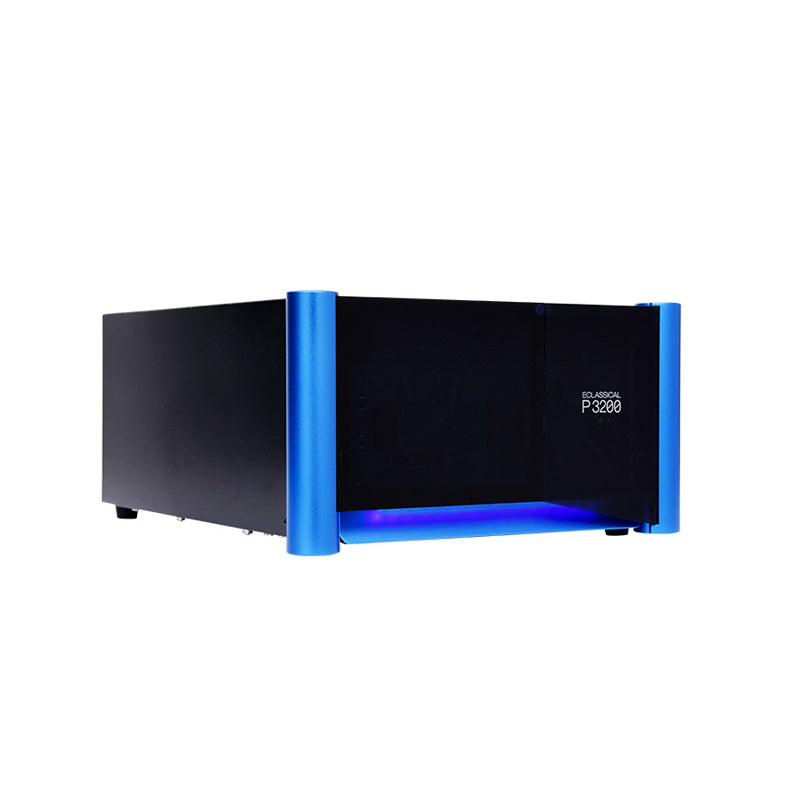

P3220 High-Pressure Constant Flow Pump:
| Flow Range |
0.001 ~10.000 mL/min (step 0.001 mL/min) |
| Accuracy |
≤±0.2% |
| Precision |
≤0.06% RSD |
| Pressure Range |
0-70 MPa |
| Communication Methods |
UDP Network Communication |
| Power |
AC 220 V±10%, 50 Hz/300 W |
| DimensionsAA/eight |
450*350*185 mm (L* W*H)/18 kg |
P3230 Low Pressure Quaternary Pump:
| Flow Range |
0.001 ~10.000 mL/min (step 0.001 mL/min) |
| Accuracy |
≤±0.2% (1.00ml/min, H2O, R.T 8.5MPa) |
| Stability |
<0.06% (1.00m/min, H2O, R.T, 8.5MPa) |
| Maximum Pressure |
63MPa |
| Pulsation |
≤0.1MPa(1.00m/min, H2O, R.T, 8.5MPa) |
| Communication Methods |
UDP Network Communication |
| Power |
AC 220 V±10%, 50 Hz/150 W |
| Dimensions/Weight |
440*380*180 mm (L* W*H*)/18 kg |

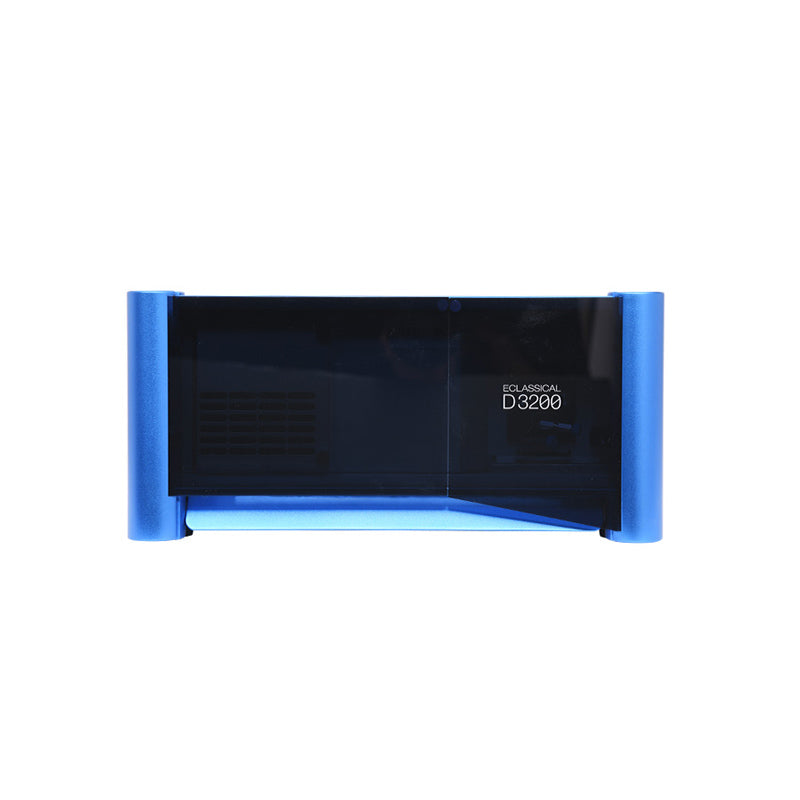

D3210 UV-Vis Detector:
| Linearity |
≥2.5 AU |
| Wavelength Range |
190-800 nm |
| Wavelength Repeatability |
±0.1nm |
| Wavelength Accuracy |
±1.0nm |
| Noise |
＜1.5*1 0'5 AU (Single wavelength)
≤5.0*10'5 AU (Double wavelength) |
| Drift |
≤2.0*10^4AU/h |
| Light Source |
Deuterium Lamp, Tungsten Lamp |
| Optical Path |
Dual beam optical path |
| Response Time |
0.1 ~5s |
| Sampling Frequency |
5Hz10Hz20Hz50Hz; Double wavelength 1Hz |
| Cell |
Optical path 10 mm; Proof pressure 1000psi |
| Communication Methods |
UDP Network Communication |
| Power |
AC 220 V±10%, 50/60 Hz/100 W |
| Dimensions/Weight |
440*378*160 mm (L*W*H*)/10 kg |
Technical Parameters:
| Model |
BK-LCB3200 |
BK-LCDB3200 |
BK-LCQL3200 |
| Pump |
P3220*1 |
P3230*1 |
| Detector |
D3210*1 |
| Solvent Switching Module |
/ |
Solvent switching module (built in high pressure pump)*1 |
/ |
| Solvent Bottle Tray |
T3200*1 |
| Sampler Injector |
Rheodyne 7725i*1 |
| Column |
Supersil ODS2 5pm ID4.6*250mm *1 |
| Workstation |
Kromstation*1 |
| Valve Mounting Frame |
VB3200*1 |
| Multifunctional Mounting Frame |
MB3200*1 |
| Column Mounting Frame |
CB3200*1 |
| System Kit |
EClassical 3200*1 |
| Power Supply |
AC220V±10%, 50Hz |
| Optional Accessory |
Auto-sampler, Column, O3220Column
Oven, D3270 Evaporative Light
Scattering Detector, RI-201H Differential Refractive Index Detector,
D3250 Fluorescence Detector
Solvent bottle 1000ml *2
|
Auto-sampler, Column, O3220Column Oven,
D3270 Evaporative Light Scattering Detector,
RI-201H Differential Refractive Index Detector,
D3250 Fluorescence Detector
Solvent bottle 1000ml *4
|
| Package Size(W*D*H) |
580*470*370mm*3 |
580*470*370mm*3 |
| Gross Weight |
43kg |
43kg |
