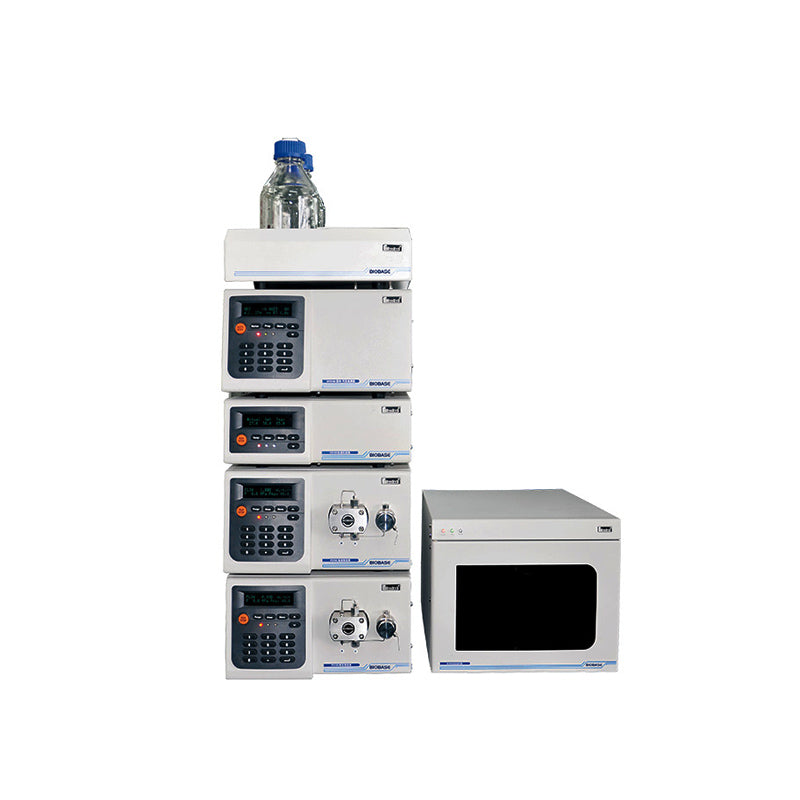

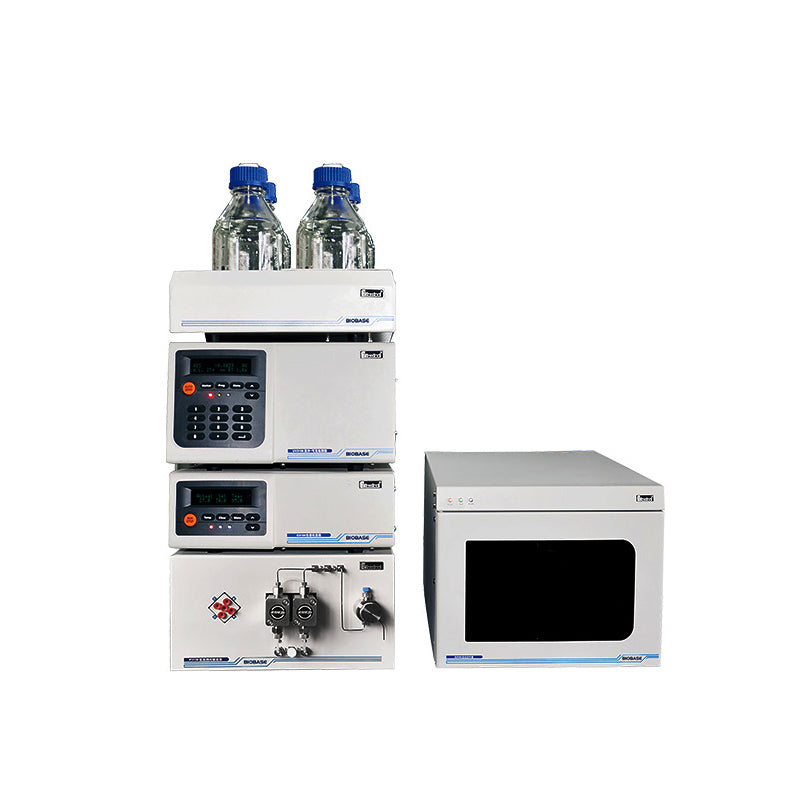

EClassical 3100 High Performance LiquidChromatography System

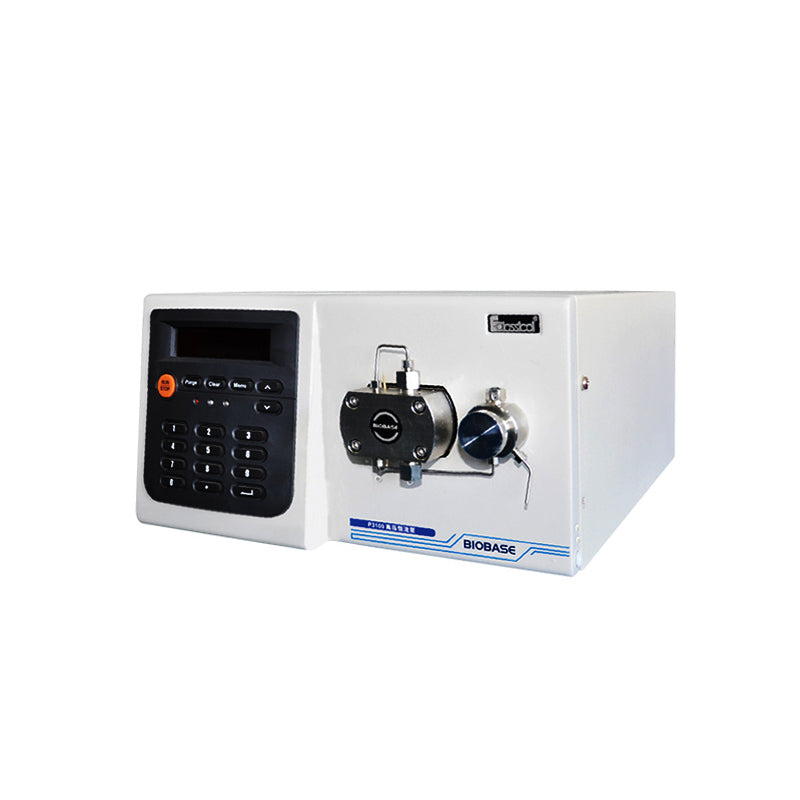

P3100 High-Pressure Constant Flow Pump:
| Flow Range |
0.001 〜10.000 mL/min (step 0.001 mL/min) |
| Accuracy |
≤±0.2% |
| Precision |
≤0.06% RSD |
| Pressure Range |
0-45 MPa |
| Power |
AC 220 V±10%, 50 Hz/80 W |
| Dimensions/Weight |
420*300*175 mm (L* W*H*)/12 kg |

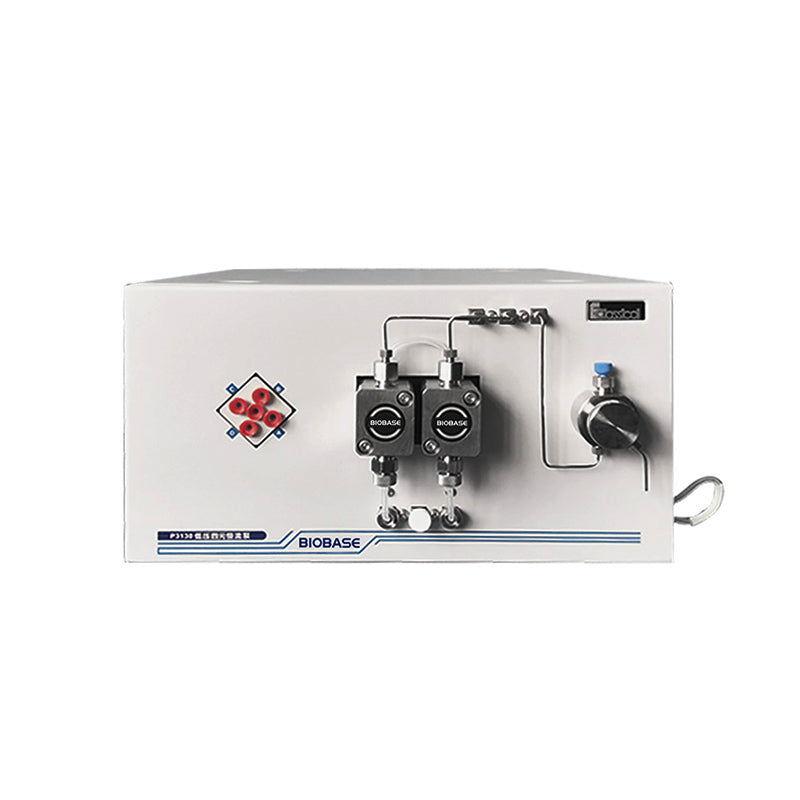

P3130 Low-Pressure Quaternary Constant Flow Pump:
| Flow Range |
0.001 〜10.000 mL/min (step 0.001 mL/min) |
| Gradient Accuracy |
≤±1% |
| Retention Time Repeatability |
≤0.1% |
| Maximum Working Pressure |
63 MPa |
| Communication Methods |
UDP Network Communication |
| Mixed Volume |
750μL |
| Power |
AC 220 V±10%, 50 Hz/100 W |
| Dimensions/Weight |
400*300*180 mm (L* W*H*)/15kg |

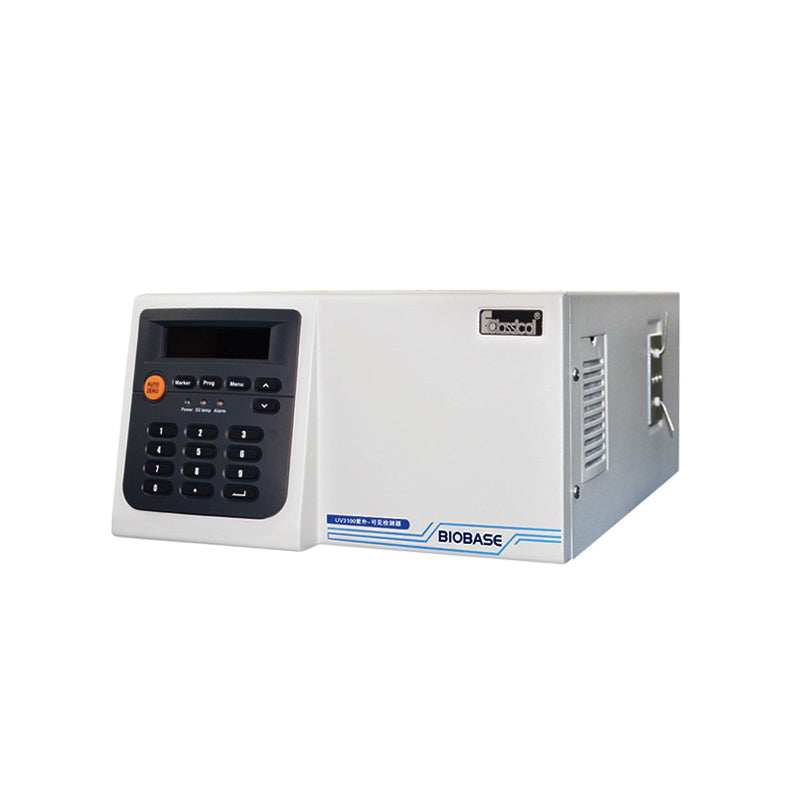

UV3100 UV-Vis Detector:
| Linear |
2.0 AU |
| Wavelength Range |
190〜700 nm |
| Noise |
≤±0.5,105 AU |
| Drift |
≤1.0*104 AU/h |
| Cell |
Analytical: Optical path 10 mm, 11 μL Semi-prep scale: Optical path 2 mm, 6 μL |
| Power |
AC 220V±10%, 50 Hz/100 W |
| Dimensions/Weight |
420*300*175 mm (L*W*H)/16 kg |

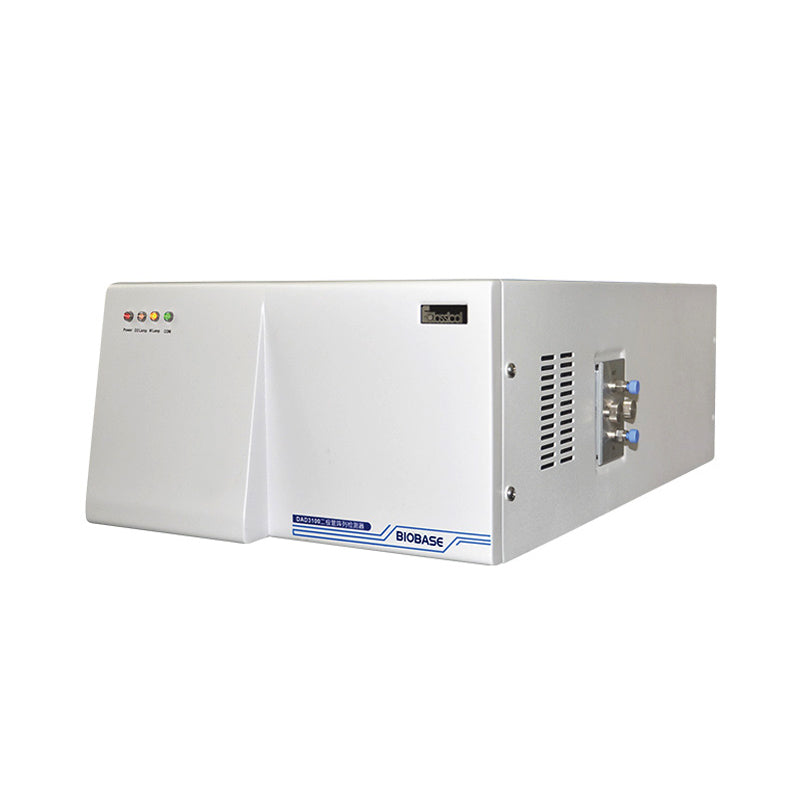

DAD3100 Diode Array Detector:
| Linear |
≥2.0 AU |
| Wavelength Range |
190〜800 nm |
| Noise |
≤±1.0M0 5 AU |
| Drift |
≤2.0*104 AU/h |
| Power |
AC220 V±10%, 50 Hz/180 W |
| DimensionsA/Veight |
500*300*175 mm (L*W*H) /18 kg |

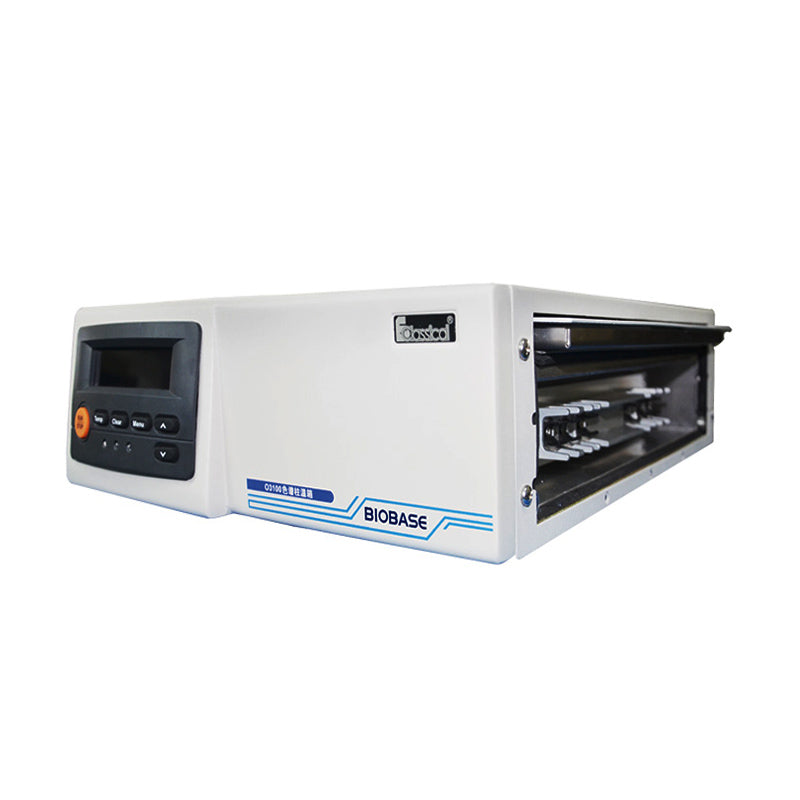

O3100 Column Oven:
| Temperature Range |
Ambient + 5 °C 〜85 °C |
| Accuracy |
±0.3 °C |
| Precision |
≤0.1 °C |
| Power |
AC220 V±10%, 50 Hz/130 W |
| Dimensions /Weight |
420*300*120 mm (L* W*H)/7 kg |
Technical Parameters:
| Model |
BK-LCI3100 |
BK-LCGH3100 |
BK-LCQL3100 |
BK-LCQL3100D |
| Pump |
P3100*1 |
P3100*2 |
P3130*1 (With mixer) |
| Detector |
UV3100*1 |
DAD3100 512*1 |
| Gradient Mixer |
/ |
TD-1-15*1 |
/ |
| Solvent Bottle Tray |
TP3100*1 |
| Sampler Injector |
Rheodyne 7725i*1 |
| Column |
Supersil ODS2 5pm ID4.6*200mm*1 |
| Workstation |
Kromstation*1 |
Kromstation+PAD |
| AD Adapter |
/ |
AD adapter + startup kit |
| Valve Mounting Frame |
ZJ-1*1 |
ZJ-4*1 |
| Degasser |
/ |
DG3110*1 |
| System Kit |
EClassical 3100*1 |
| Power Supply |
AC220V±10%, 50Hz |
| Optional Accessory |
500ml Solvent bottle*2, Column, Column Oven, S3100 Auto-sampler, Degasser |
500ml Solvent bottle*4, Column, Column Oven, S3100 Auto-sampler |
| Package Size (W*D*H) |
600*440*380mm*2 |
600*440*380mm*3 |
600*440*380mm*2
320*190*230mm*1
|
600*440*380mm*2
320*190*230mm*1
500*360*100mm*1
|
| Gross Weight |
30kg |
45kg |
34kg |
39kg |
