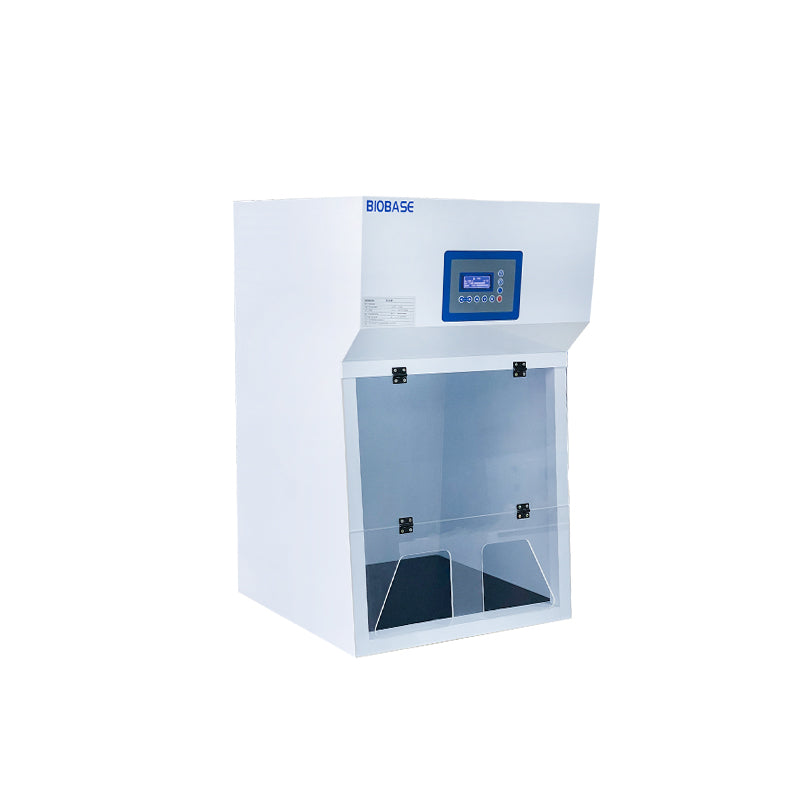

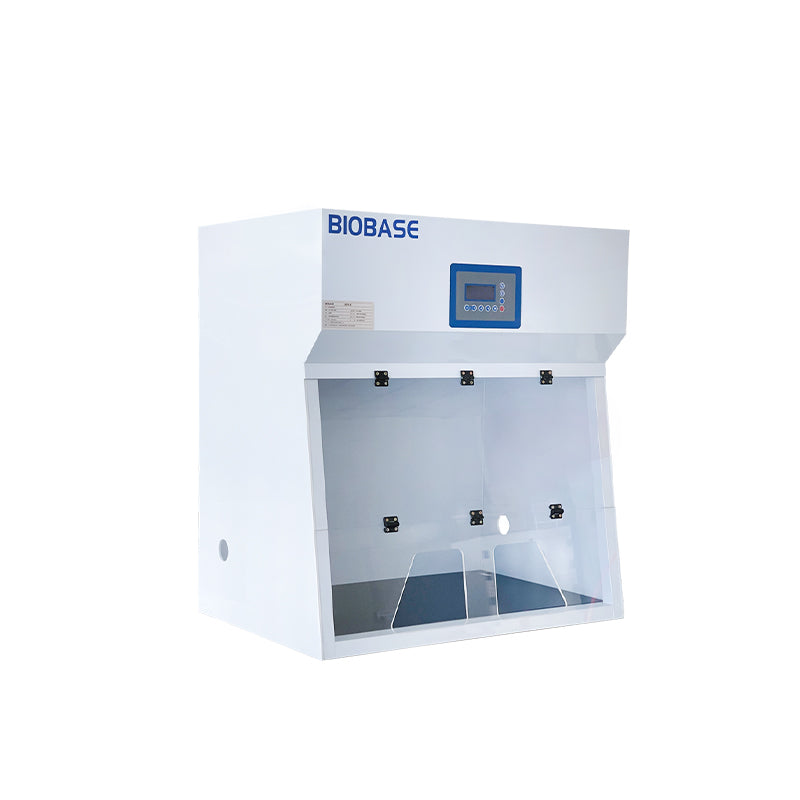

Ductless PP Fume Hood FH700(PD) FH1000(PD)
ADVANTAGE
* The case is made of 8mmPP plate, with good finish and corrosion resistance.
* The front window has 8°physiological incline, ergonomic design, larger viewing angle.
* The front window is foldable acrylic window, and the lower acrylic window has the function of stopping at will.
* Electronic control system with anti-overload, anti-shock and other functions, stable performance, long service life.
* With power failure memory function, that is, when encountering a sudden power failure, power again can maintain the working state before the power failure, convenient experimental operation.
TECHNICAL PARAMETERS
| Model |
FH700(PD) |
FH1000(PD) |
| External Size |
700*700*1100mm |
1000*700*1100mm |
| Internal Size |
680*606*688mm |
980*606*688mm |
| Max Opening |
640mm |
| Airflow Volume |
230 m³/h |
| Air Velocity |
0.3~0.8m/s |
| Noise |
≤65dB(A) |
| LED Lamp |
15W |
| Illumination |
≥400lx |
| Blower |
Built-in centrifugal blower |
| Power Supply |
220V, 50/60Hz |
| Consumption |
150W |
| Material |
Main Body: PP plate, thickness 8mm
Work Table: Chemical resistant phenolic resin
|
| Standard Accessory |
Active carbon filter*2 |
| Optional Accessory |
Water tap, Gas tap, Water sink, Base stand, UV lamp, HEPA filter |
| Net Weight |
67kg |
85kg |
| Gross Weight |
87kg |
115kg |
| Package Size |
820*820*1280mm |
1120*820*1280mm |
The case is made of 8mmPP plate, with good finish and corrosion resistance.
