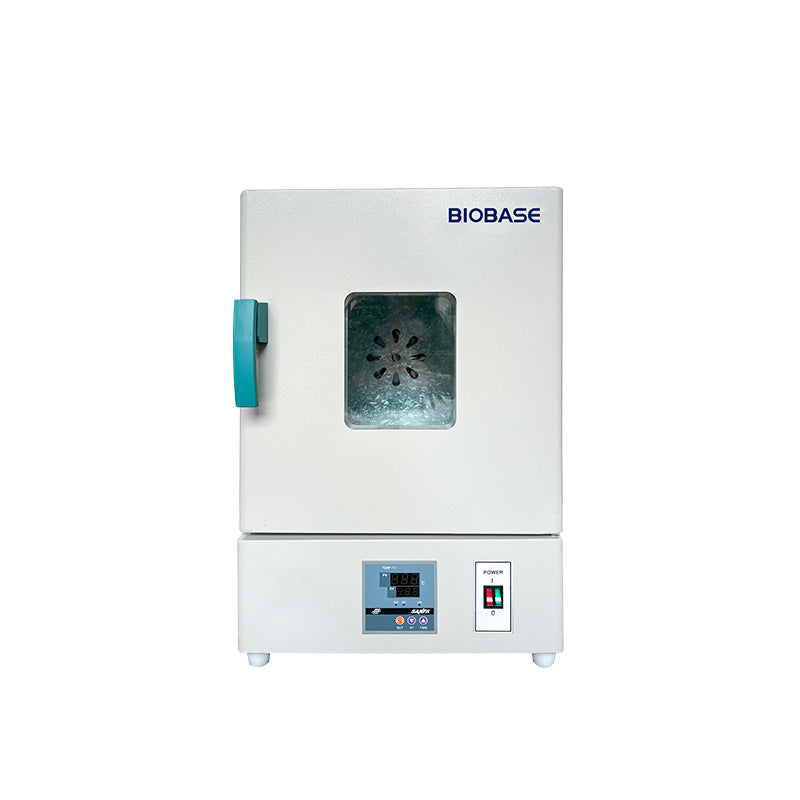

Drying Oven/Incubator (Dual Purpose) BOV-D35S BOV-D50S BOV-D70S BOV-D140S BOV-D240S
Feature:
Inner bladder of mirror stainless steel, four corners rounded, easy for cleaning, space between shelves adjustable.
Microcomputer-based smart controller, temperature control of high prevision and reliability, protection against excessive temperature, sensor failure, creepage, over-current, etc., sound & light alarming, timing function.
Forced hot air circulation design to ensure temperature uniformity in the operating chamber.
Silicon rubber sealing and double- -layer observation window, making observation easy.
Optional RS-485 portal for connection with embedded printer, enabling record of variations of temperature parameters. (optional)
Technical parameter:
| Model |
BOV-D35S |
BOV-D50S |
BOV-D70S |
BOV-D140S |
BOV-D240S |
| Capacity |
35L |
50L |
70L |
140L |
240L |
| Temp. Range |
Incubator: RT+5~60℃; Oven: 80~250℃ |
| Temp. Resolution |
0.1℃ |
| Temp. Fluctuation |
Incubator: ±0.5℃; Oven: ±1℃ |
| Timing Range |
1-9999min |
| Shelves No. |
2 |
| Ambient Temp |
+5~35℃ |
| Power Supply |
AC220±22V 50/60Hz (Standard);
110V 60Hz (Optional)
|
| Consumption |
500W |
700W |
1000W |
1500W |
2000W |
| Internal Size（W*D*H) mm |
300*300*350 |
415*370*345 |
350*450*450 |
450*550*550 |
500*600*750 |
| External Size（W*D*H) mm |
420*460*660 |
520*620*800 |
480*610*820 |
580*710*920 |
630*750*1120 |
| Package Size (W*D*H) mm |
520*560*760 |
620*720*900 |
580*710*920 |
680*810*1020 |
730*850*1220 |
| Gross Weight |
35kg |
55kg |
55kg |
70kg |
90kg |
Application:
This product has a wide application for both drying and culturing. Being a product of high quality and reliability, it can be of direct help in colleges & universities, scientific research institutes and production. It makes it possible for the users to save the space and enhance work efficiency.
