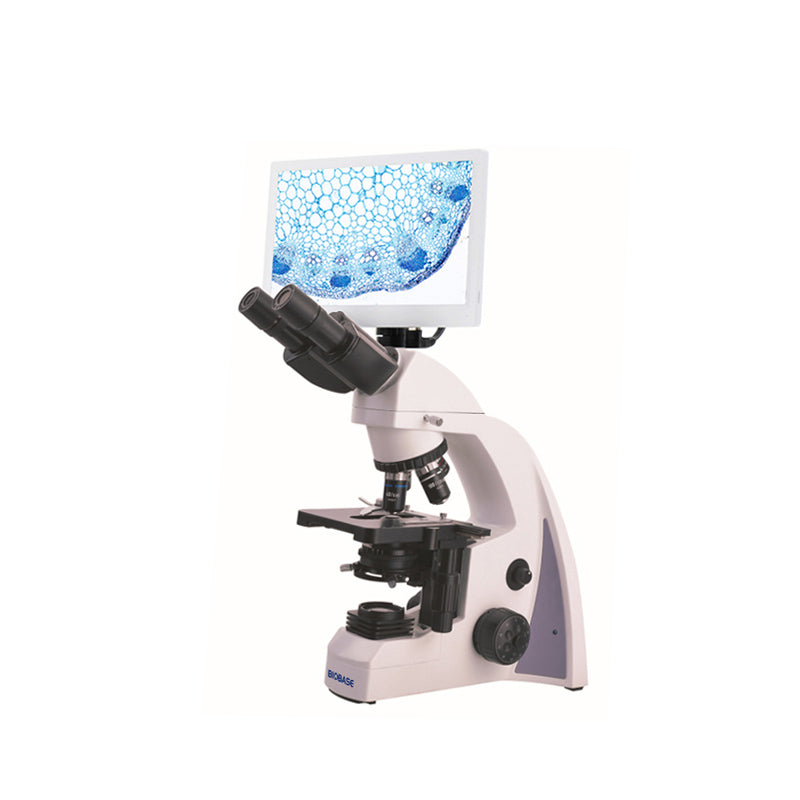

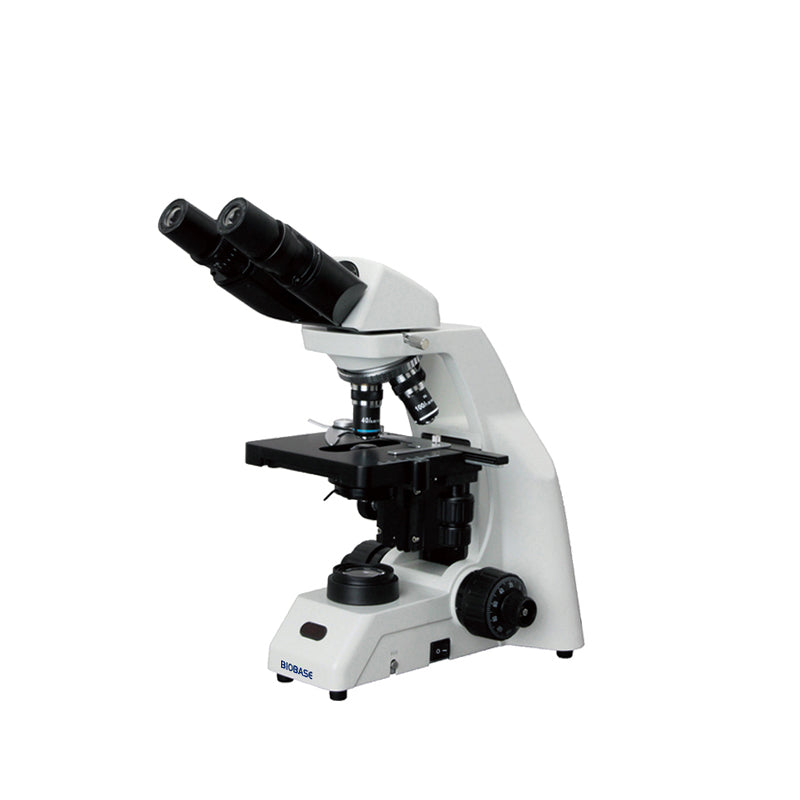

DM-125 DM-300M Lcd Digital Microscope With Lcd Screen
Technical Parameters:
| Model |
DM125 |
DM-300M |
| Optical System |
Infinite Optical System |
/ |
√ |
| Finite Optical System |
√ |
/ |
| Viewing Head |
Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm |
√ |
/ |
| Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm |
● |
/ |
| Seidentopf Binocular Viewing Head, 30° Inclined, Interpupillary 48-75mm |
/ |
√ |
| Seidentopf Trinocular Viewing Head, 30° Inclined, Interpupillary 48-75mm |
/ |
● |
| MD101Microscope Camera with HD Monitor, 5M pixels, Colour CMOS |
● |
● |
| Eyepiece |
Wide Field Eyepiece WF 10×/18 |
√ |
√ |
| Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment |
/ |
● |
| Objective |
Achromatic Objective 4×,10×,40×,100× |
√ |
/ |
| Infinite Semi-plan Achromatic Objectives 4×,10×,40×,100× |
/ |
√ |
| Infinite Plan Achromatic Objectives 4×,10×,40×,100× |
/ |
● |
| Nosepiece |
Backward Quadruple Nosepiece |
√ |
/ |
| Quadruple Nosepiece |
/ |
√ |
| Stage |
Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm |
√ |
√ |
| Condenser |
NA1.25 Abbe Condenser |
√ |
/ |
| Sliding-in Centerable condenser NA1.25 |
/ |
√ |
| Dark Field Condenser (Dry, Oil) |
● |
/ |
| Focusing System |
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,
Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation,
Moving Range 20mm |
/ |
√ |
| Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm |
√ |
/ |
| Illumination |
6V/ 20W Halogen Lamp, Brightness Adjustable |
● |
● |
| S-LED Illumination, Brightness Adjustable |
√ |
√ |
| Accessories |
Phase Contrast Kit, Fluorescent Attachment, Polarization Set |
● |
● |
| Power Supply |
AC 110~220V, 50/60HZ |
√ |
√ |
| Packing Size(mm) |
380*270*470mm (DM-125 Main body) 350*350*640(DM-300M) |
√ |
√ |
| Gross Weight(kg) |
8.5(DM-125 Main body); 12(DM-300M) |
√ |
√ |
Note: √ Standard Outfit, ● Optional, Without this feature Trinocular microscope can be installed camera and screen.
Features:
＊ The integration of structure design, to save space
＊ Valid mouldproof design, it can be used under the high temperature and high humidity environment
