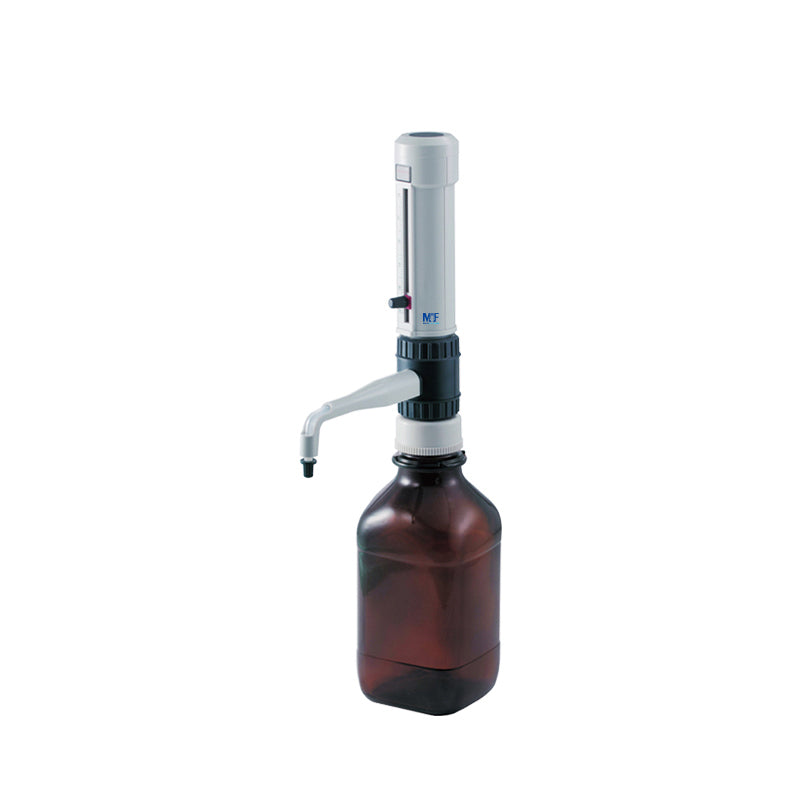

DispensMate Bottle-Top Dispenser
Technical Parameters:
Volume
Range |
Graduation |
A≤± |
CV≤ |
| 0.5-5ml |
0.1ml |
0.5% |
25μl |
0.1% |
5μl |
| 1.0-10ml |
0.2ml |
0.5% |
50μl |
0.1% |
10μl |
| 2.5-25ml |
0.5ml |
0.5% |
125μl |
0.1% |
25μl |
| 5.0-50ml |
1.0ml |
0.5% |
250μl |
0.1% |
50μl |
A = Accuracy; CV = Coefficient of variation.
Ordering Information:
| Cat. No. |
Volume Range |
| 7012100101 |
0.5-5ml |
| 7032100002 |
1-10ml |
| 7012100103 |
2.5-25ml |
| 7032100004 |
5-50ml |
| Cat. No. |
Volume Range |
| Standard Accessories |
| 17000069 |
S40, Adapter, 45/40mm |
| 17400017 |
GL32, Adapter, 45/32mm |
| 17400018 |
GL38, Adapter, 45/38mm |
| 17400019 |
GL25, Adapter, 32/25mm |
| 17400020 |
GL28, Adapter, 32/28mm |
| 17400021 |
Filling tube (m) |
| 17400073 |
Discharge tube (m) |
| Optional Accessories |
| 17400037 |
Reagent Bottle (Brown, 1L) |
Features:
*Excellent chemical resistance
*Fully autoclavable at 121°C
*Easy to clean and maintain
*Made of PTFE、FEP、BSG、PP
*Four ranges of bottle-top dispenser cover a volume
range from 0.5ml to 50ml
*The optional flexible discharge tube with safety handle permits fast and precise dispensing
*Vapor pressure Max. 500mbar, viscosity max. 500mm2/s, temperature max. 40°C, density max. 2.2g/cm3
*DispensMate plus is supplied with S40, GL32, GL38, GL25, GL28 sized adapters
