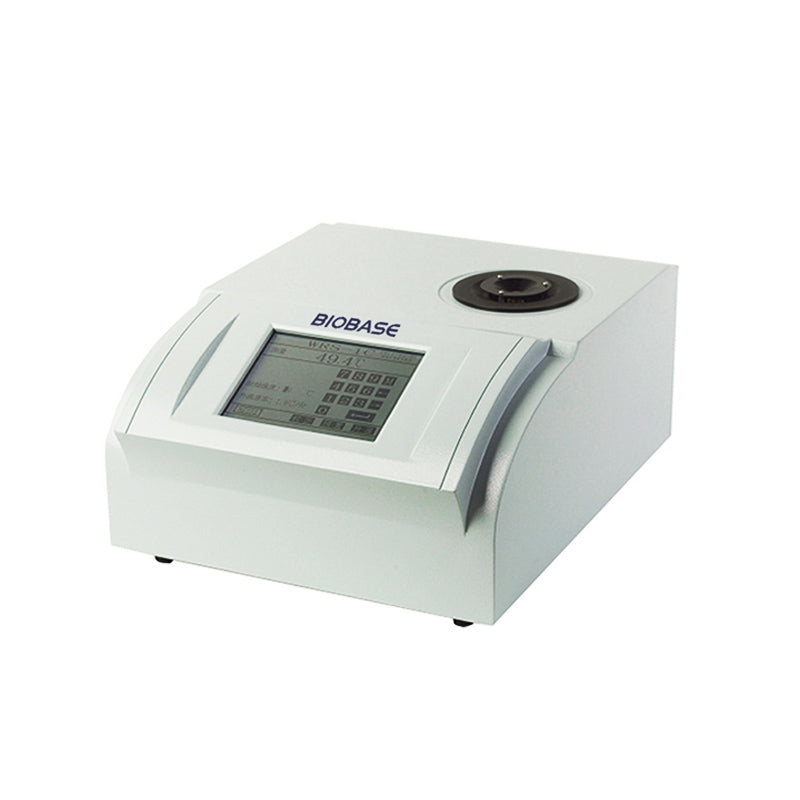

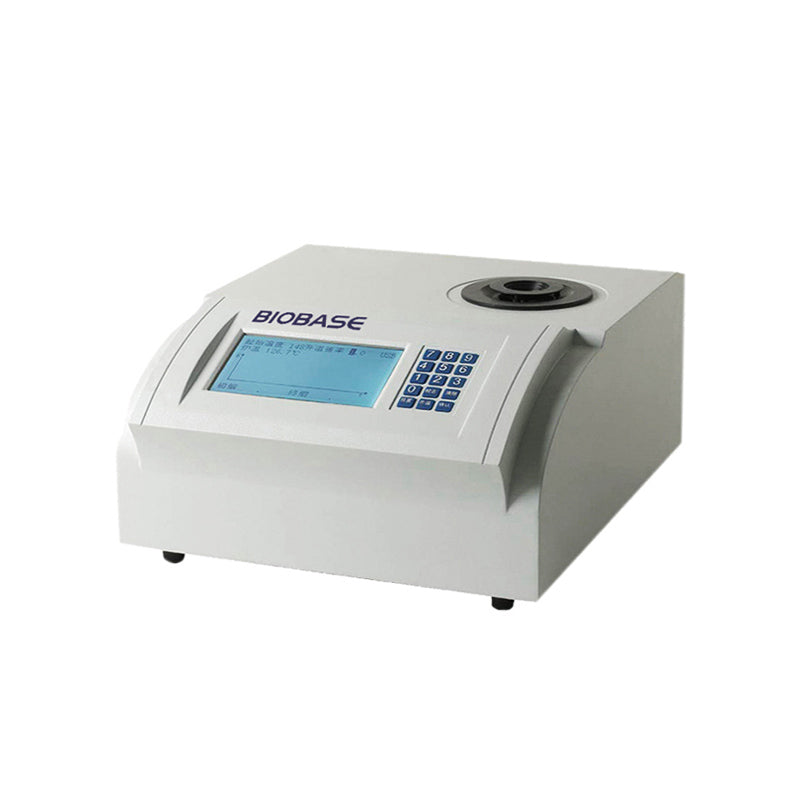

Digital Melting Point Apparatus
Features:
| Features for BMP-2C/1C: |
Features for BMP-1B: |
| * PID&PWM controller. |
* Photoelectric test. |
| * LCD touch screen for BMP-2C/BMP-1C. |
* LCD display. |
| * USB & RS232 interface. |
* RS232 interface. |
| * The melting curve can be recorded automatically. |
* Real time melting curve. |
| * It can calculate average value of initial and final.melting points automatically. |
|
Model:
| Model |
BMP-2C |
BMP-1C |
BMP-1B |
| Measuring Range |
RT~360°C |
RT〜400°C |
RT〜320°C |
| Resolution |
0.1°C |
| Linear heating-up Rate |
0.1°C~20°C/min |
0.2, 0.5, 1.0, 1.5, 2.0,
3.0, 4.0, 5.0°C/min
|
| Temperature Accuracy |
0.4°C (≤200°C), 0.7°C(>200°C) |
| Repeatability |
0.3°C |
| Capillary Size |
φ1.4mm(outside diameter),φ1.0mm(inside diameter), 80mm (height) |
| Sample Loading Height |
3~5mm |
>3mm |
| Data Storage |
1000 sets |
/ |
| Optional Accessories |
Printer |
| Power Supply |
AC110/220V±10%, 50/60HZ |
| External Size(W*D*H) |
410*290*110mm |
330*290*110mm |
330*290*110mm |
| Package Size(W*D*H) |
576*428*306mm |
492*428*305mm |
496*428*306mm |
| Gross Weight |
13kg |
11kg |
