I-SURGICAL

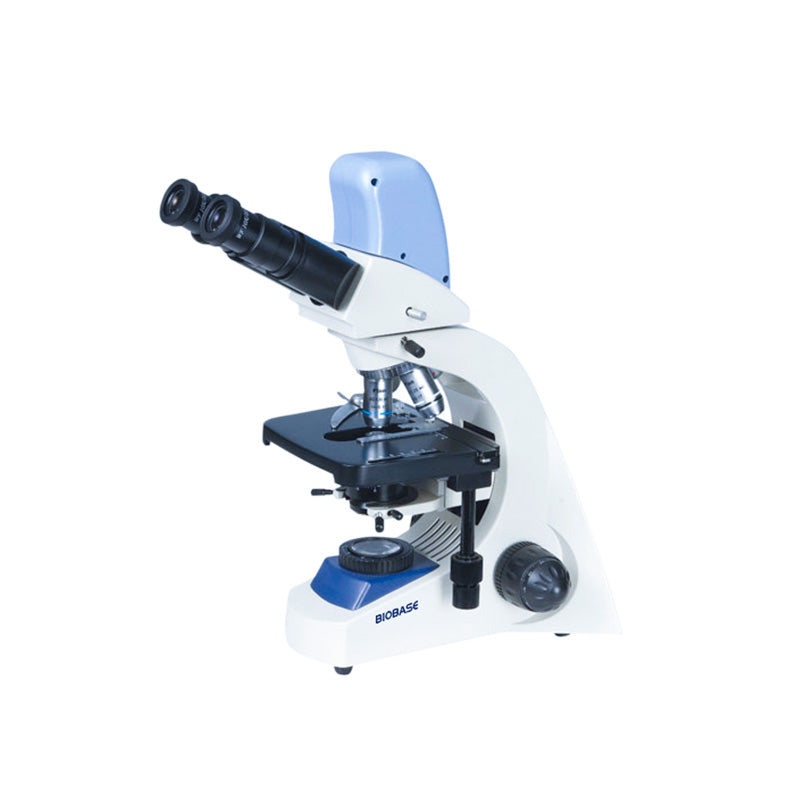

Digital Biological Microscope DM-18NS

Digital Biological Microscope DM-18NS

Medical Grade

Professional environments.

Trusted Brands

Recognized suppliers.

Expert Support

Assistance available.

Reliable Delivery

Dependable shipping.

Product Description

Digital Biological Microscope DM-18NS

Technical Parameters:

Model DM-18NS
View Head Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm
Eyepiece WF10X/22mm
Infinite Plan Achromatic Objective 4X, 10X, 40X(S), 100X(S,Oil)
Focusing Coaxial Coarse & Fine Adjustable System, Range 30mm, Fine Division 0.002mm
Stage Double Layers Mechanical Stage 180*150mm, Moving Range 75*50mm
Condenser Abbe NA1.25 centerable condenser with Iris Diaphragm & Filter
Illumination Halogen lamp 6V/20W, Kohler illumination, brightness adjustable
Filter Blue, yellow, green
Imaging System 300W CMOS
Power Supply AC85~265V, 50/60Hz
Package Size 380*300*580mm
Gross Weight 12kg



High-Resolution Imaging: Capture breathtaking images and videos of biological specimens at exceptionally high resolutions, revealing intricate details with unmatched clarity.
