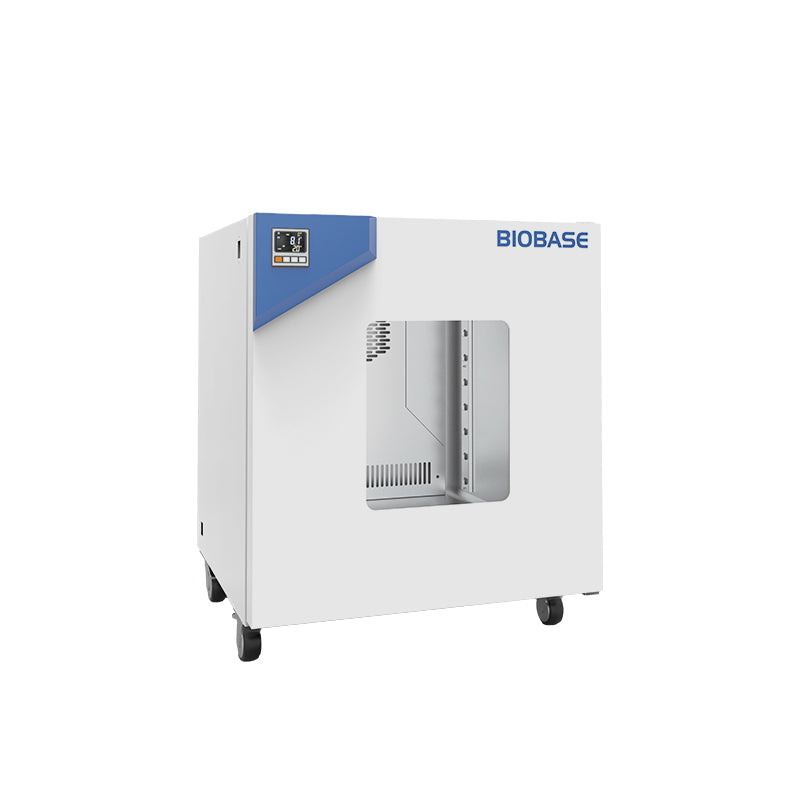

Constant-Temperature Incubator (Water Jacket) BJPX-HWJ163
Features
Machine Design
Three-side water jacket heating, forced convection, good temperature uniformity, perspective window design, convenient observation, more stable temperature.
Interior Design
The interior is made of 304 high-quality stainless steel with semi-circular four-corner design for easy cleaning
Anti-slip diaphragm design, spacing adjustment, to avoid the sample falling off when pulling the diaphragm
Easy to operate
LCD display, with temperature deviation calibration function, easy to understand and operate.
Safety Protection
Overtemperature alarm, can set the over temperature alarm temperature, when the temperature is too high, the switch is disconnected, to prevent the high temperature damage.
Standard/Optional Accessories
Standard configuration universal caster, more convenient to move.
Optional water pump, convenient and quick.
Optional toughened glass inner door, small temperature fluctuation.
Optional UV lamp can effectively disinfect the circulating air in the chamber and the water vapor floating bacteria in the humidification plate to prevent pollution during cell culture.
Technical Parameters
| Model |
BJPX-HWJ163 |
| Type |
Water Jacket |
| Capacity |
163L |
| Temperature Control Method |
PT100 |
| Temperature Range |
RT+5~60°C |
| Temperature Fluctuation |
≤±0.5°C |
| Temperature Uniformity |
≤±1.0°C |
| Display accuracy |
0.1°C |
| Ambient Temperature |
18~30°C |
| Timing Range |
0~9999min/h |
| Shelves |
2pcs |
| Power Consumption |
700W |
| Display |
LCD |
| Power Supply |
AC220V土10%, 50/60Hz(Standard); AC110+10%，60Hz(Optional) |
| Internal Size(mm) |
558*598*510 |
| External Size(mm) |
750*795*890 |
| Packing Size(mm) |
870*895*1060 |
| Net Weight(kg) |
120 |
| Gross Weight(kg) |
135 |
Applications
This product is used for breeding fermentation, biological culture and other scientific research. Widely used in scientific research, colleges and universities, biology, agriculture and various laboratories, etc.
