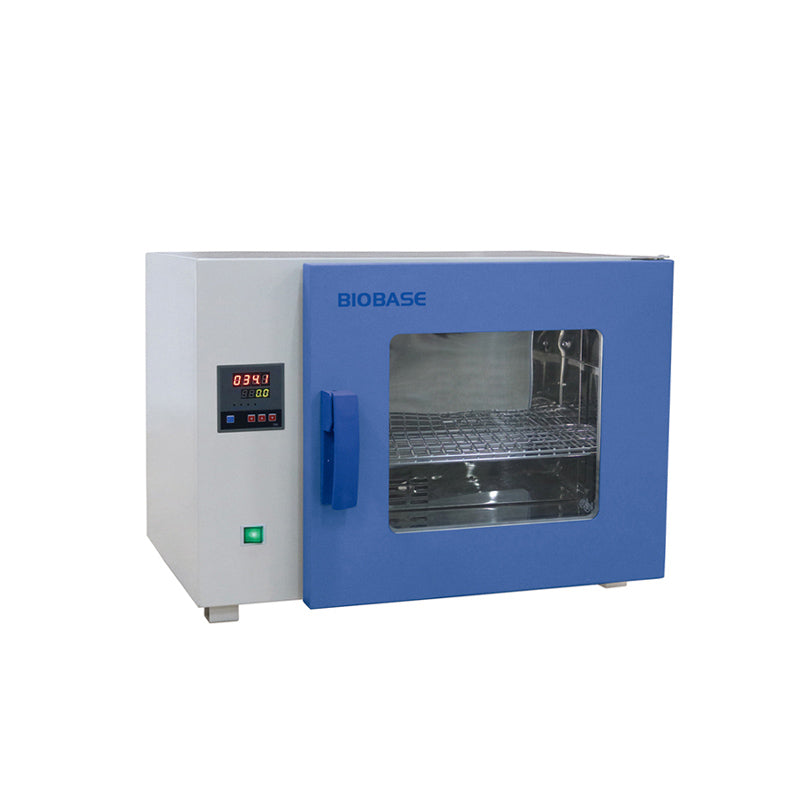

Constant-Temperature Drying Oven(BOV-TC)
Features:
* External material: cold-rolled steel with anti-bacteria powder coating.
* Stainless steel inner chamber, round angle structure, adjustable shelves.
* PID control with LED display, soft touch operational key, timing function and over-temperature protection.
* Door with double-layer tempered glass observation window, adjustable air-tight buckle lock, and silicon rubber seal, which provide good seal ability and efficiently prevent heat loss.
Model:
| Model |
BOV-T30C |
BOV-T70C |
BOV-T140C |
BOV-T270C |
| Capacity |
43L |
70L |
137L |
270L |
| Temp. Range |
50~200℃ |
| Temp. Fluctuation |
±1℃ |
| Ambient Temp. |
5~40℃ |
| Timing Range |
1~9999min |
| Shelves No. |
2 pcs |
3 pcs |
| Power Consumption |
850W |
1000W |
2000W |
3000W |
| Power Supply |
Standard: 220V±10%, 50/60Hz; Optional: 110V±10%, 60Hz |
| Internal Size(W*D*H)mm |
350*350*350 |
400*390*450 |
500*500*550 |
600*600*750 |
| External Size(W*D*H)mm |
635*615*552 |
680*653*631 |
830*665*772 |
930*765*972 |
| Package Size(W*D*H)mm |
780*750*700 |
870*700*800 |
960*780*950 |
1060*880*1150 |
| Gross Weight(kg) |
60 |
70 |
105 |
145 |
Features:
* External material: cold-rolled steel with anti-bacteria powder coating.
* Stainless steel inner chamber, round angle structure, adjustable shelves.
* PID control with LED display, soft touch operational key, timing function and over-temperature protection.
* Door with double-layer tempered glass observation window, adjustable air-tight buckle lock, and silicon rubber seal, which provide good seal ability and efficiently prevent heat loss.
