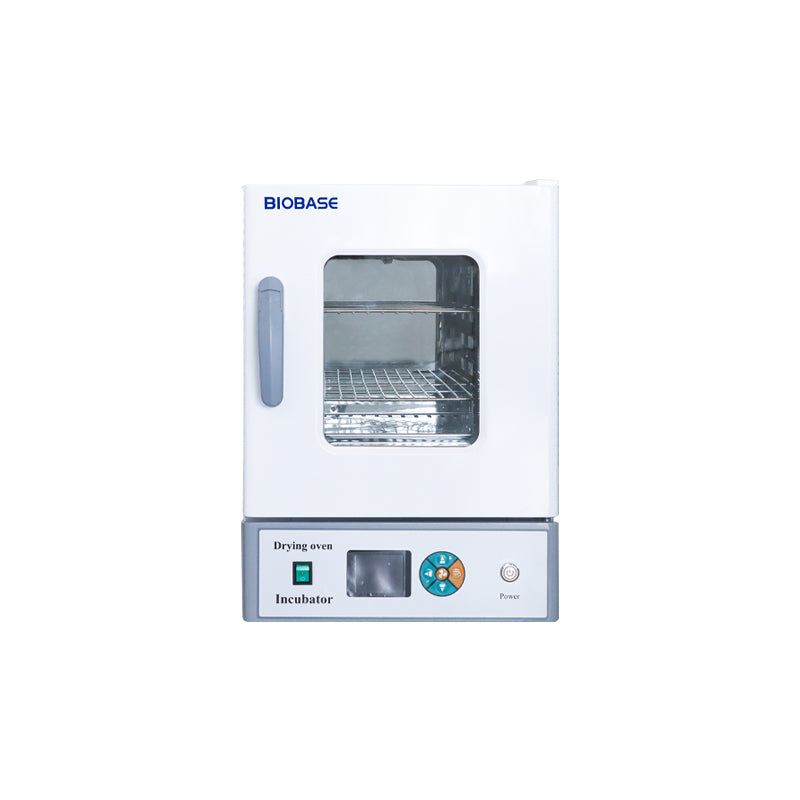

Drying Oven/Incubator (Dual Purpose) BOV-D20P BOV-D45P BOV-D72P BOV-D125P BOV-D210P
Features
1. The inner chamber is made of 304 mirror stainless steel.
2. Intelligent liquid crystal temperature control instrument, with functions of timing, over temperature alarm indication, temperature deviation correction, temperature control self-tuning, automatic speed regulation of fan, door control (once open the door, automatically stop heating, effectively prevent the machine over temperature) etc.
3. Thickened double layer toughened glass observation window, easy to observe the changes of the items in the chamber.
4. Equipped with fan speed control switch, users can choose to "adjust the wind speed manually" or directly choose "automatic speed regulation of fan" according to their needs.
5. Precision: high precision microcomputer LCD temperature control instrument, temperature control accurate and reliable.
6. Rapid: rapid temperature rise, forced convection, dry hot air pass directly through the heated object, drying and disinfection time is significantly shortened.
7. Safety: once the temperature exceeds the limit, the machine will automatically stop heating to ensure the safety of personnel and equipment. Convenience: can be set through the instrument to achieve three gears of fan speed adjustable and timing control, shelves can be moved to facilitate cleaning in the box.
8. Optional of over-temperature protector, timer, programmable control instrument, printer, 485 interface and other functions.
Technical Parameters
| Model |
BOV-D20P |
BOV-D45P |
BOV-D72P |
BOV-D125P |
BOV-D210P |
| Capacity |
20L |
45L |
72L |
125L |
210L |
| Power |
220V/50HZ |
| Temp. Control Range |
Incubator: RT+5~80℃ Drying Oven: 80~300℃ |
| Temperature Resolution |
0.1℃ |
| Temperature Fluctuation |
Incubator: ±0.5℃ Drying Oven: ±1℃ |
| Timing Range |
0~9999min |
| Power |
600W |
1000W |
1500W |
2000W |
3000W |
| Power Supply |
Standard: 220V 50/60Hz; optional: 110V 50/60Hz |
| Chamber Size
(D*W*H) mm
|
260*280*280 |
350*360*350 |
400*400*450 |
450*500*550 |
500*600*700 |
| External Size
(D*W*H) mm
|
450*420*590 |
550*495*700 |
590*535*800 |
650*635*1040 |
705*735*1190 |
| Packing Size
(D*W*H) mm
|
510*490*690 |
600*550*790 |
650*600*880 |
720*700*1130 |
790*750*1280 |
| Net Weight/Gross Weight (kg) |
24/27 |
38/46 |
47/55 |
71/81 |
85/97 |
Thickened double layer toughened glass observation window, easy to observe the changes of the items in the chamber.
