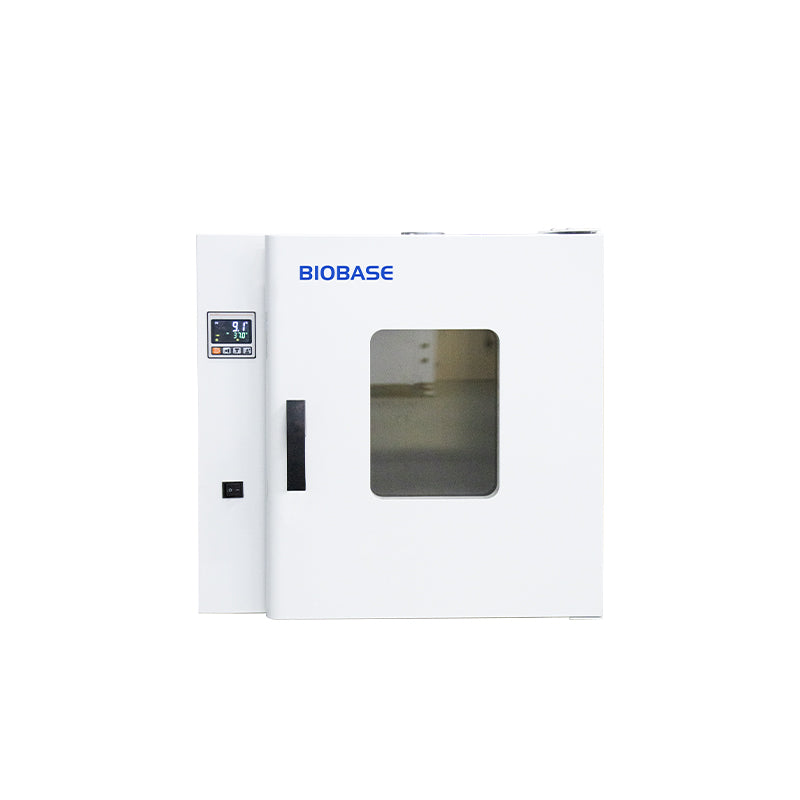

Constant Temperature Drying Oven BJPX-HDO Series
Features
1. LCD liquid crystal temperature display, with temperature deviation calibration function.
2. Over-temperature alarm and automatic fault detection alarm function.
3. Precisely control the heating time, the timing error is ≤1%.
4. The four corners of the inner cavity are designed with a semi-circular arc structure.
5. The heating device is placed at the bottom, and a new bottom wind plate structure is adopted to facilitate the cleaning of the cavity.
Technical Parameters
| Model |
BJPX-HDO43 |
BJPX-HDO55 |
BJPX-HDO72 |
BJPX-HDO138 |
BJPX-HDO270 |
| Capacity |
43L |
55L |
72L |
138L |
270L |
| Heating Method |
Bottom heating, natural convection |
| Temp. Range |
RT+10℃-250℃ |
| Display |
LCD display |
| Temp. Uniformity |
≤Max temp.±3％ |
| Temp. Precision |
0.1℃ |
| Inner Size(mm) |
350*350*350 |
370*370*459 |
400*390*450 |
500*500*550 |
600*600*750 |
| External Size(mm) |
579*474*565 |
596*500*666 |
614*525*659 |
724*625*759 |
824*763*954 |
| Shelves NO. |
2 |
2 |
2 |
3 |
3 |
| Power Supply |
Standard: 220V 50/60Hz; optional: 110V 50/60Hz |
| Packing Size(mm) |
640*505*595 |
656*530*696 |
674*555*689 |
784*655*789 |
884*793*984 |
| Gross Weight(kg) |
35 |
40 |
50 |
70 |
90 |
LCD liquid crystal temperature display, with temperature deviation calibration function.
