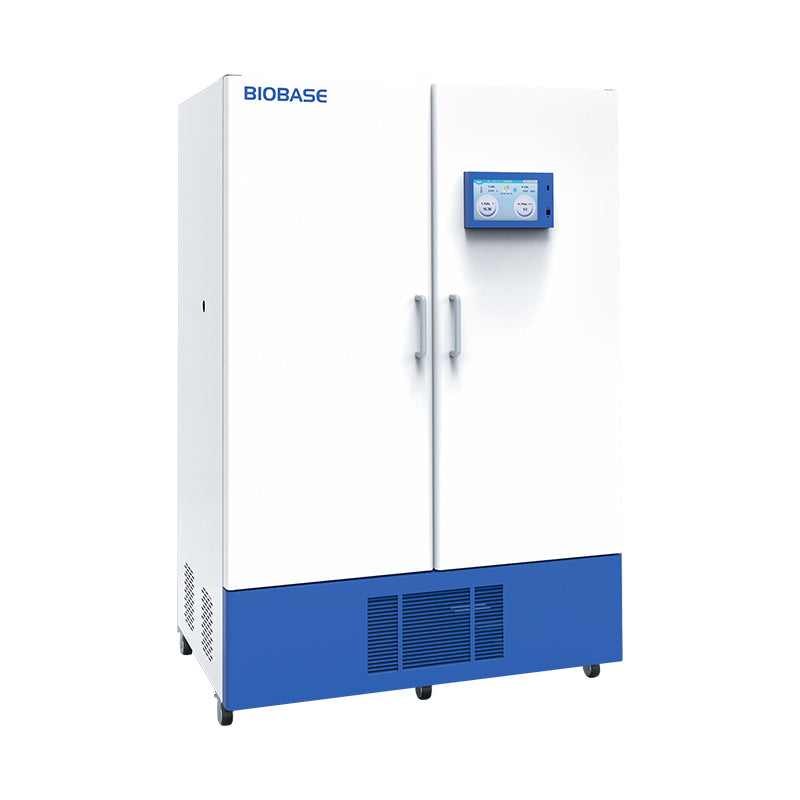

Constant Temperature and Humidity Incubator BJPX-HT1000(PC)
Features:
* With 7-inch color LCD touch screen to monitor the temperature and humidity curve in real time, it has menu-type interface, easy to observe and operate.
* One button for checking running history.
* Equipped with microprocessor temperature control system， overheat protector and PT100 are standard for precise and safe temperature control.
* Equipped with independent PID humidity control system, HIH4000 is standard for precise humidity control.
* Fixed value operation and segmented operation are available, timing range of 1~5999min.
* Three level operation interface permissions (administrator, experimenter, operator), to prevent unrelated personnel from interrupting experiment or equipment failure.
* Equipped with a PC interface, remote operation monitoring can be carried out, and mobile phone APP control is optional.
* It can be adjusted between the balance type and the start-stop type, the upper and lower parts of the evaporator automatically switch for defrosting, no need to close down for defrosting.
* The lamp is at the top of the box, and the lighting time can be set regularly.
* With over-temperature alarm, low-temperature warning, water level alarm and alarm for opening the door too long.
Technical Parameters:
| Model |
BJPX-HT1000(PC) |
| Capacity |
1000L |
| Convection Mode |
Forced convection |
| Temp. Range |
5～60℃ |
| Temp. Fluctuation |
±2℃ |
| Temp. Uniformity |
0.1℃ |
| Humidity Range |
50～90％RH |
| Humidity Fluctuation |
±5～±8%RH |
| Humidification Method |
Built-in humidification system |
| Heating/Refrigeration Method |
Stainless steel electric heater/closed CFC-free compression system |
| Time Setting |
1~5999min |
| Refrigerant |
R134a or R404 |
| Lamp Power |
8W |
| Consumption |
1200~1800W |
| Power Supply |
220V±10%；50Hz |
| Accessory |
U disk（standard) for 1 million data storage, PC interface(standard) for remote control, BOD socket(optional), shelf*2 (standard) |
| Internal Size(W*D*H) |
1200*600*1400mm |
| External Size(W*D*H) |
1343*1046*1985mm |
| Package Size(W*D*H) |
1420*1070*2150mm |
| Net Weight |
220kg |
| Gross Weight |
300kg |
Introduction:
The constant temperature and humidity box has a precise temperature and humidity control system. It provides various environmental simulation conditions required for industrial research and biotechnology testing. Therefore, it can be widely used in sterile tests and stability inspections for pharmaceuticals, textiles, and food processing. As well as testing of raw material properties, product packaging, and product life of industrial products.
