Closed-Cup Flash Point Tester
Features:

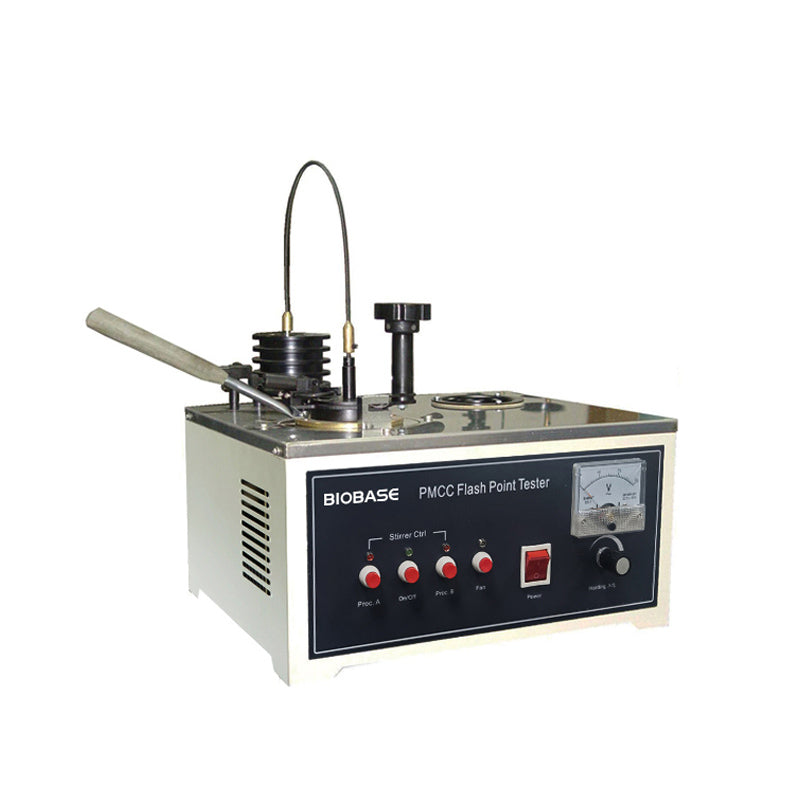

BK-FP261:
* The heating power is adjustable and shown visually by voltmeter.
* The structure is designed small and exquisite with stainless-steel table board.

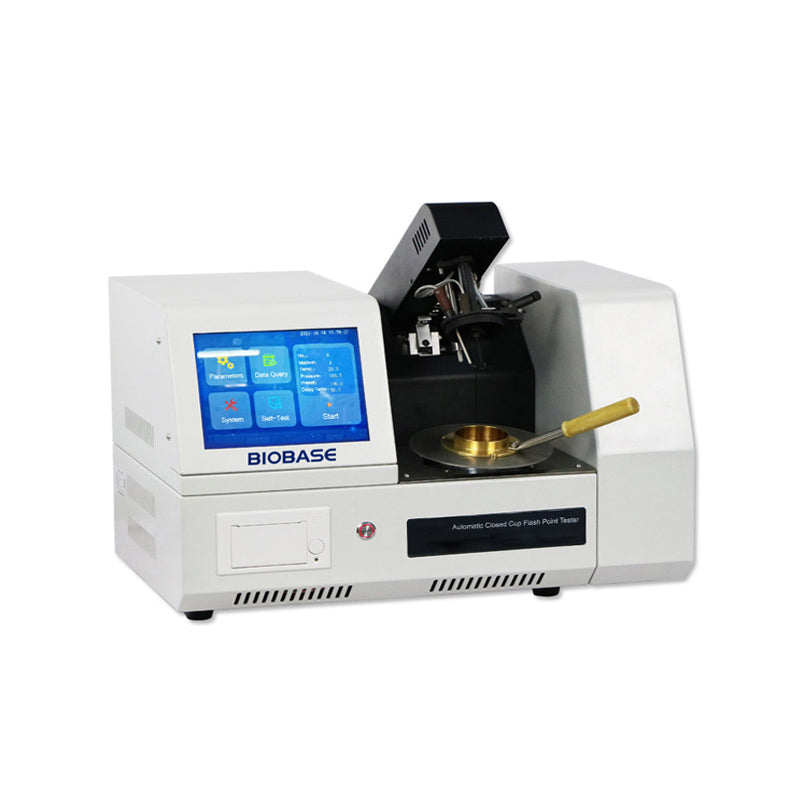

BK-FP261D:
* 8-inch IPS high-definition capacitive screen, the test data and parameters are displayed by curve in real time.
* Equipped with Bluetooth interface. The user can query test data anytime.
* Temperature rise, cover opening, ignition, detection and printing data are completed automatically, and the test arm rises and falls automatically.
* Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.
* Electronic ignition, gas flame, automatic air cooling at the end of the test.
Technical Parameters:
| Model |
BK-FP261 |
BK-FP261D |
| Ambient Temperature |
15~35°C |
| Relative Humidity |
≤85% |
| Flash Point Determination |
Mercury-in-glass thermometer. Specifications are as below: Scale -5°C~110°C, division 0.5°C Scale 20°C~150°C, division 1°C Scale 90°C~370°C, division 2°C |
Range: Ambient to 230°C Repeatability:≤3°C Reproducibility: ≤4°C Accuracy: 0.1 °C |
| Oil Cup |
Inner diameter: 50.7mm~50.8mm.
Depth: 55.7mm~56.0mm
The scribed line depth of capacity of testing oil: 33.9mm〜34.3mm. Capacity of testing oikabout 70ml
|
| Stirring Rate |
Procedure A: (90~120)RPM, Procedure B: (250±10)RPM |
| Igniting Device |
Igniting source: gas(or other civilian fuels, the same below) |
Electric ignition.
Diameter of igniter: 0.7mm~0.8mm
|
| Heating Device |
The heating power is continuously adjustable from 0 Wto 600W. |
| Heating Rate |
(1~12)°C/min: Controllable and adjustable |
Procedure A: (5-6)°C/min, Procedure B: (1~1.5)°C/min, Procedure C:(3±0.5) °C/min |
| Consumption |
M650W |
≤600W |
| Power Supply |
AC220V±10%, 50Hz |
| Dimension(W*D*H) |
370*320*300mm |
510*320*330mm |
| Package Size(W*D*H) |
650*450*360mm |
690*500*595mm |
| Gross Weight |
19kg |
34kg |
