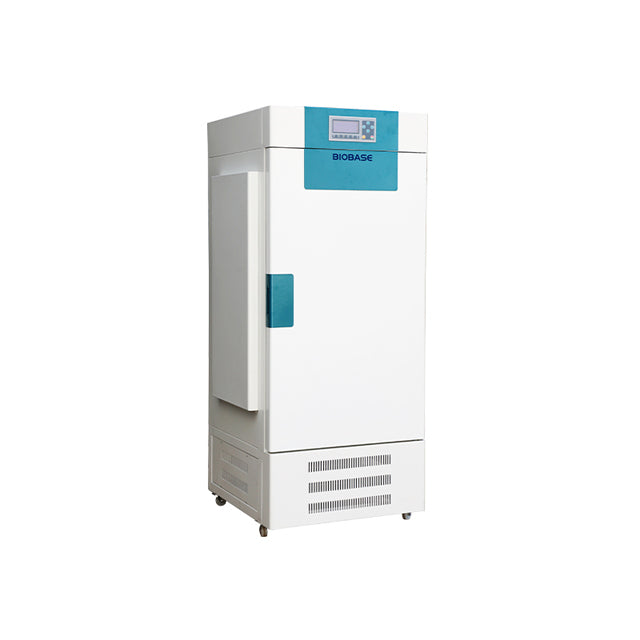

Climate Incubator BJPX-A Series
Features:
* LCD display.
* Unique air circulation system ensures uniform distribution of air flow in the operating chamber without causing any harm to the seedlings.
* Seting of 30 sections of program .It has parameter ettings for automatic storage in case ofpower failure, and the original program setting will run after power resumption.
* Separate alarming system for temperature limit enables automatic termination of system operation in case temperature exceeding thelimit.(optional)
* Two sets of compressors are intelligently converted to ensure long-term operation of the test equipment .(optional)
* It can realize CO₂ concentration monitoring and control .(optional)
* RS485 interface and built-in printer. (optional, only E series)
Technical Parameters:
| Model |
BJPX-A160B/E |
BJPX-A250B/E |
BJPX-A300B/E |
BJPX-A400B/E |
| Capacity |
160L |
250L |
300L |
400L |
| Lighting Type |
Two-sided lighting, three-sided lighting (optional). |
| Temp.Control Range |
With illumination: 10~50 °C, Without illumination: 5~50 °C |
| Temp. Fluctuation |
±1°C |
| Temp.Resolution |
0.1°C |
| Humidity Control Range |
50~95%RH |
| Humidity Deviation |
±5~7%RH |
| Lighting Illumination |
Standard: General lighting 0-6000LX, adjustable in 6 steps.
Optional: Strong lighting 0~12000LX or 20000LX or 25000LX or 30000LX , adjustable in 6 steps or stepless adjustment.
|
| Timing Range |
1-9999min |
| Shelves |
2pcs/adjustable |
3pcs/adjustable |
4pcs/adjustable |
| Consumption |
1500W |
2000W |
2500W |
2800W |
| Power Supply |
AC220V±10%, 50/60Hz(Standard)
AC110±10%, 60Hz(Optional)
|
| Internal Size (W*D*H)mm |
500*380*790
498*450*794(E)
|
530*480*1000
528*480*1000(E)
|
560*500*1200
564*500*1050(E)
|
600*550*1250
600*600*1100(E)
|
| External Size(W*D*H)mm |
680*590*1250
722*665*1440(E)
|
710*700*1450
752*695*1650(E)
|
746*715*1650
788*715*1690(E)
|
789*765*1700
824*865*1750(E)
|
| Packing Size(W*D*H)mm |
780*690*1350
822*765*1540(E)
|
810*800*1550
852*795*1750(E)
|
846*515*1750
888*815*1790(E)
|
889*865*1800
924*965*1850(E)
|
| Gross Weight(kg) |
70 |
90 |
130 |
150 |
