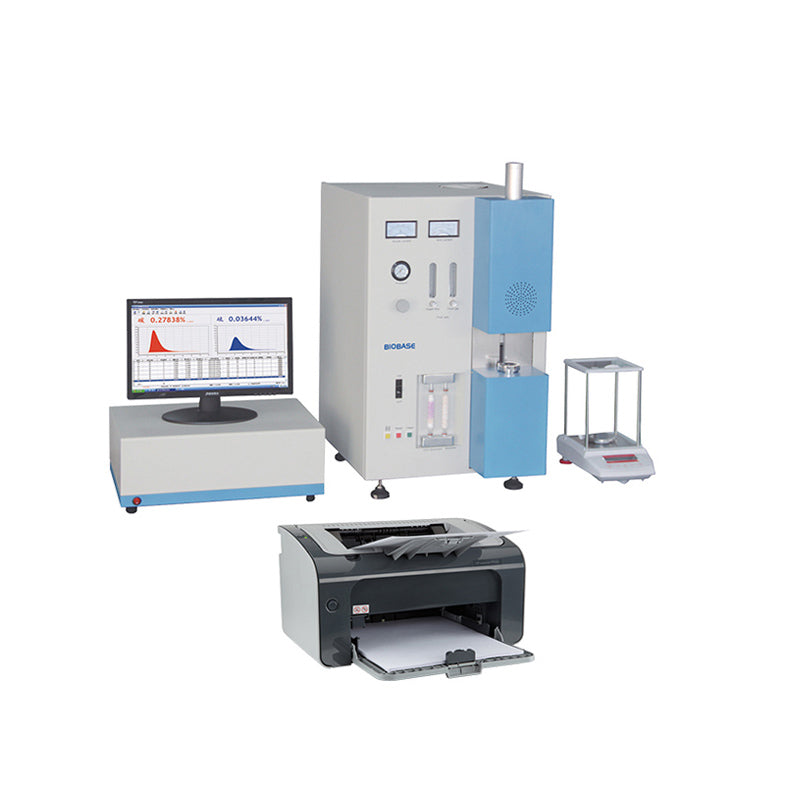

Carbon & Sulfur Analyzer
Technical Parameters:
| Working Principle |

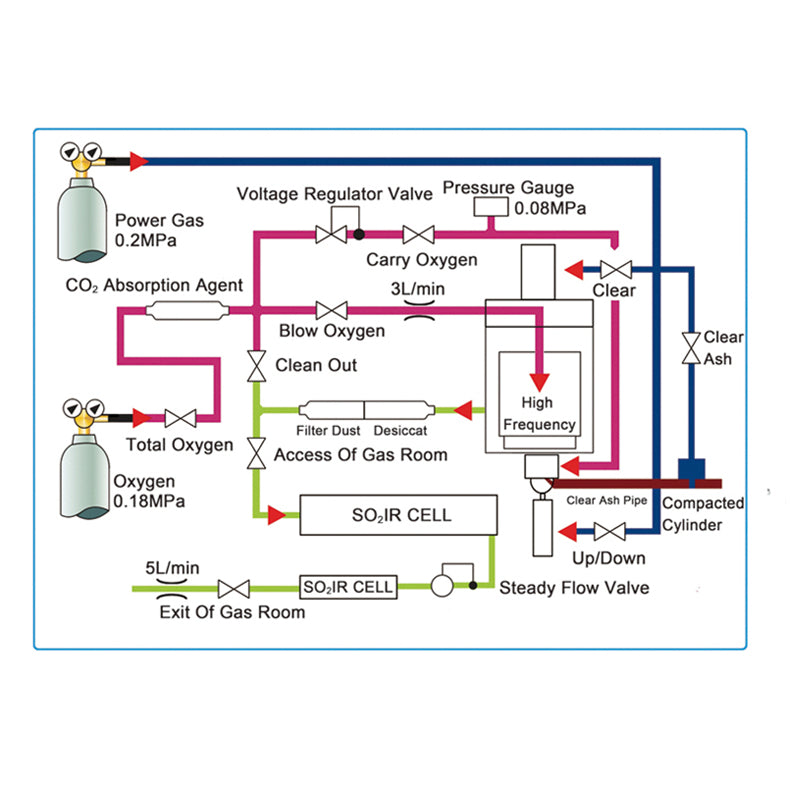

High-frequency inductive combustion and infrared absorption system |
| Sample Weight (Solid steel) |
Standard 0.5g |
| Accuracy |
C/S: 0.1 ppm |
| Analysis Time |
25-60s adjustable (normally: 35s) |
| Working Cycle |
24 hours |
The difference between BK-CSA5 and BK-CSA6:
| Model |
BK-CSA5 |
BK-CSA6 |
| Appearance |

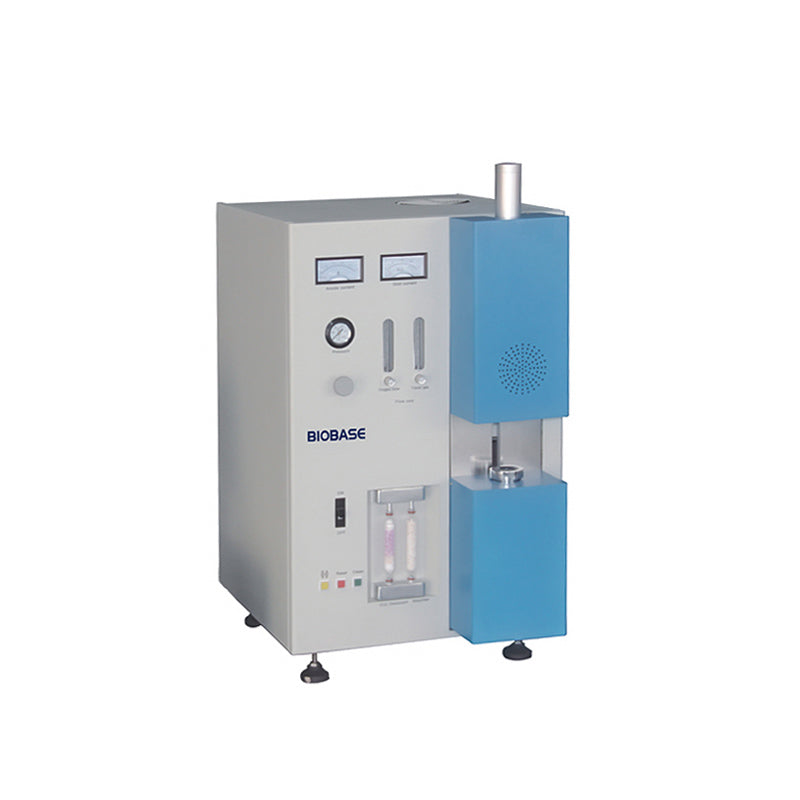

Desktop detector, with desktop high-frequency furnace, save space |

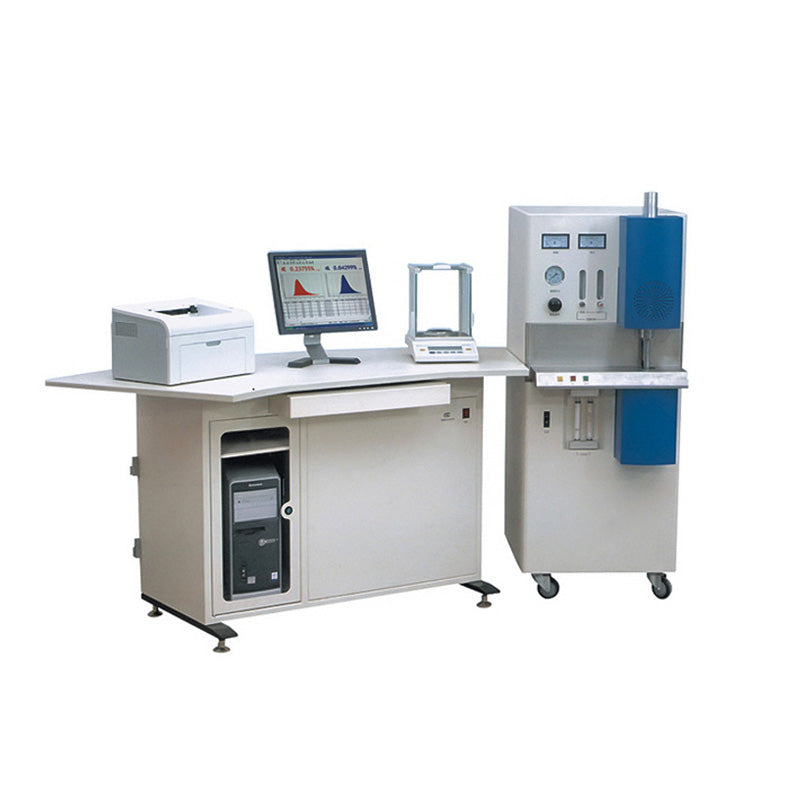

Separate work station, with vertical high-frequency furnace |
| Analysis Range |
C: 0.0005%-6.0000%
(can be extended to 99.999%)
S: 0.0005%-0.5000%
(can be extended to 99.999%)
|
C: 0.0001 %-10.0000%
(can be extended to 99.999%)
S: 0.0001 %-3.50000%
(can be extended to 99.999%)
|
| Analysis Pool |
2 pools |
2 pools (optional 4 pools) |
| Consumption |
2.2KW |
2.5KW |
| Power Supply |
AC220V±10%, 50/60HZ |
| Package Size(W*D*H) |
1380*760*980mm |
1670*750*960mm, 750*580*1430mm |
| Gross Weight |
193kg |
150kg, 180kg |
| Standard Accessories |
Main unit, high frequency automatic inductive combustion furnace, electric balance |
| 1000 times effective analysis of spare parts |
